Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205

Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205

ASF-6-C12

843951008554

Aura Solar Attic Fan

Price: $115.00 USD

$115.00 USD
Sale Sold out
Tandem Solar Panel Options:
An additional solar panel is available for all solar fans

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$11

  • Plain Black STANDARD+$11

  • Pine Green STANDARD RAL 6028+$11

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$11

  • Terra Brown STANDARD RAL 8028+$11

-- Please Select --
Color

View full details
Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205

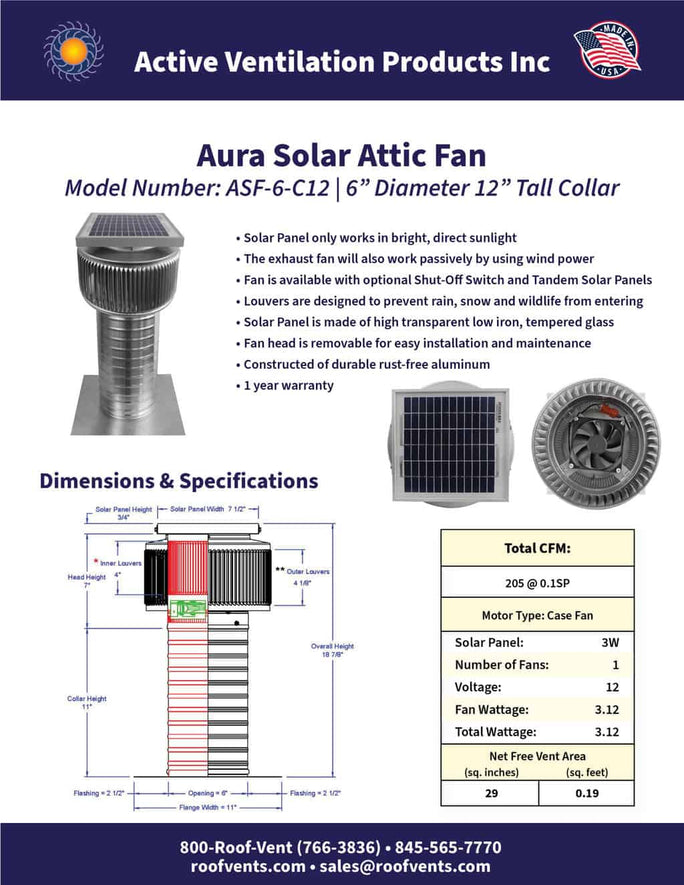

Drawings
Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205
Drawings
Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205
Drawings
Model ASF-6-C12 | Aura Solar Fan | 6" Diameter | 12" Tall Collar | CFM: 205 Model ASF-6-C12 | Aura Solar Fan | 6

6-inch Aura Solar Attic Fan | Model ASF-6-C12 | 205 CFM

The 6-inch Aura Solar Attic Fan is 6 inches in diameter and has a 12-inch tall collar. The model ASF-6-C12 exhausts air at 205 CFM. All 6-inch solar attic fans have a standard 12" x 12" square flange.

Benefits:

  • Keeps your home comfortable and energy-efficient
  • The fan runs virtually silent at 205 cfm
  • Fan gets electricity from direct sunlight
  • Works passively with the wind when there is no sunlight
  • Inner louvers prevent insects and animals from entering the vent
  • Round aerodynamic design withstands harsh weather

Installation:

Exhaust fans with a collar height of 12 inches or greater are for low slope or flat roof ventilation. This solar fan can be installed in all climate zones on a 0/12 to 5/12 pitch roof.

The Aura Solar Attic Fan removes heat during the summer and moisture during the winter to provide ventilation all year. Keeping the attic dry during the winter preserves insulation and prevents ice dams.

How it works:

The Aura Solar Attic Fan uses direct sunlight to power its fan. The panel above needs bright, uninterrupted sunlight, preferably on a south-facing roof. Never point the solar panel in a northern direction, or it will not work.

The solar attic fan exhausts air continuously, even without the sun (cloudy days and evenings). It works passively due to the Venturi Effect. When the wind blows against the outer louvers, this creates a vortex of air within the head, creating an upward draft that allows air to flow out of the vent.

The 1/8-inch louvers prevent rain, snow, insects, and animals from entering inside the fan.

For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pending

Colors

Pending

Pending

Pending

Pending

Calculate number of Model  ASF-6-C12  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
