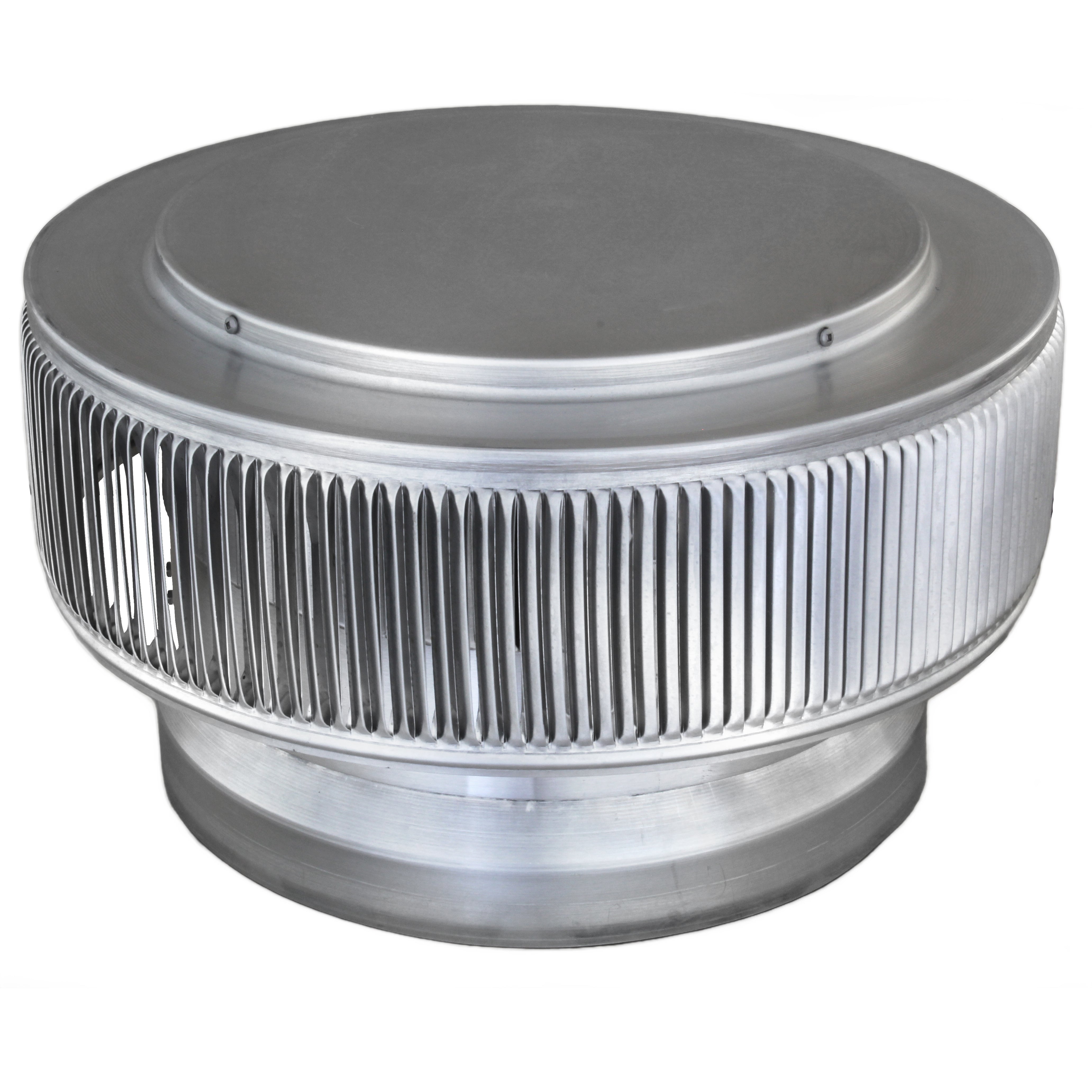

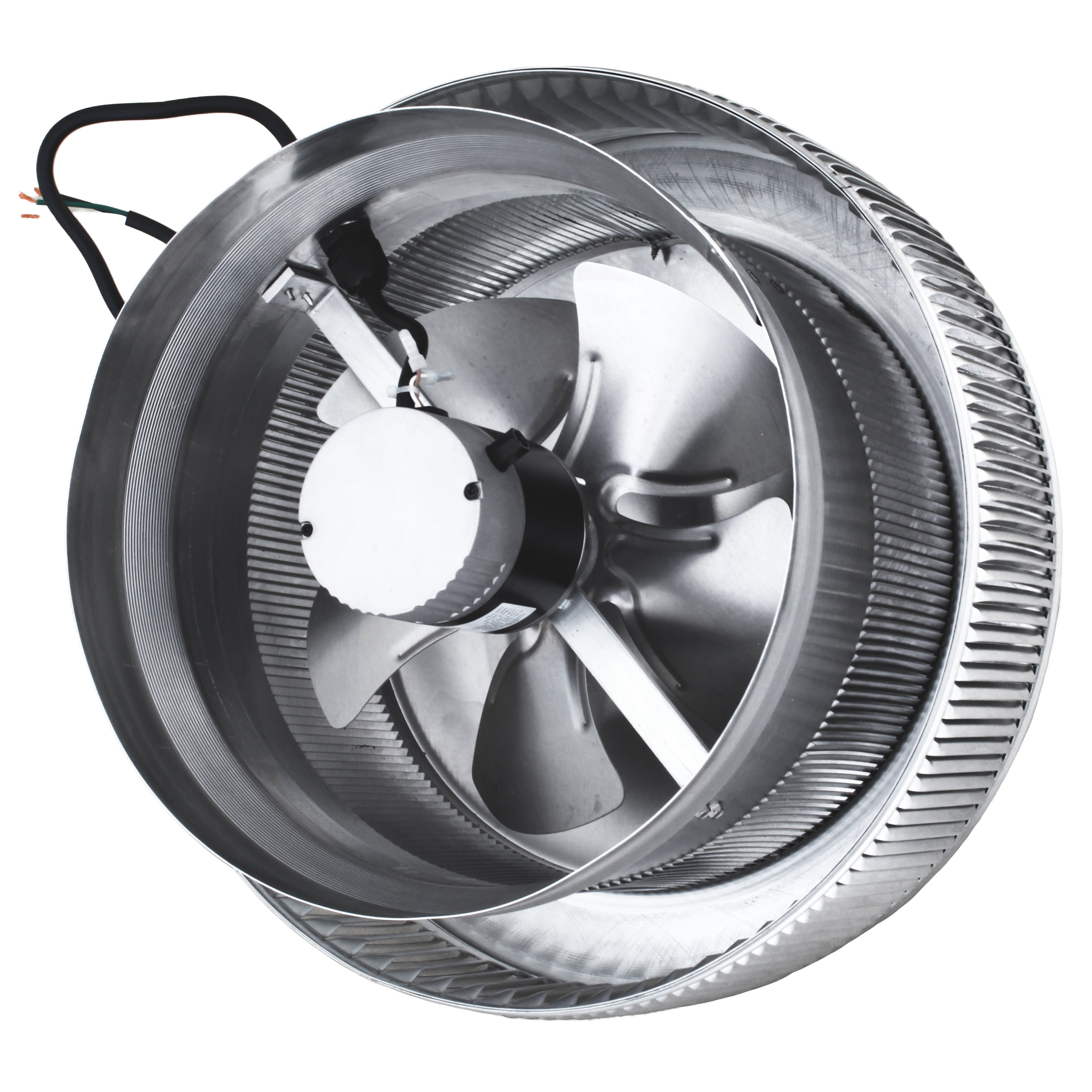

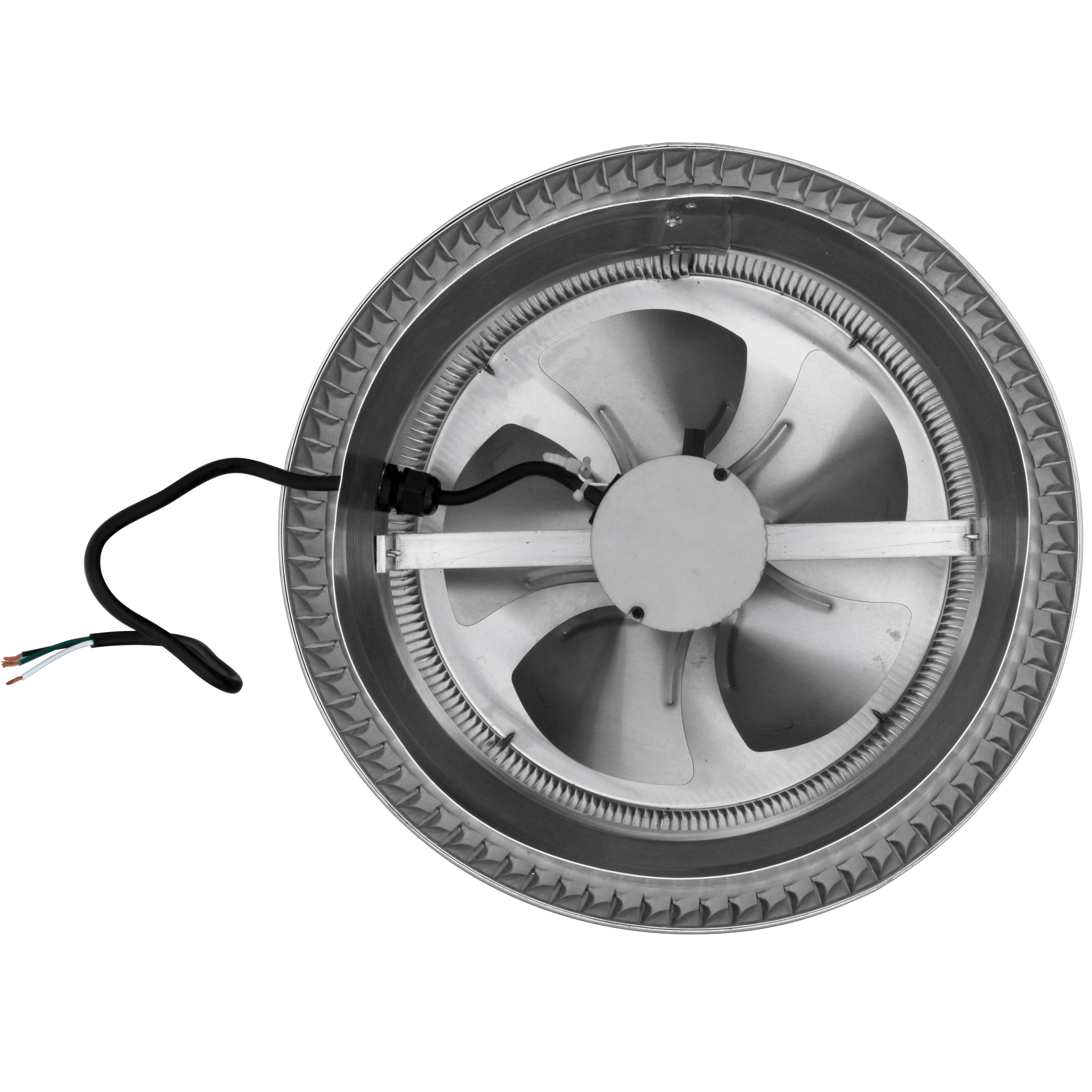

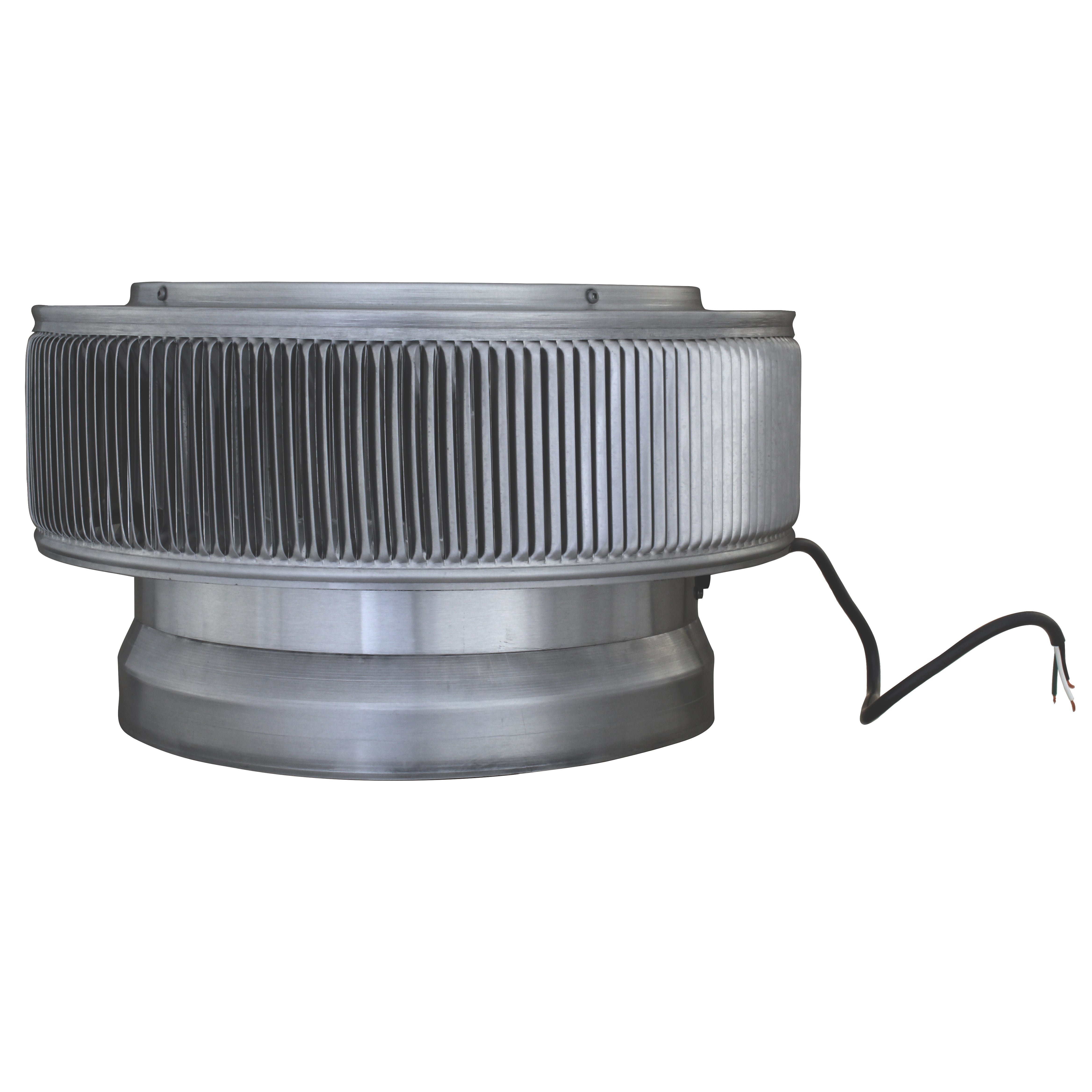

12" Aura Electric PVC Vent Fan for Schedule 40 & 80 PVC Pipe | Model AF-12-PVC | Up to 800 CFM
The Aura AF-12-PVC is a 12-inch electric PVC vent fan designed to fit 12" inner diameter Schedule 40 and Schedule 80 PVC pipe applications. This high-performance exhaust fan delivers airflow ranging from 100–800 CFM with its variable speed EC motor.
Constructed from durable all-aluminum materials, this weather-resistant vent fan is built for long-lasting performance in demanding ventilation applications.
Ideal Applications
- Portable restroom ventilation
- Portable toilet and sanitation venting
- Attic exhaust ventilation
- Utility enclosure ventilation
- Equipment room exhaust
- General air exhaust applications
Features
- Variable speed EC motor
- Airflow range from 100–800 CFM
- Durable all-aluminum construction
- Fits 12" inner diameter PVC pipe
- Compatible with Schedule 40 & 80 PVC pipe
- Weather-resistant design
- Continuous passive ventilation, even when power is off

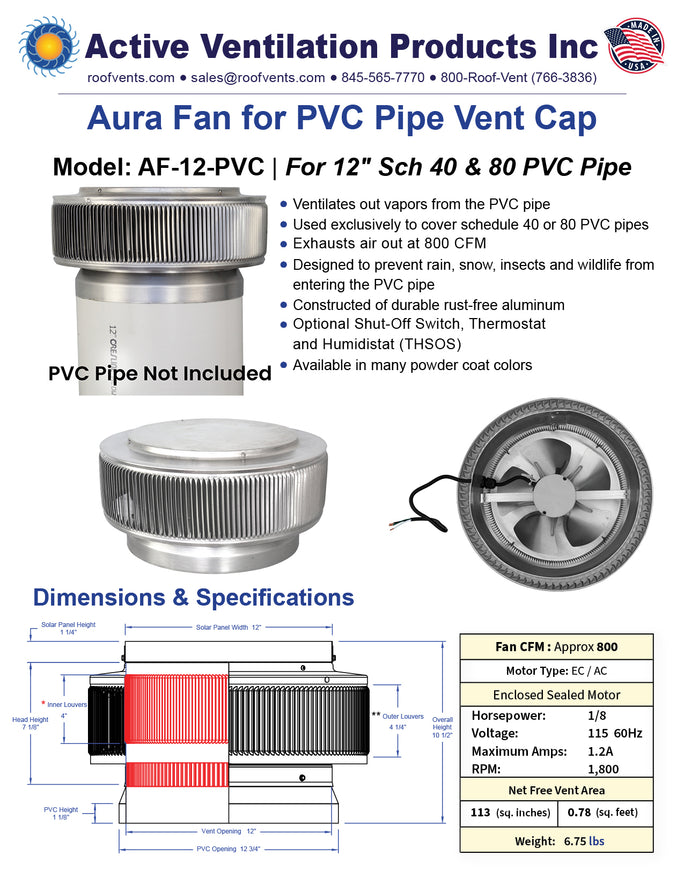

Motor Specifications
- Motor Type: EC / AC Enclosed Sealed Motor
- Horsepower: 1/10 HP
- Maximum Airflow: 800 CFM
Passive Ventilation Performance
The Aura PVC Vent Fan continues to ventilate passively even when the motor is not running. Its louvered design utilizes the Venturi Effect to create upward airflow when wind passes across the vent, helping exhaust air continuously without power.
How It Works
When powered, the fan actively exhausts air at up to 800 CFM. When the motor is off, the vent still allows natural airflow and passive exhaust ventilation.
Installation
Designed to mount directly onto 12" inner diameter PVC pipe systems.
