Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA

Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA

PV-14-C12

843951008158

The Pop Vent A Roof Louver Air Intake Vent

Price: $74.00 USD

$74.00 USD
Sale Sold out

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$20

  • Plain Black STANDARD+$20

  • Pine Green STANDARD RAL 6028+$20

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$20

  • Terra Brown STANDARD RAL 8028+$20

-- Please Select --
Color

View full details
Pop Vent Air Intake Roof Louver PV-14-C2-side-Featured-Image
Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA

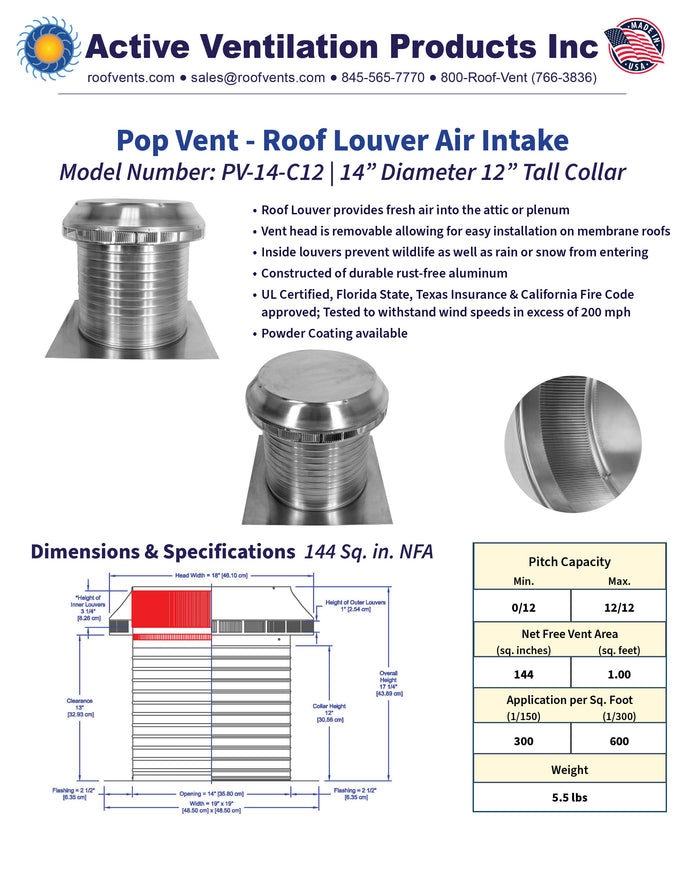

Drawings
Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA
Drawings
Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA
Drawings
Model PV-14-C12 | Pop Vent | 14" Diameter | 12" Tall Collar | Flat Falng | 144 Sq. In. NFA Model PV-14-C12 | Pop Vent | 14

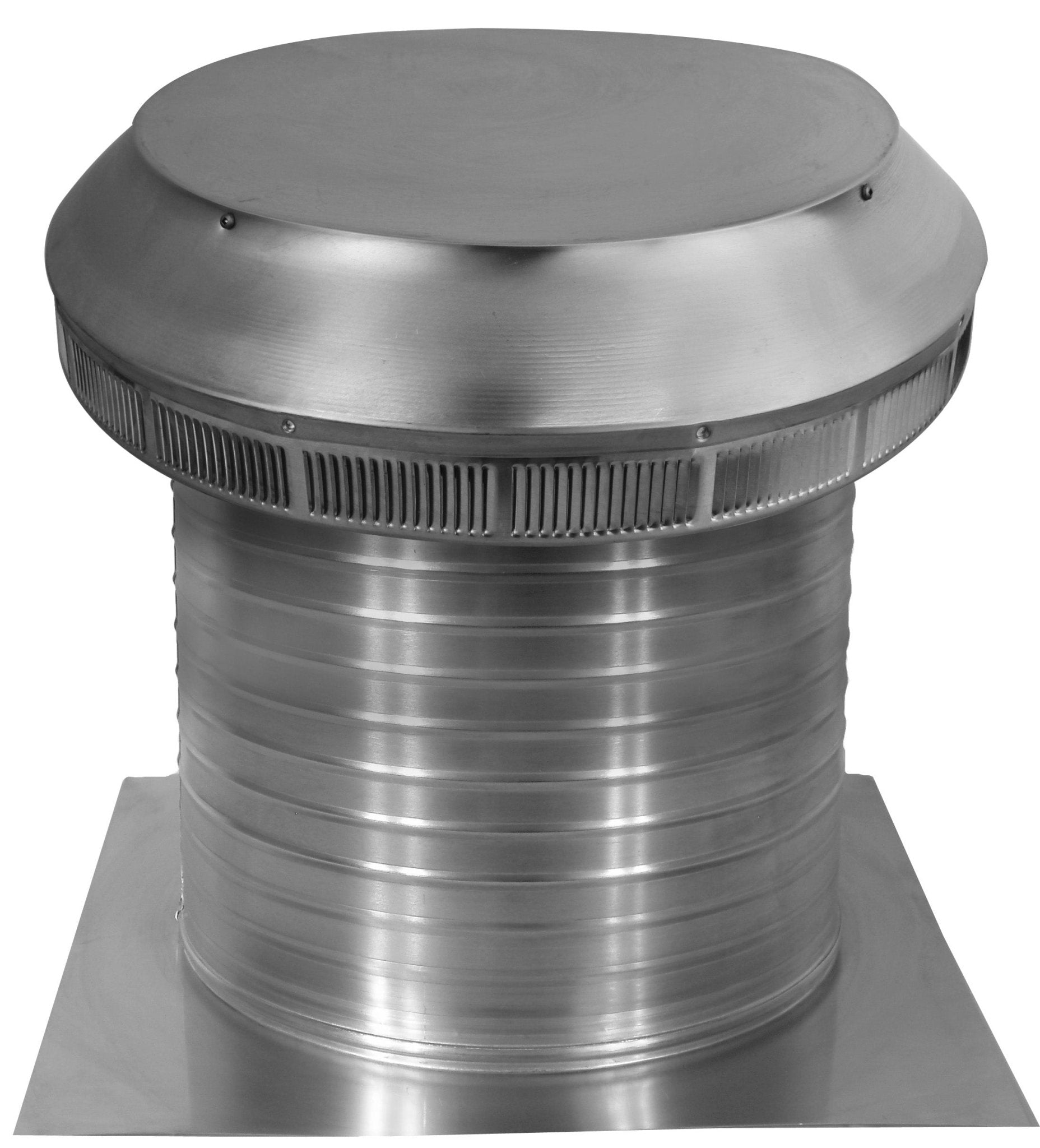

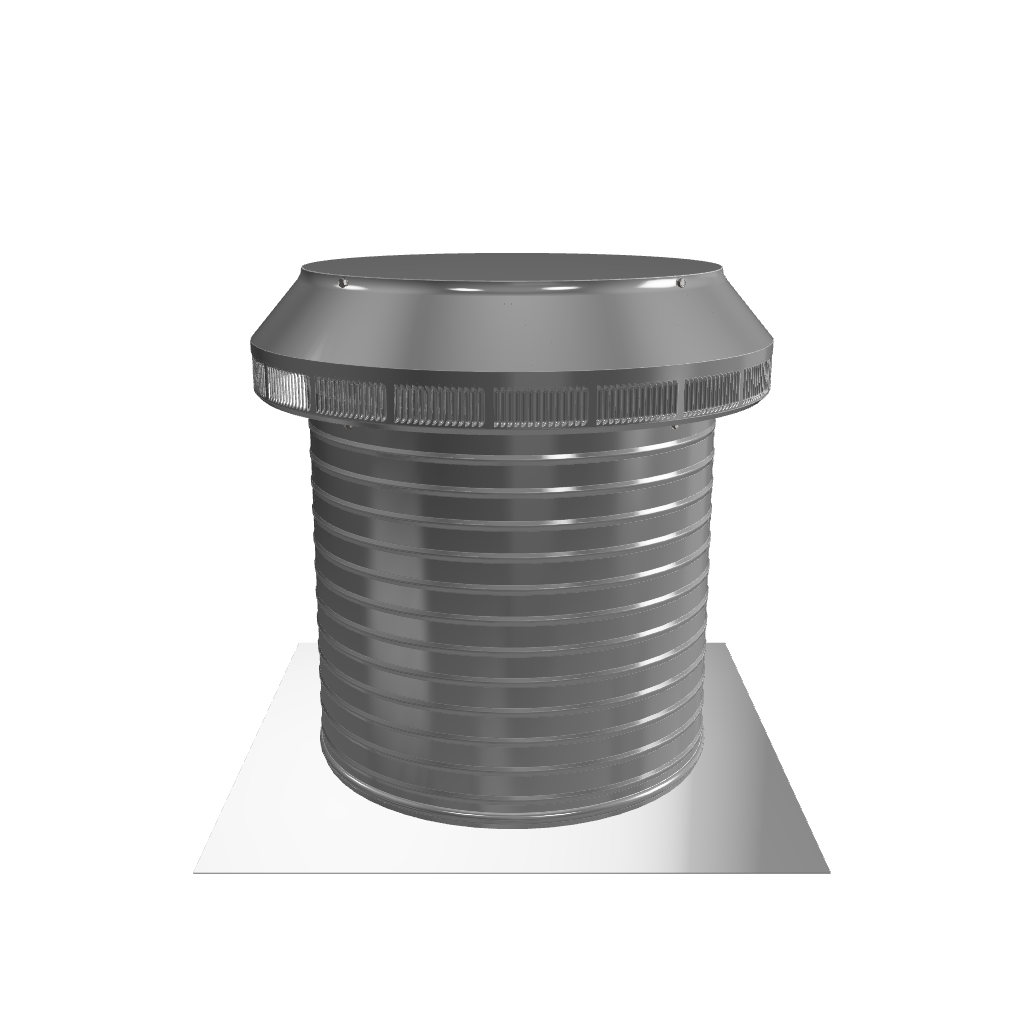

14-inch Intake Roof Vent | Pop Vent Model PV-14-C12

The 14-inch Intake Vent is ideal for maintaining proper attic ventilation. The PV-14-C12 is 14 inches in diameter with a 12-inch tall collar. In other words, this vent has 12 inches of clearance between the base and the inner louvers. In addition, the 14-inch Pop Vent has 144 inches of Net Free Area (NFA) and a standard 19” x 19” flat flange.

Air intake vents allow outside air to enter into attics and ventilation spaces.

Installation: Ideal for low slope or flat roofs

This 14-inch intake roof vent is suitable for flat roofs in climate zones 1-8.

To determine the number of vents you may need for proper attic ventilation, see our Vent Calculator.

How it works:

The Air Intake Roof Louver provides fresh air into the attic or plenum. Heat and moisture may cause the structure to decay without proper rooftop ventilation. This attic vent also helps keep insulation dry in the winter to prevent mold growth.

The round design is also aerodynamic and can withstand wind speeds beyond 200 mph. It can also be painted to match the color of the roof.

For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pop Vents are UL-listed, rated up to 50+ PSF or wind pressure above 200 MPH, and certified by the Texas Department of Insurance, & Florida State Approved.

Installation
Colors
CERTIFIED-UL Logo

This product has UL Certification. Check out other details and specifics on UL Product IQ™
(Note: UL now requires you to have a free account to access this page) UL’s Online Certifications Directory.

certificate-of-compliance-universal-vent

Pending

Calculate number of Model  PV-14-C12  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
