• 6 inch Roof Vent | Residential Round Back Roof Jack Vent Cap RBV-6-C2-TP
1 7

Model RBV-6-C2-TP | Round Back Vent | 6" Diameter | 2" Tall Collar | Tail Pipe

Model RBV-6-C2-TP | Round Back Vent | 6" Diameter | 2" Tall Collar | Tail Pipe

RBV-6-C2-TP

843951010182

Round Back Residential Roof Jack Vent Cap

Price: $26.00 USD

$26.00 USD
Sale Sold out

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$9

  • Plain Black STANDARD+$9

  • Pine Green STANDARD RAL 6028+$9

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$9

  • Terra Brown STANDARD RAL 8028+$9

-- Please Select --
Color

View full details
6 inch Roof Vent | Residential Round Back Roof Jack Vent Cap RBV-6-C2-TP
Model RBV-6-C2-TP | Round Back Vent | 6" Diameter | 2" Tall Collar | Tail Pipe

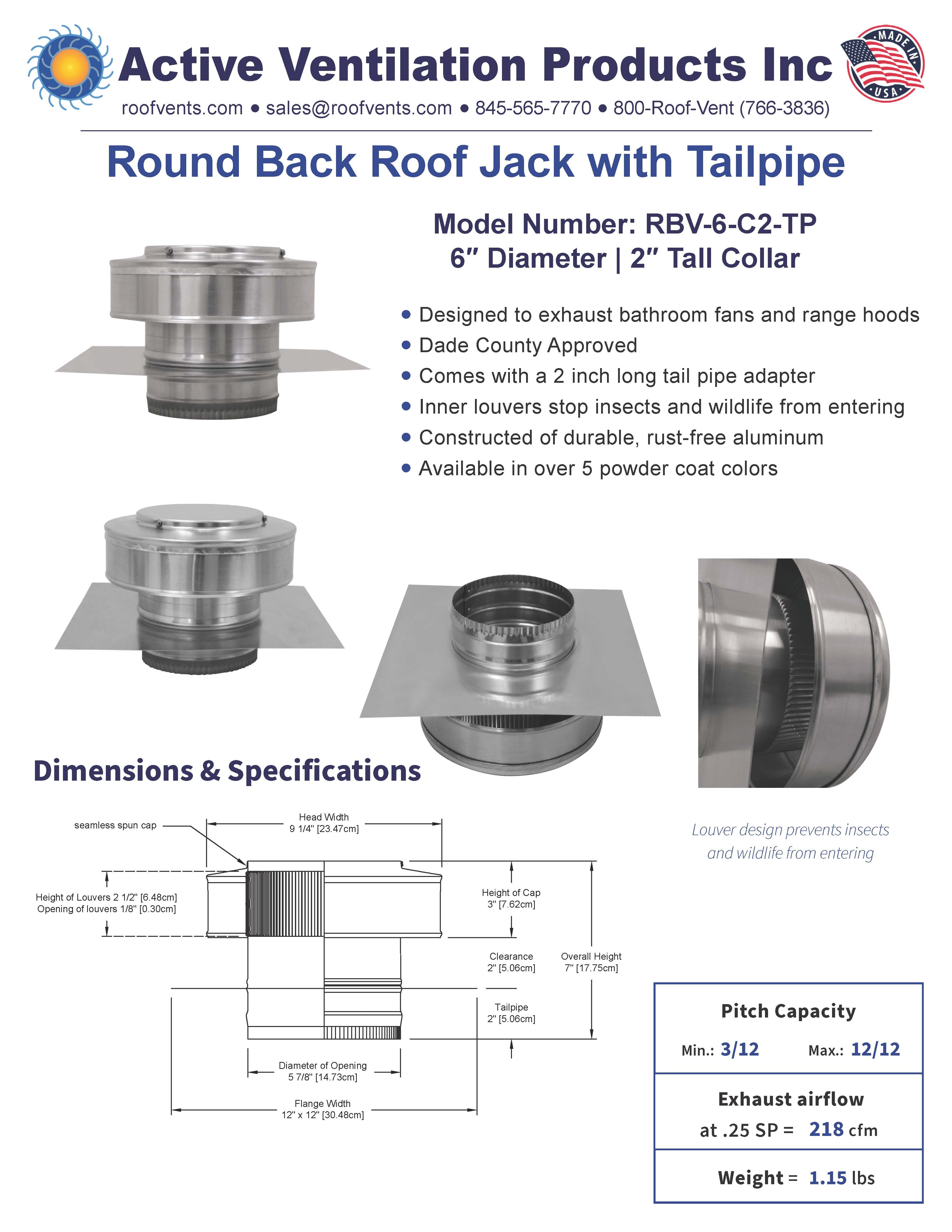

Drawings
Model RBV-6-C2-TP | Round Back Vent | 6" Diameter | 2" Tall Collar | Tail Pipe

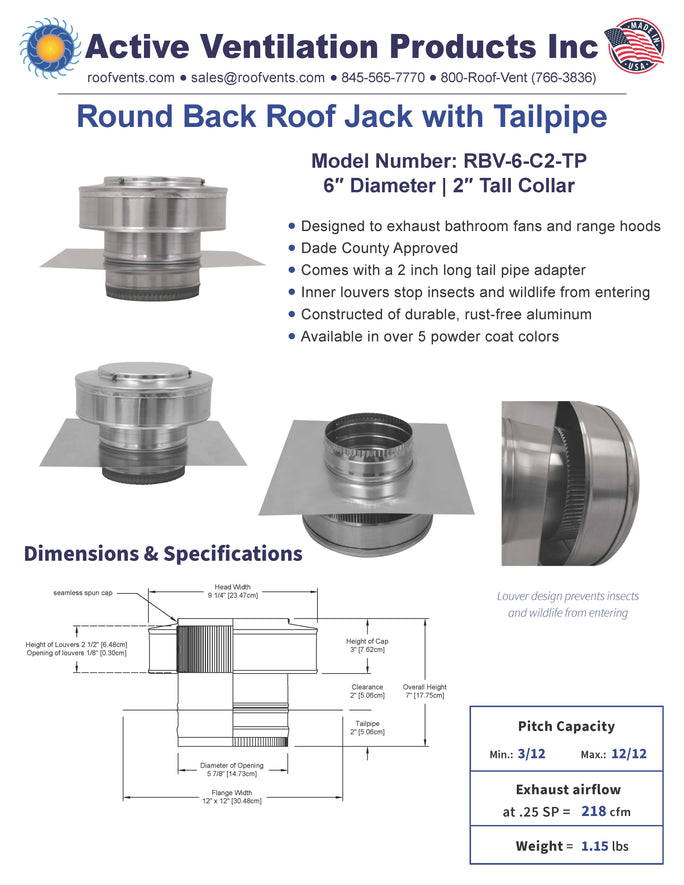

Drawings
Model RBV-6-C2-TP | Round Back Vent | 6" Diameter | 2" Tall Collar | Tail Pipe Model RBV-6-C2-TP | Round Back Vent | 6

6 inch Roof Vent | Round Back Residential Roof Jack Vent Cap | Model RBV-6-C2-TP

The 6 inch Round Back Roof Jack is 6 inches in diameter and has a 2 inch tall collar. In addition, it also has a 2 inch tailpipe for duct ventilation. It is mainly for ventilating bathroom fans and range hoods. It allows for maximum airflow while alleviating back pressure.

The Roof Jack’s tailpipe is 2 inches long and is corrugated at the bottom to fit existing ductwork. This allows for a quick and easy installation.

Installation: Best used on steep slope roofs

The 6 inch Round Back Roof Jack is best for ventilating steep slope roofs. The inner louver design will prevent rain or snow from entering.

This static vent is ideal for venting out bathroom fans or range hoods. In addition, the round design is aerodynamic to withstand wind speeds up to 200 mph. The Round Back Vent is great for residential roof applications because of its low profile.

These vents have an all-aluminum construction. To clarify, this means they are durable, lightweight, and will not rust.

For any questions please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Installation
Colors

Pending

Pending

Pending

Pending

Calculate number of Model  RBV-6-C2-TP  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
