Square Roof Curb Cap 6.5" X 6.5"

Square Roof Curb Cap 6.5" X 6.5"

SRC-Cap-3

Square Roof Curb Cap

Price: $6.00 USD

$6.00 USD
Sale Sold out
View full details
Square Roof Curb Cap 6.5" X 6.5"

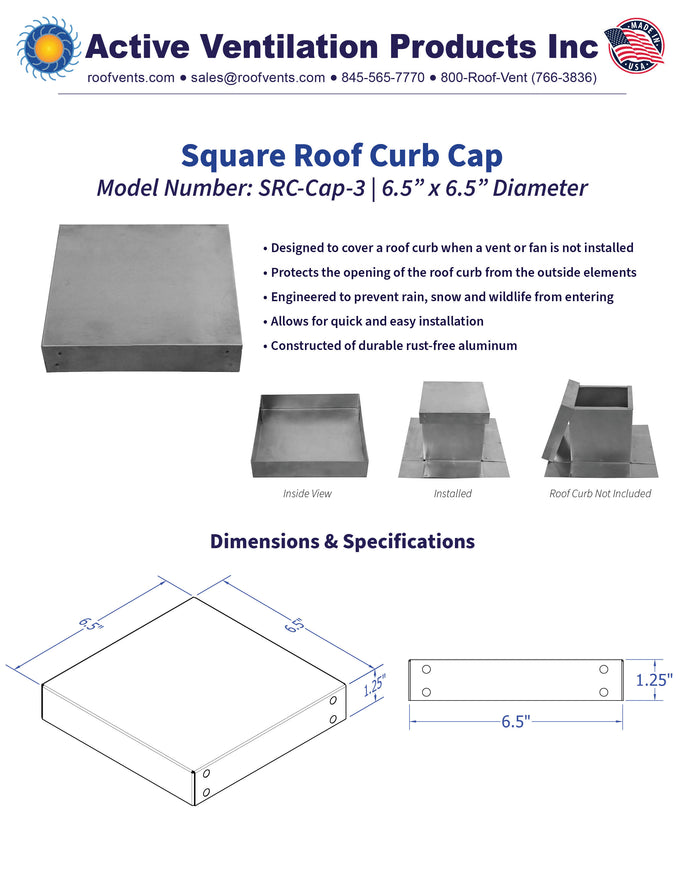

Drawings
Square Roof Curb Cap 6.5" X 6.5"
Drawings
Square Roof Curb Cap 6.5" X 6.5" Square Roof Curb Cap 6.5
Installation

Pending

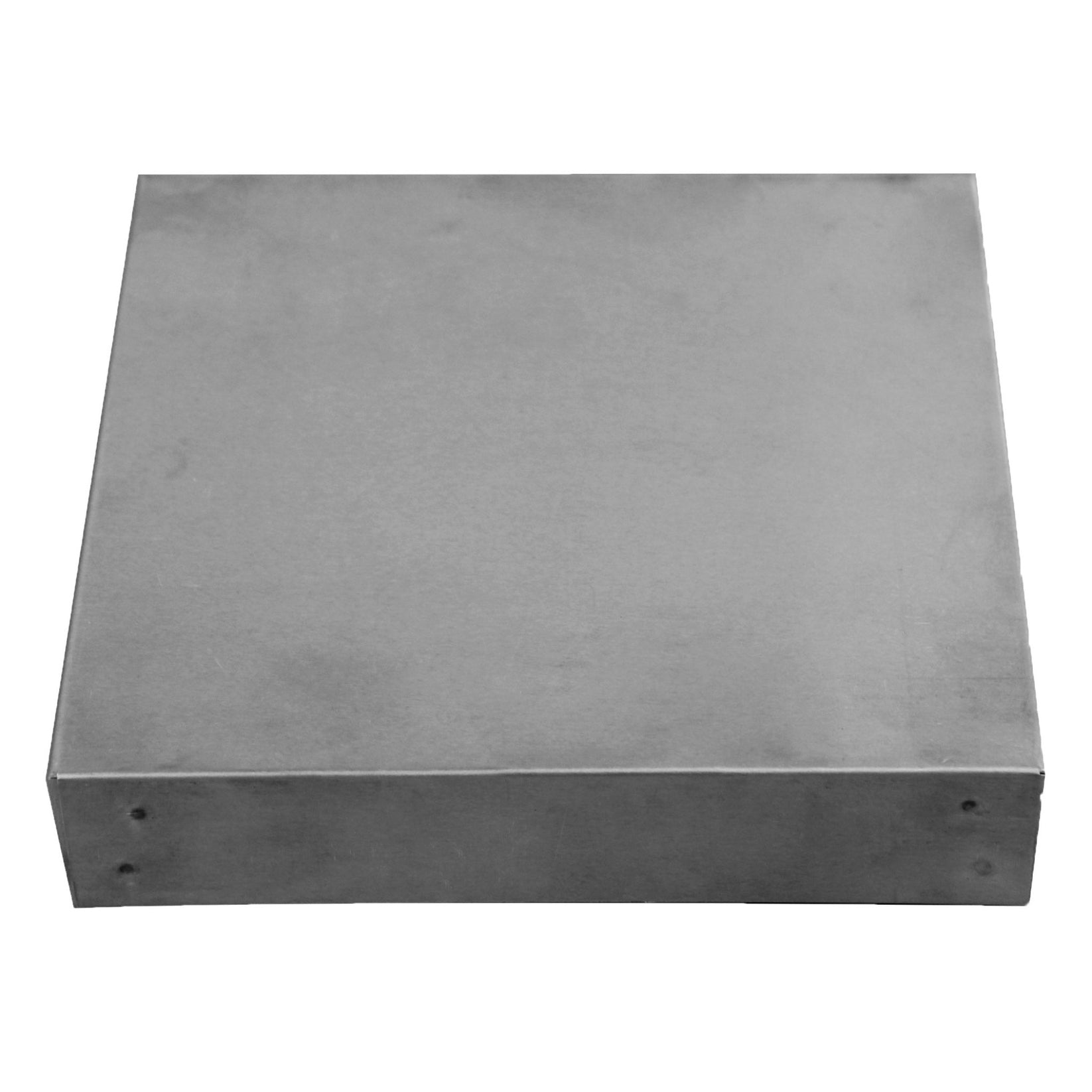

Roof Curb Cap - Roof Curb Cover - Model SRC-Cap-3

AVP's Square Roof Curb Caps fit over Roof Curbs to keep out the weather and animals.

The SRC-Cap-3 is a Roof Curb Cap that fits onto a roof curb with a 6" OD or any of AVP's SRC-3 Roof Curbs.

How the Roof Curb Cap Works:

This roof curb cap fits over existing curbs with an outer diameter of 6 inches. The top of the cap is a solid sheet of aluminum that protects the curb's opening when no vent or fan is installed. The Roof Curb Cap keeps precipitation and wildlife out of the attic.

To install, place the roof curb cover over the curb. Make sure the cap is centered, and then attach self-tapping sheet metal screws onto the sides of the cap's flange.

What is a Roof Curb?

A Roof Curb is a metal box that acts as a base or hatch to mount a cap, roof vent, or fan.

Many roof curbs are made of wood, which is heavy and can damage the roofing membrane. Avoid damage by buying AVP's prefabricated aluminum curbs; they are lightweight and never rust or rot.

For any questions, please email the sales team at sales@roofvents.com or call 845-565-7770.

Pending

Pending

Pending

Pending

Pending

Pending

Calculate number of Model  SRC-Cap-3  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
