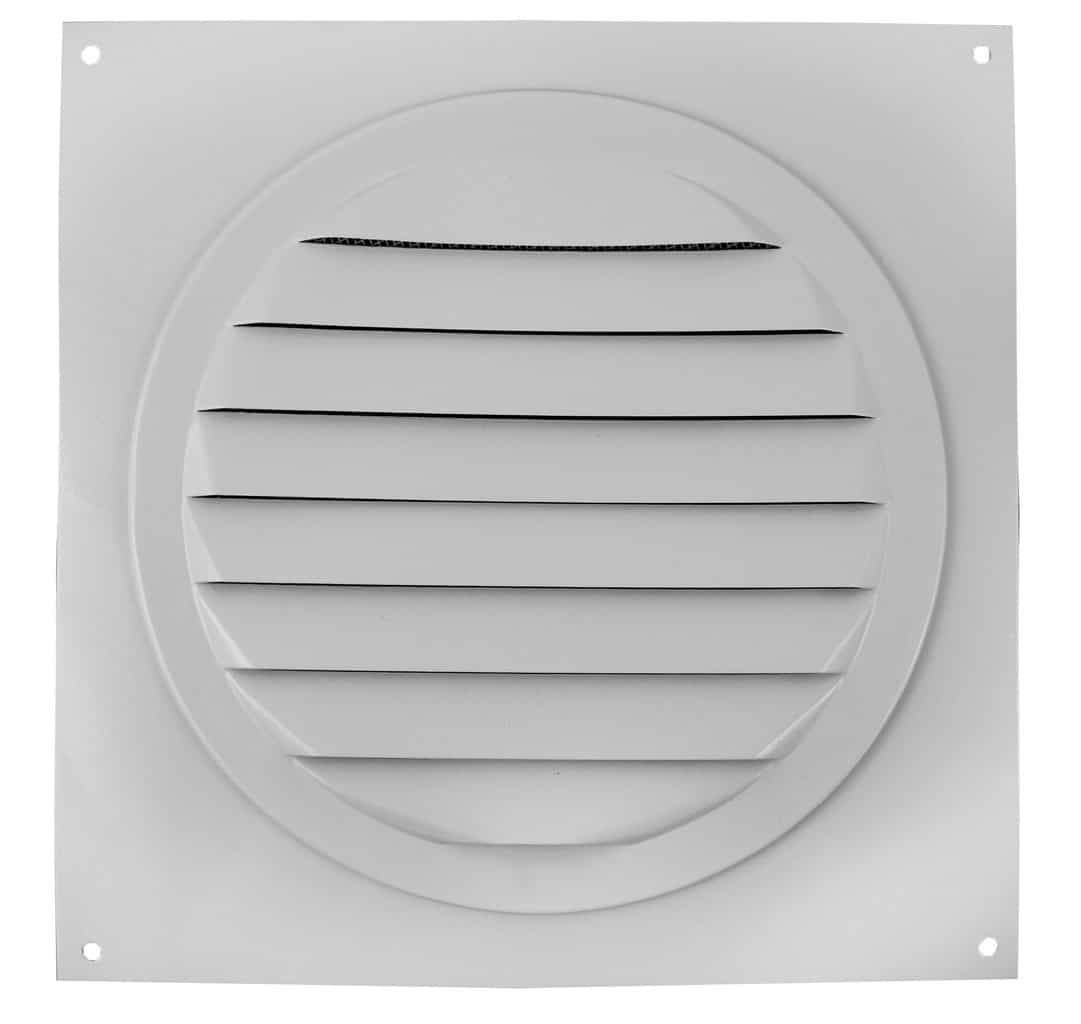

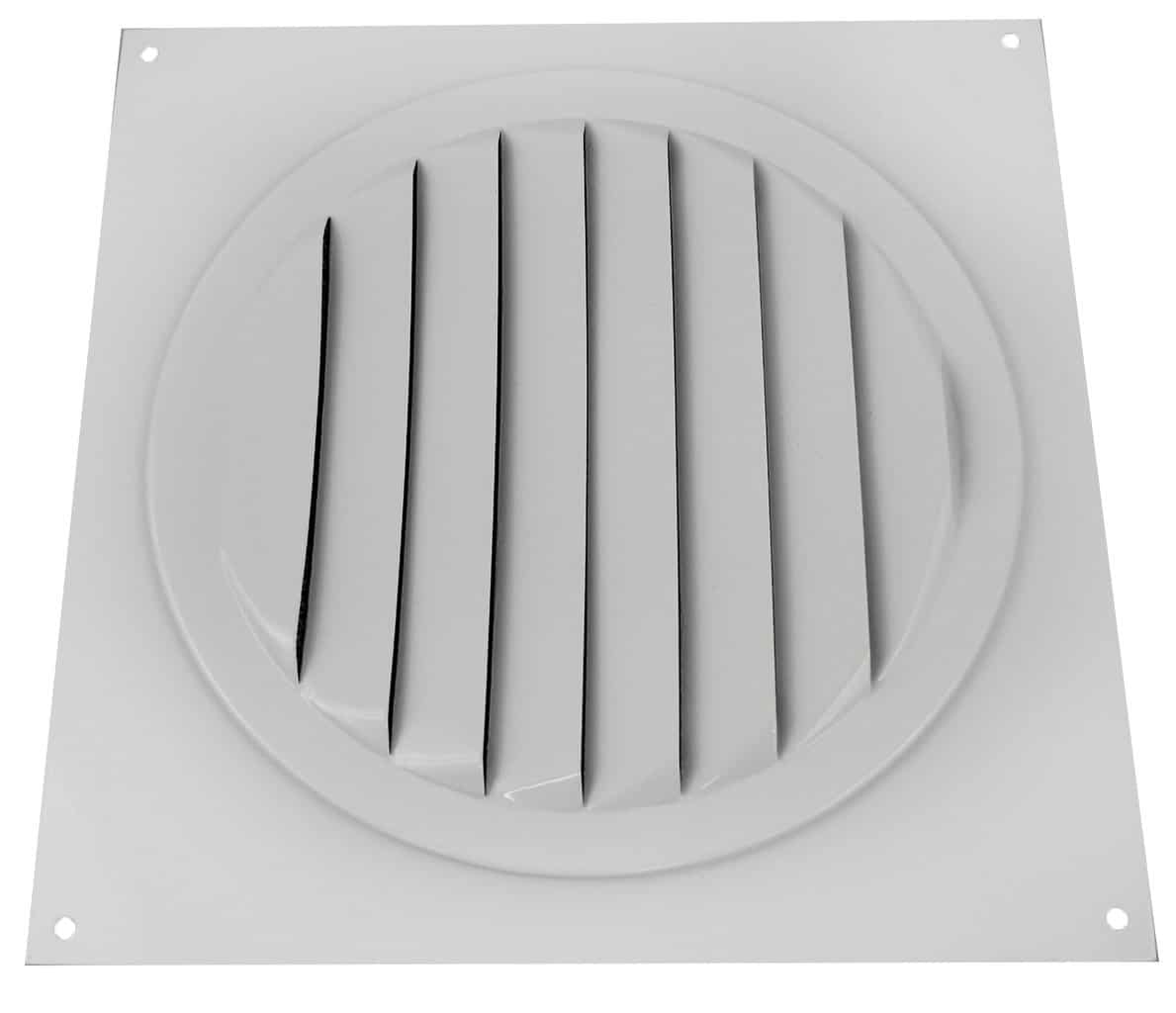

Model RSV-6-WT | Round Soffit Vent | 6" Diameter | White

Model RSV-6-WT | Round Soffit Vent | 6" Diameter | White

SKU:RSV-6-WT

843951004044

Round Soffit Vent

Price:Regular price $8.00 USD

Regular price Sale price $8.00 USD
Sale Sold out
View full details
6 inch Round Soffit Vent - Mini Louver - 6 inch Diameter - Model RSV-6-WT
Model RSV-6-WT | Round Soffit Vent  |  6"  Diameter  | White
Drawings
Model RSV-6-WT | Round Soffit Vent  |  6"  Diameter  | White
Drawings

6 inch Round Soffit Vent - Mini Louver - 6 inch Diameter- Model RSV-6-WT

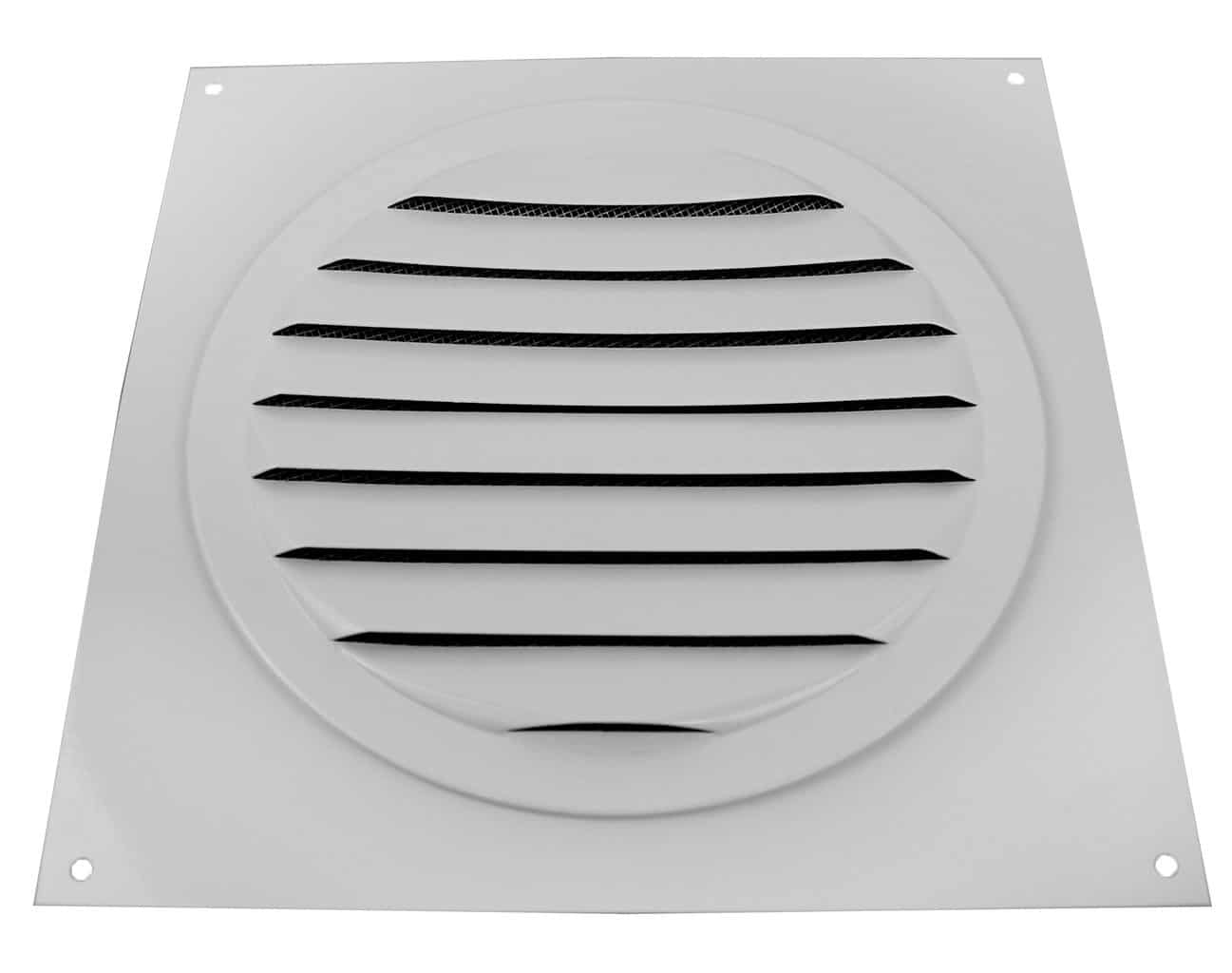

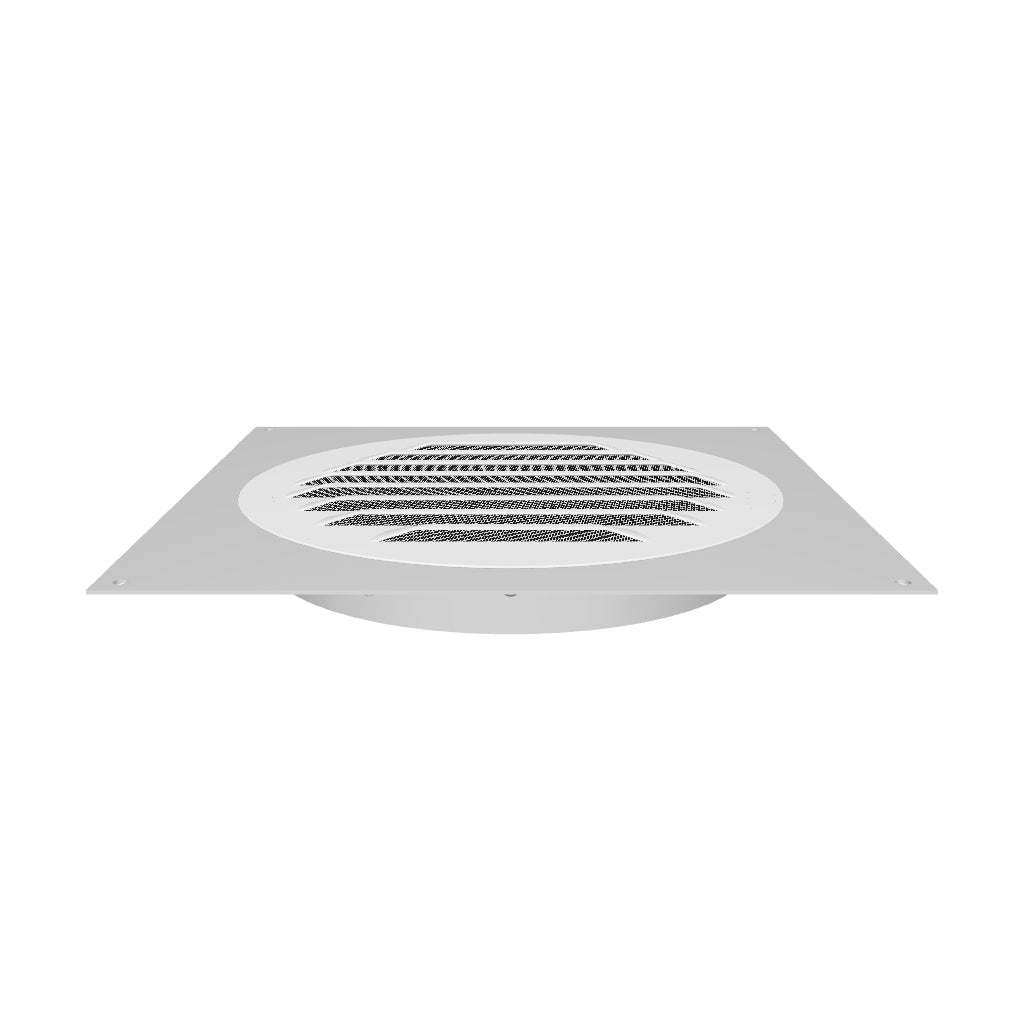

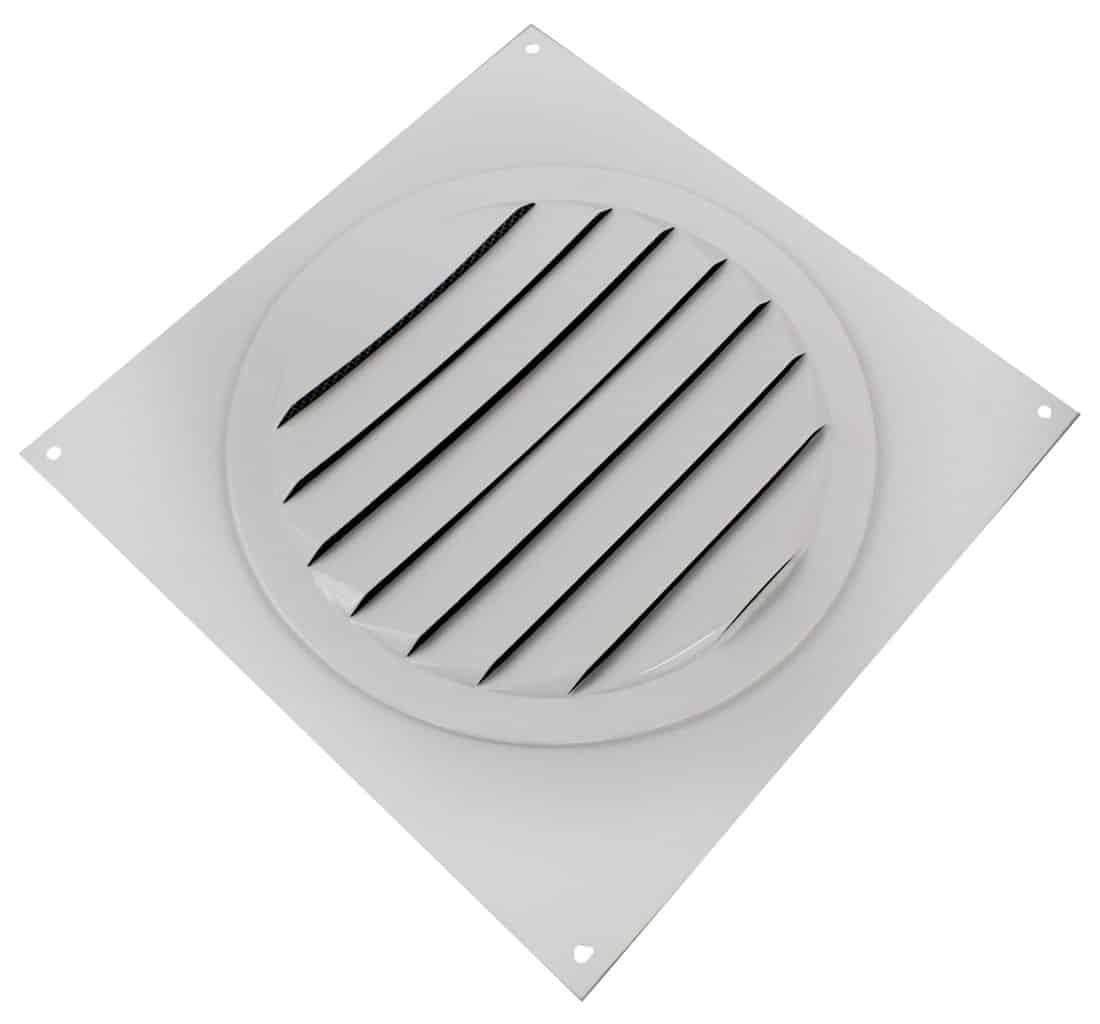

The 6 inch round soffit vent is an easy-to-install option to provide intake airflow. These mini louvers will provide critical intake ventilation in hard-to-ventilate or restricted areas. The flange of the vent allows for an easy and secure installation without the risk of falling out. While on the other hand, most other mini louvers fall out over time.

How it works:

Soffit vents control moisture and rotting problems common to eave and overhang areas by providing needed intake airflow for exhaust vents. In addition, they also help provide proper temperature balance and energy performance.

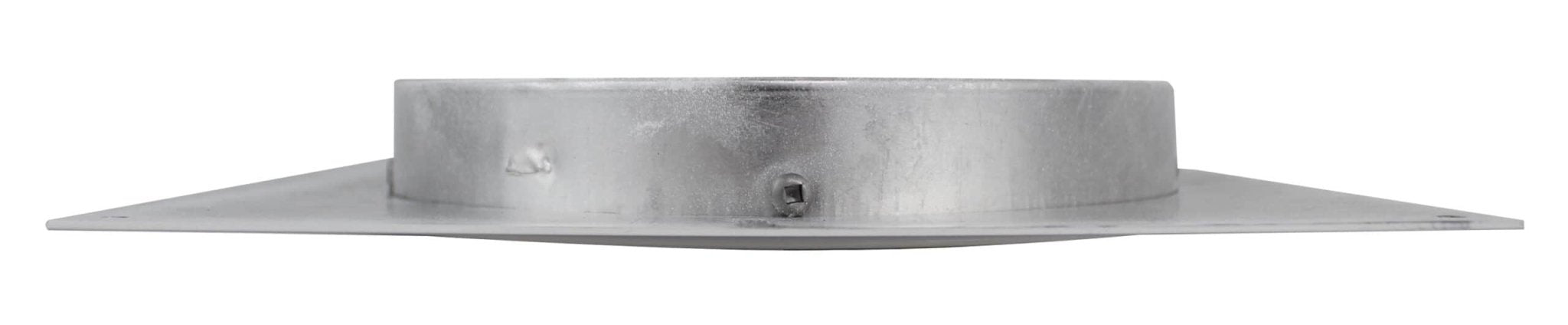

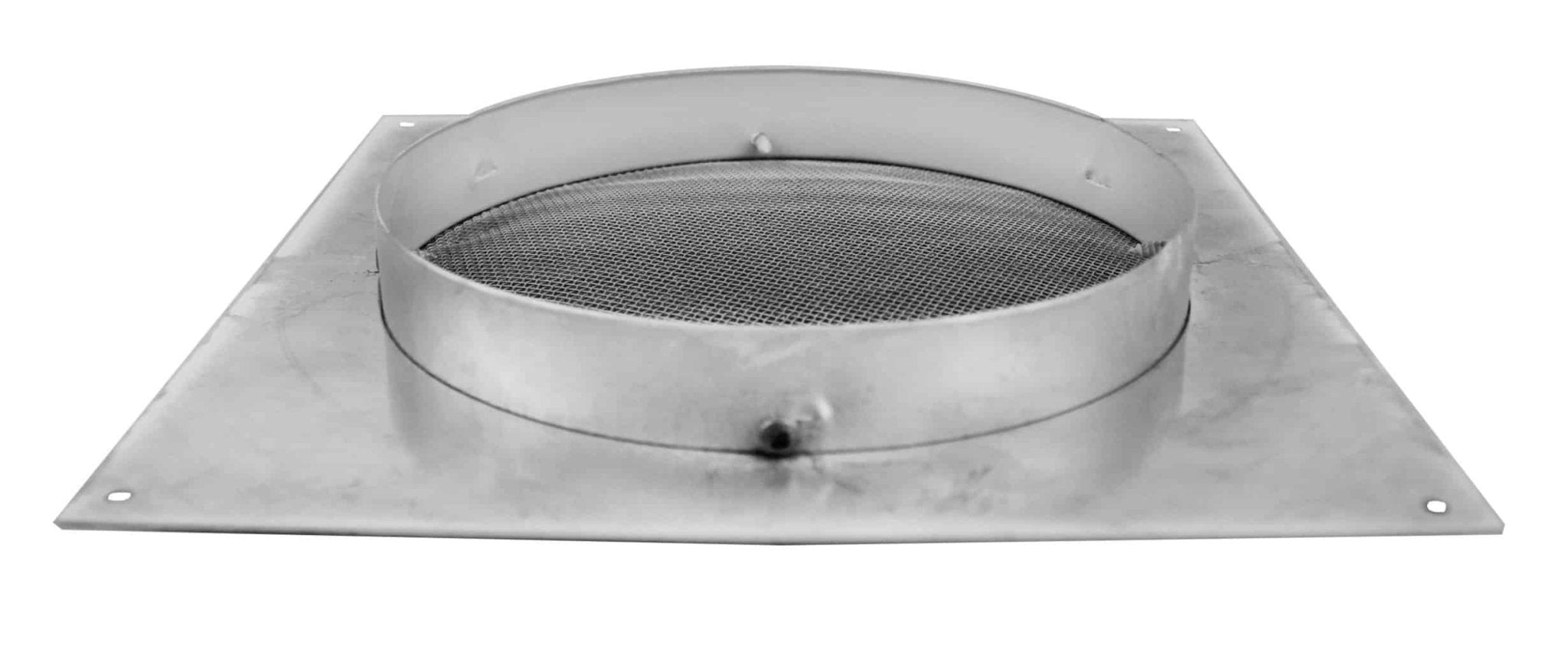

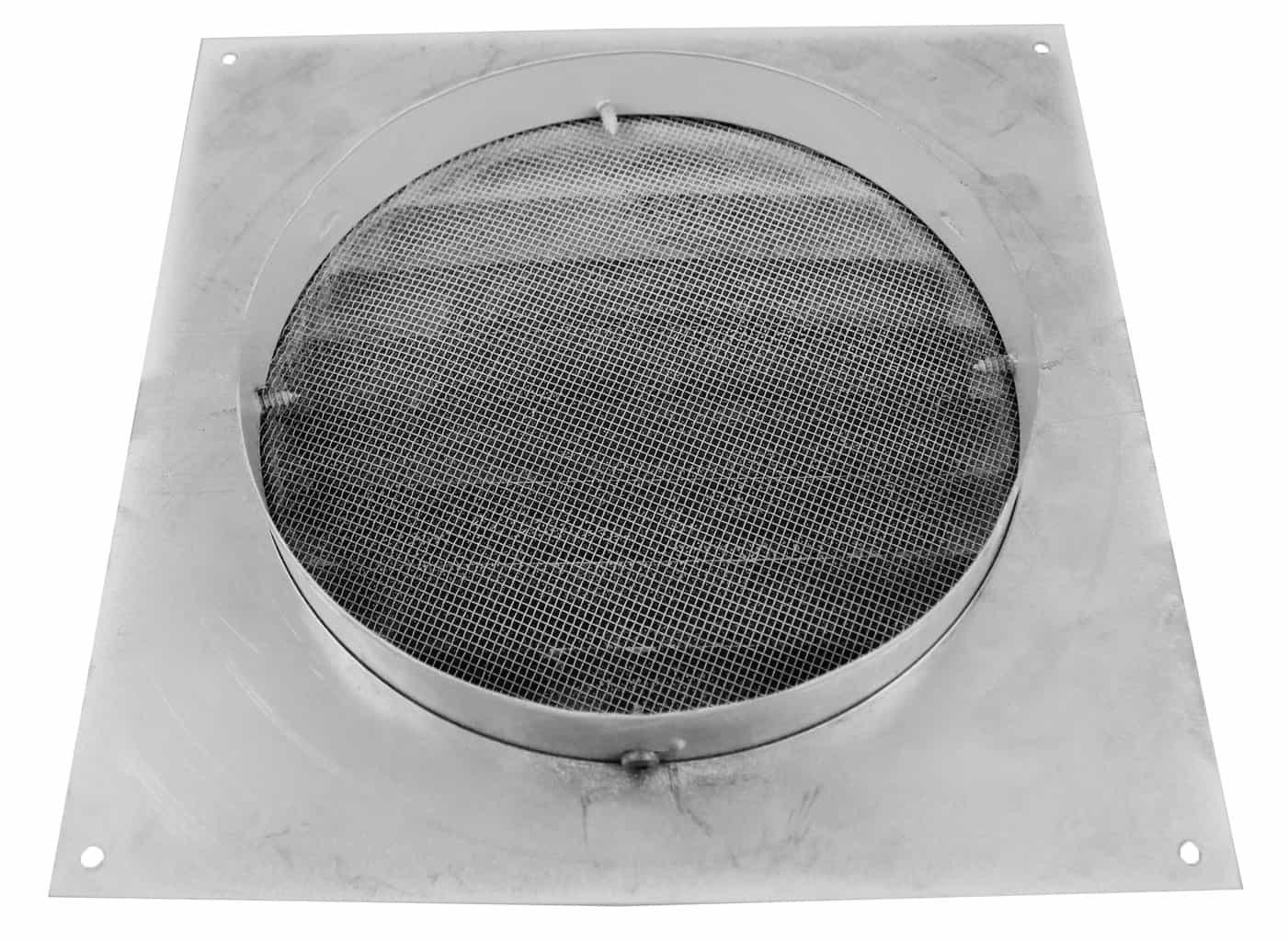

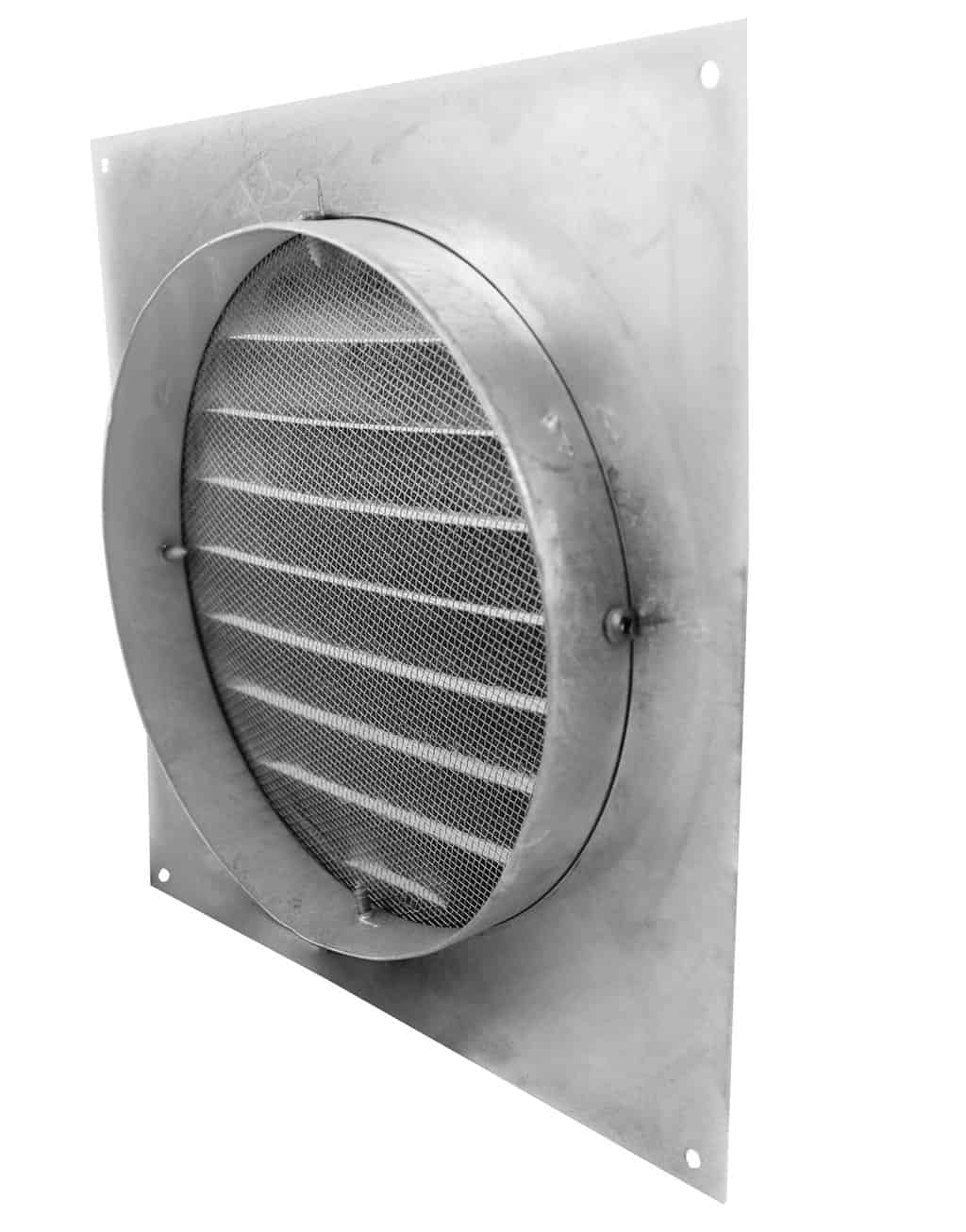

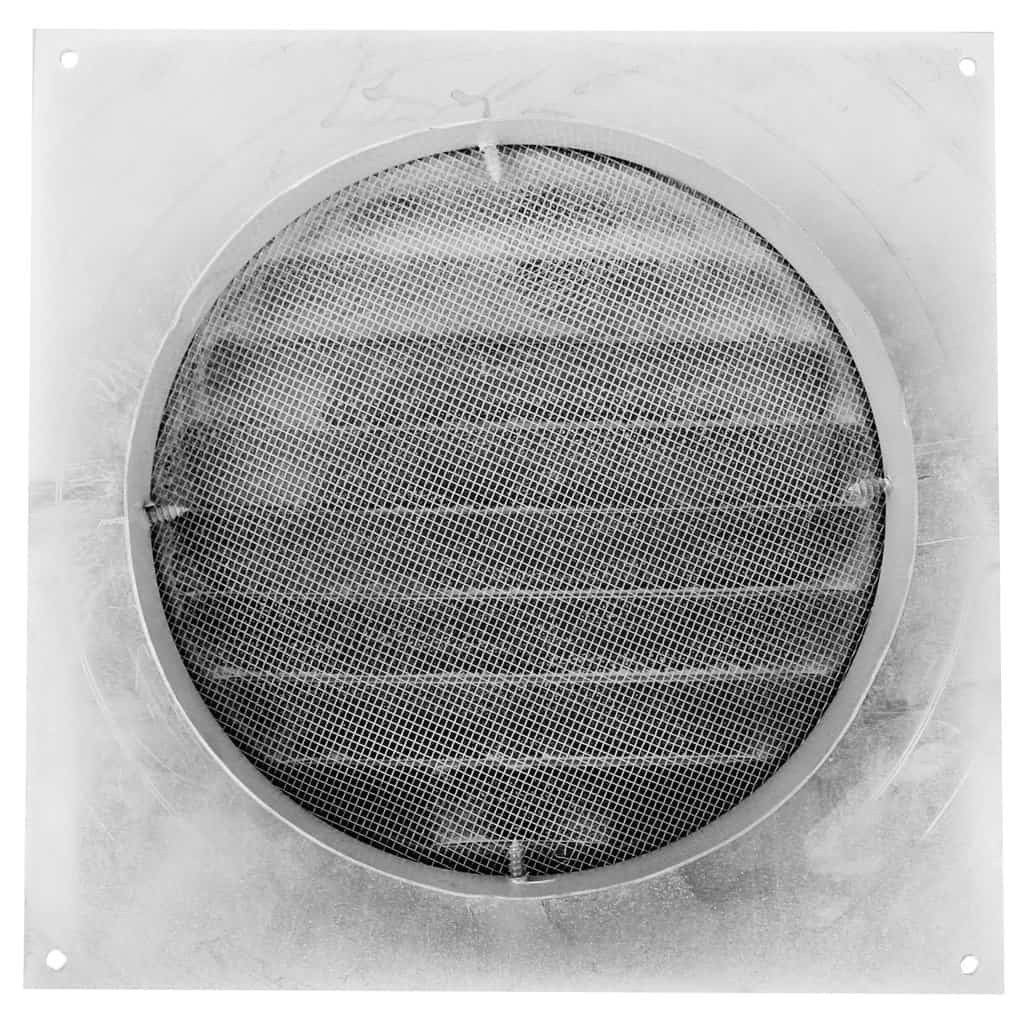

The 6 inch round soffit vent is constructed of durable, corrosion-resistant aluminum and is powder-coated white. Each mini louver has a screen inside to prevent insects from entering.

When paired with proper exhaust ventilation, the round soffit vent will allow for optimal ventilation

Installation:

Mini Louvers will seal existing rafters or bird block vent holes. As a result, this will maximize airflow while protecting against rodent and insect invasion. However, if there is no pre-existing bird block holes, use a hole saw drill bit to cut holes to the nominal size of the Mini Louver Vent. Lightly tap in the vents to pressure fit.

For any questions please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pending

Pending

Pending

Pending

Pending

Pending

Calculate number of Model  RSV-6-WT  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
