• Attic Fan - 14 inch Aura Attic Fan | AF-14-C8 - With Fan
1 7

Model AF-14-C8 | Aura Fan | 14" Diameter | 8" Tall Collar | Flat Flange | CFM: 1000

Model AF-14-C8 | Aura Fan | 14" Diameter | 8" Tall Collar | Flat Flange | CFM: 1000

AF-14-C8

843951009131

Aura Attic Fan

Price: $272.00 USD

$272.00 USD
Sale Sold out
Shut-off Switch Options:
SOS - Simple Shut-Off Switch
TSOS - Temperature Sensor Shut-off Switch
THSOS - Thermostat/Humidistat Shut-off Switch

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$20

  • Plain Black STANDARD+$20

  • Pine Green STANDARD RAL 6028+$20

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$20

  • Terra Brown STANDARD RAL 8028+$20

-- Please Select --
Color

View full details
Attic Fan - 14 inch Aura Attic Fan | AF-14-C8 - With Fan

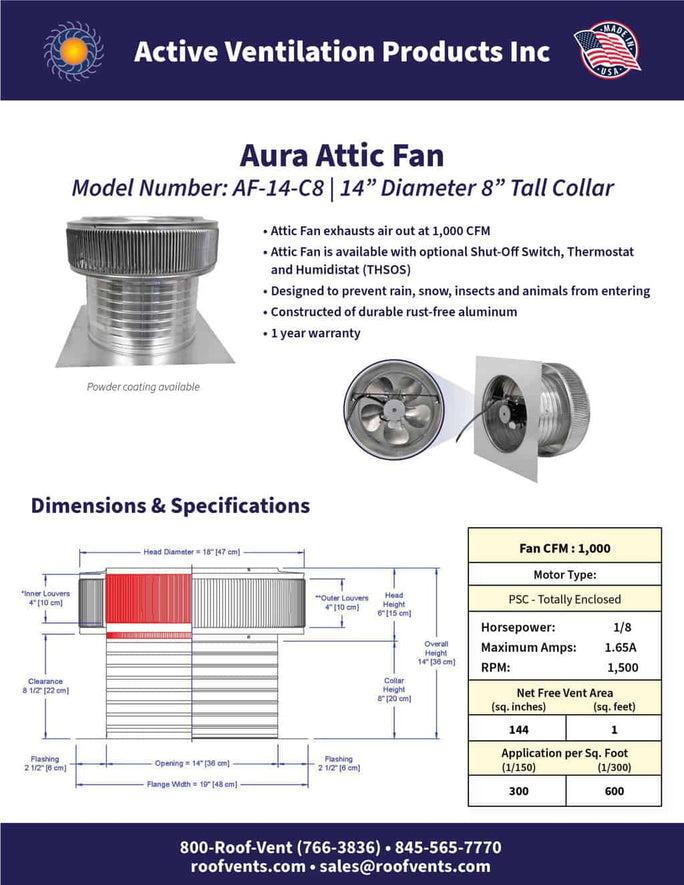

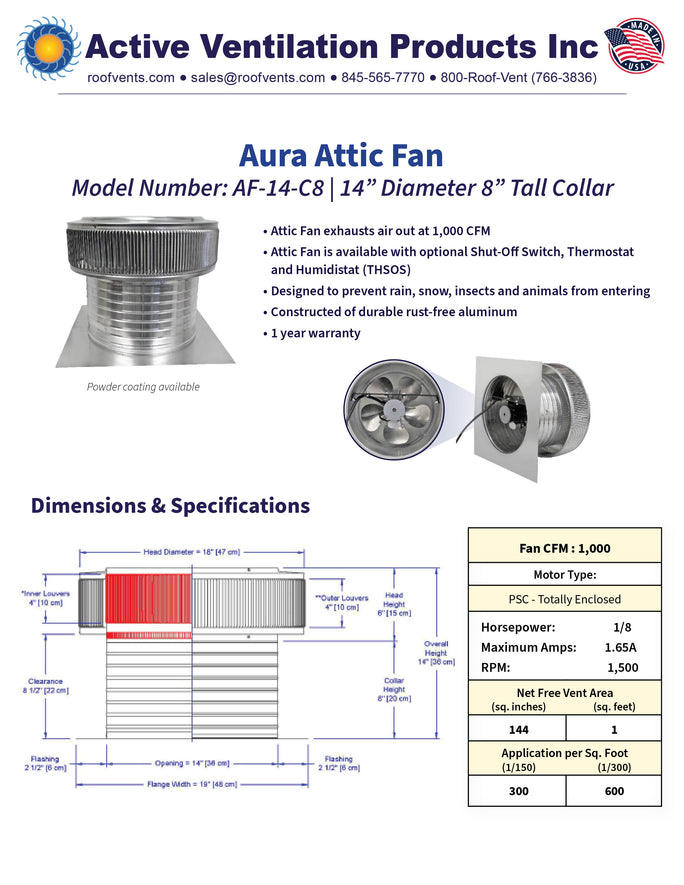

Drawings

14-Inch Aura Attic Fan | Model AF-14-C8 | 1,000 CFM

The 14-inch Aura Attic Fan is 14 inches in diameter and has an 8-inch tall collar. The model AF-14-C8 exhausts air out at 1,000 CFM. All 14-inch attic fans have a standard 19" x 19" square flange.

This is an attic exhaust fan. It has an all-aluminum construction, making it durable and long-lasting.

Motor Type: PSC – Totally Enclosed

With 1/8 horsepower and 1,000 CFM, this 14-inch attic fan is perfect for ventilating all attic spaces.

This Attic Fan also has an optional Shut-Off Switch, Thermostat, and Humidistat (THSOS).

Installation:

A collar height of 8 inches is typically used for low-slope or flat-roof ventilation. However, if installed on the upper portion of the roof, this attic fan can be used on a 0/12 to 5/12 pitch roof in all climate zones.

The Aura Attic Fan exhausts air continuously even when the motor is off. This attic fan works passively because of the Venturi Effect. When the wind blows against the outer louvers, this creates an upward draft, which allows air to flow freely out of the attic.

How it works:

The exhaust fan pulls air out of the attic at 1000 cfm.

The 14-inch attic fan will remove heat from the attic during the summer and moisture during the winter.

For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pending

Colors

Pending

Pending

Pending

Pending

Calculate number of Model  AF-14-C8  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
