• 10 inch Aura Solar Attic Fan with Curb Mount Flange -Model ASF-10-C12-CMF
1 12

Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange

Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange

ASF-10-C12-CMF

843951002569

Aura Solar Exhaust Fan with Curb Mount Flange

Price: $254.00 USD

$254.00 USD
Sale Sold out
Tandem Solar Panel Options:
An additional solar panel is available for all solar fans

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$15

  • Plain Black STANDARD+$15

  • Pine Green STANDARD RAL 6028+$15

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$15

  • Terra Brown STANDARD RAL 8028+$15

-- Please Select --
Color

View full details
10 inch Aura Solar Attic Fan with Curb Mount Flange -Model ASF-10-C12-CMF
Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange
Drawings
Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange
Drawings
Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange
Drawings
Aura Solar Exhaust Fan 524 CFM | 10" Diameter | 12" Tall Collar | Curb Mount Flange Aura Solar Exhaust Fan 524 CFM | 10

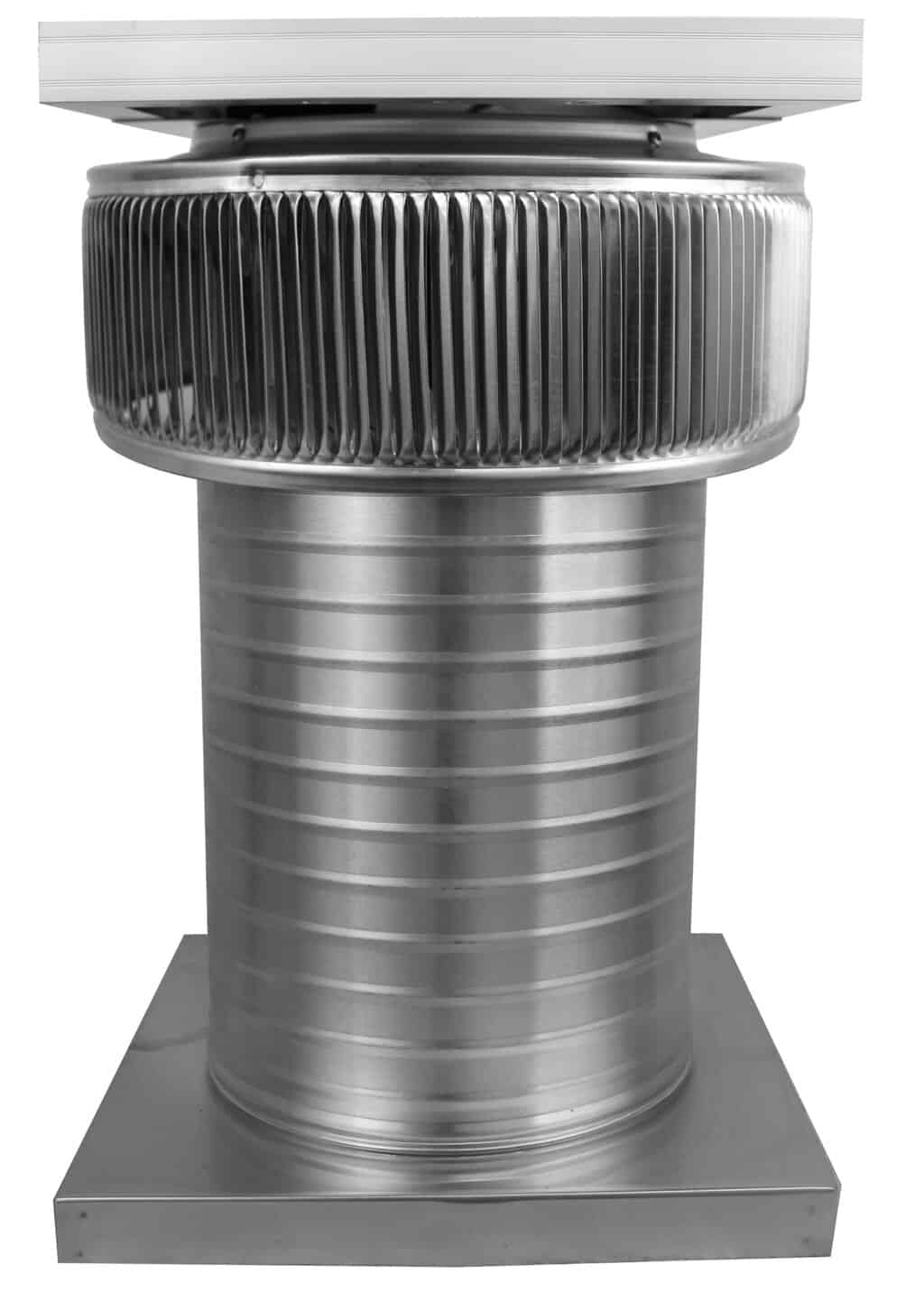

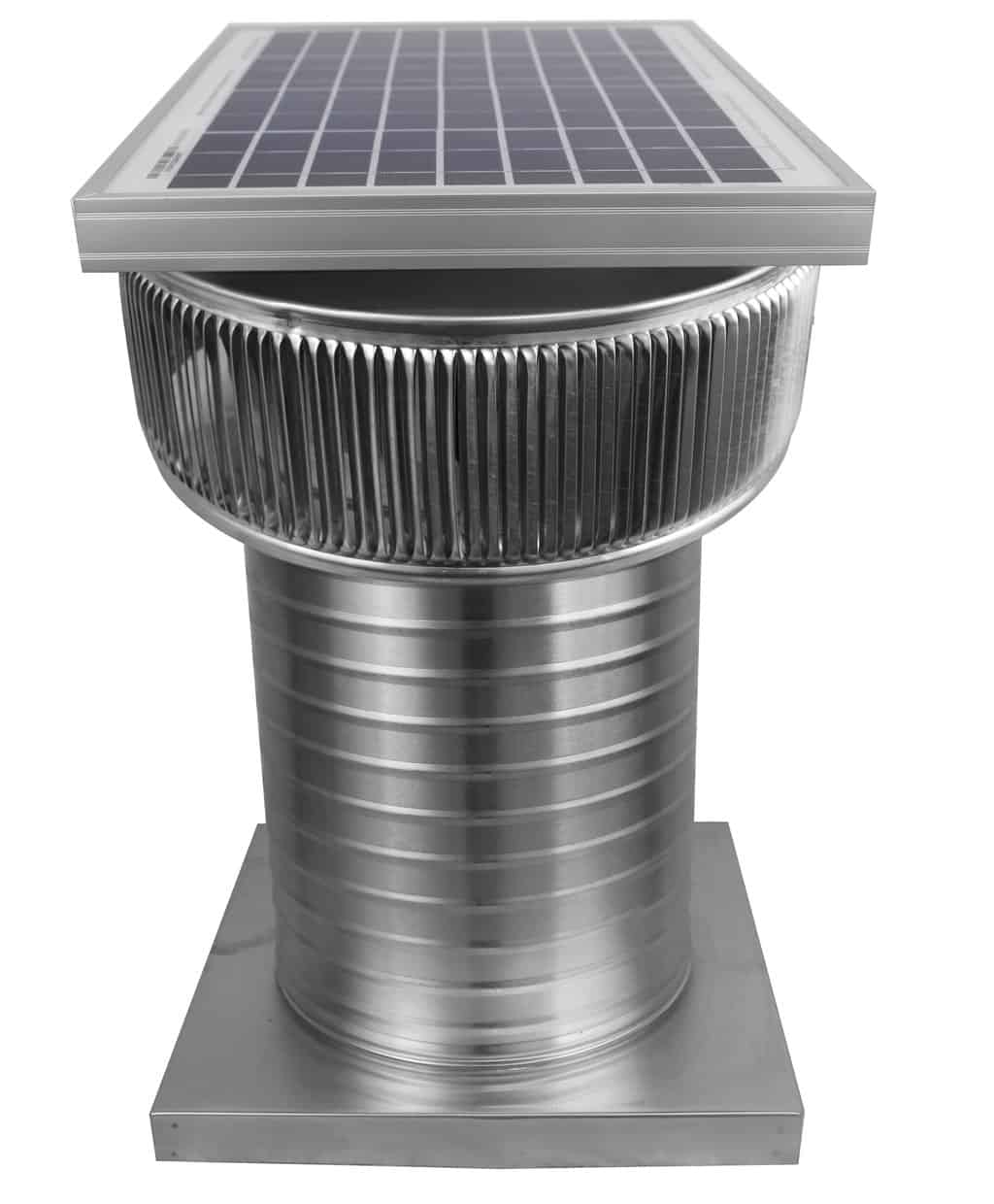

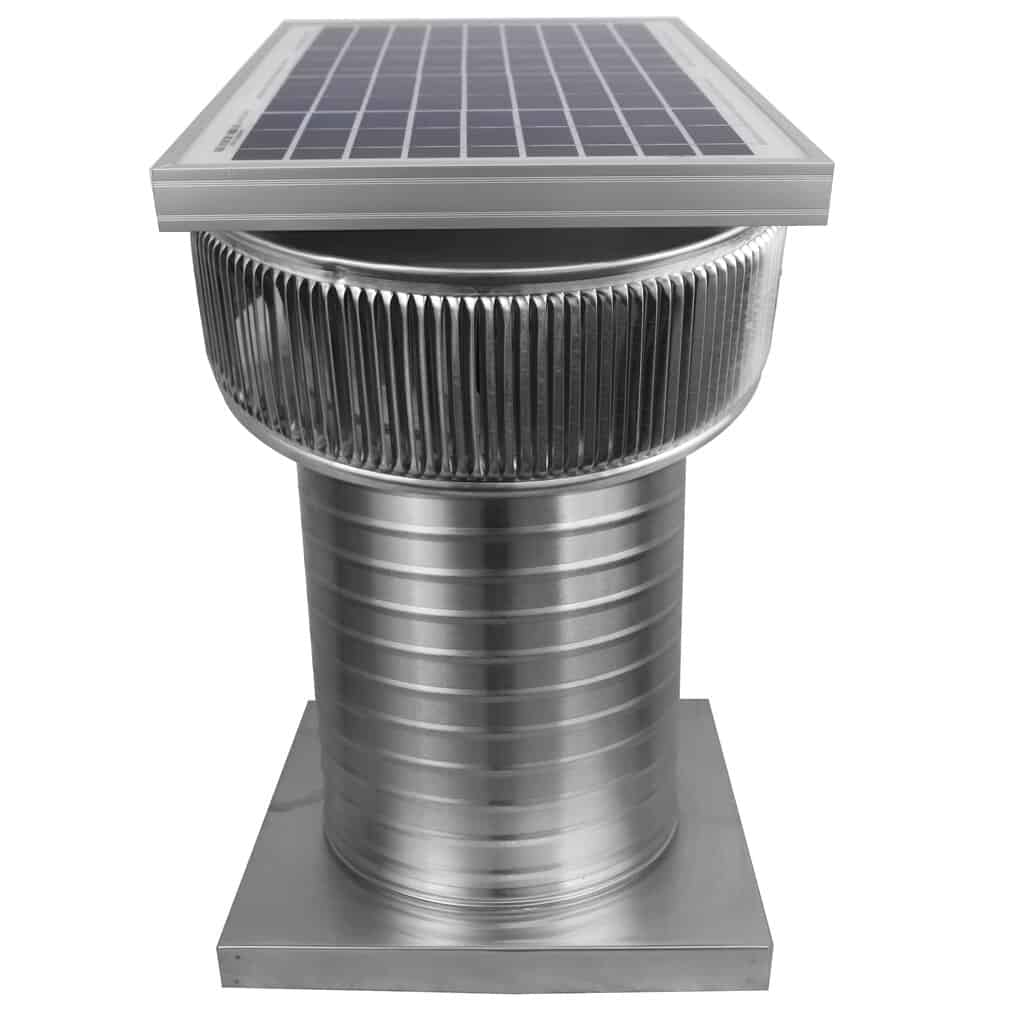

10-inch Aura Solar Exhaust Fan with Curb Mount Flange | Model ASF-10-C12-CMF | 524 CFM

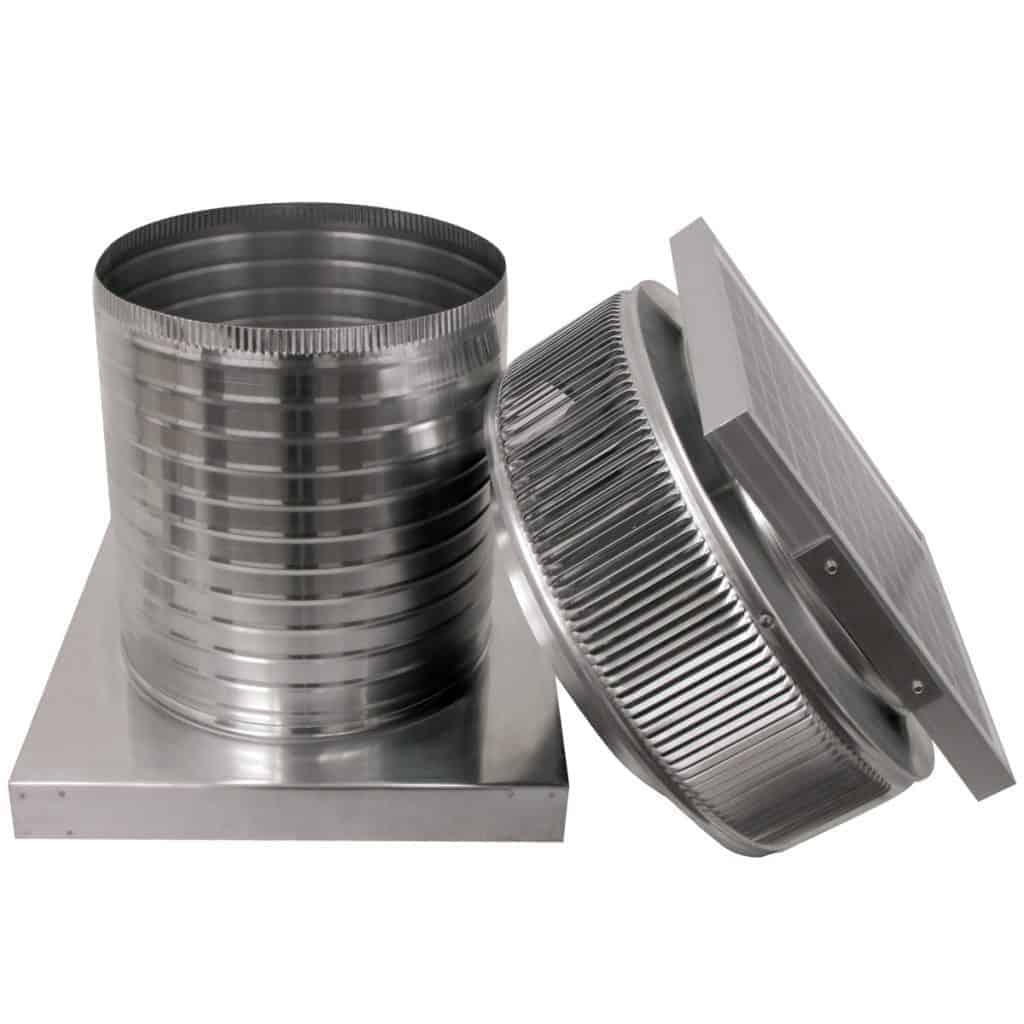

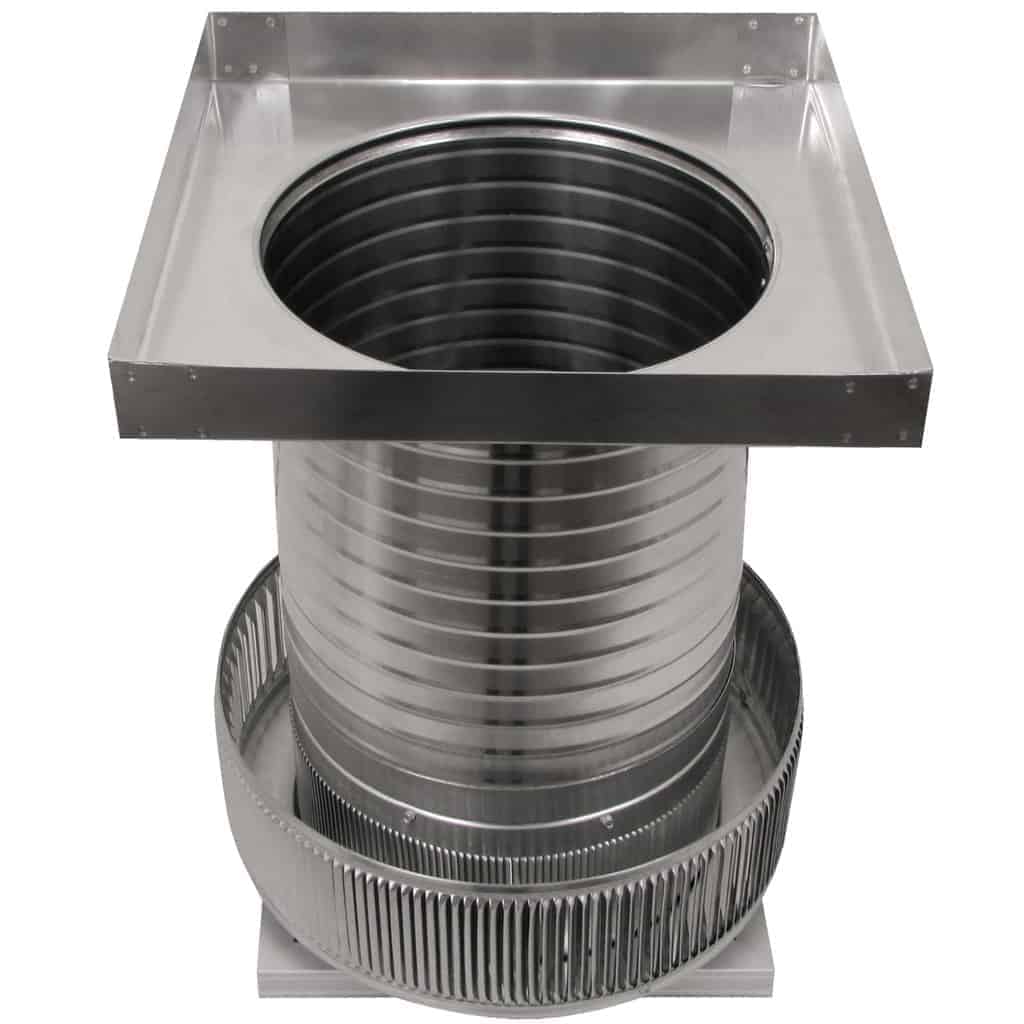

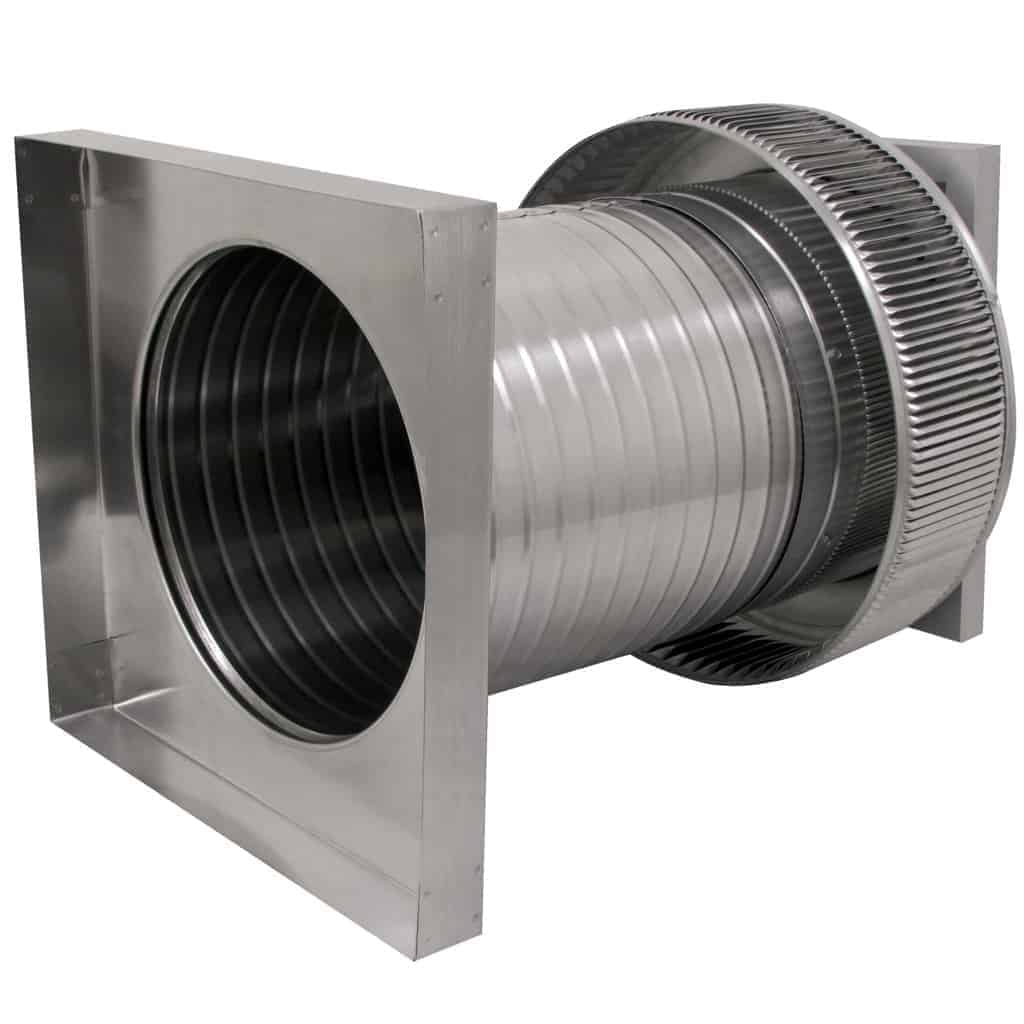

The 10-inch Aura Solar Exhaust Fan is 10 inches in diameter and has a 12-inch tall collar. The model ASF-10-C12-CMF exhausts air at 524 CFM. All 10-inch solar exhaust fans come with a standard 13.5 x 13.5-inch curb mount flange.

Benefits:

  • Solar fan reaches 524 CFM for attic ventilation

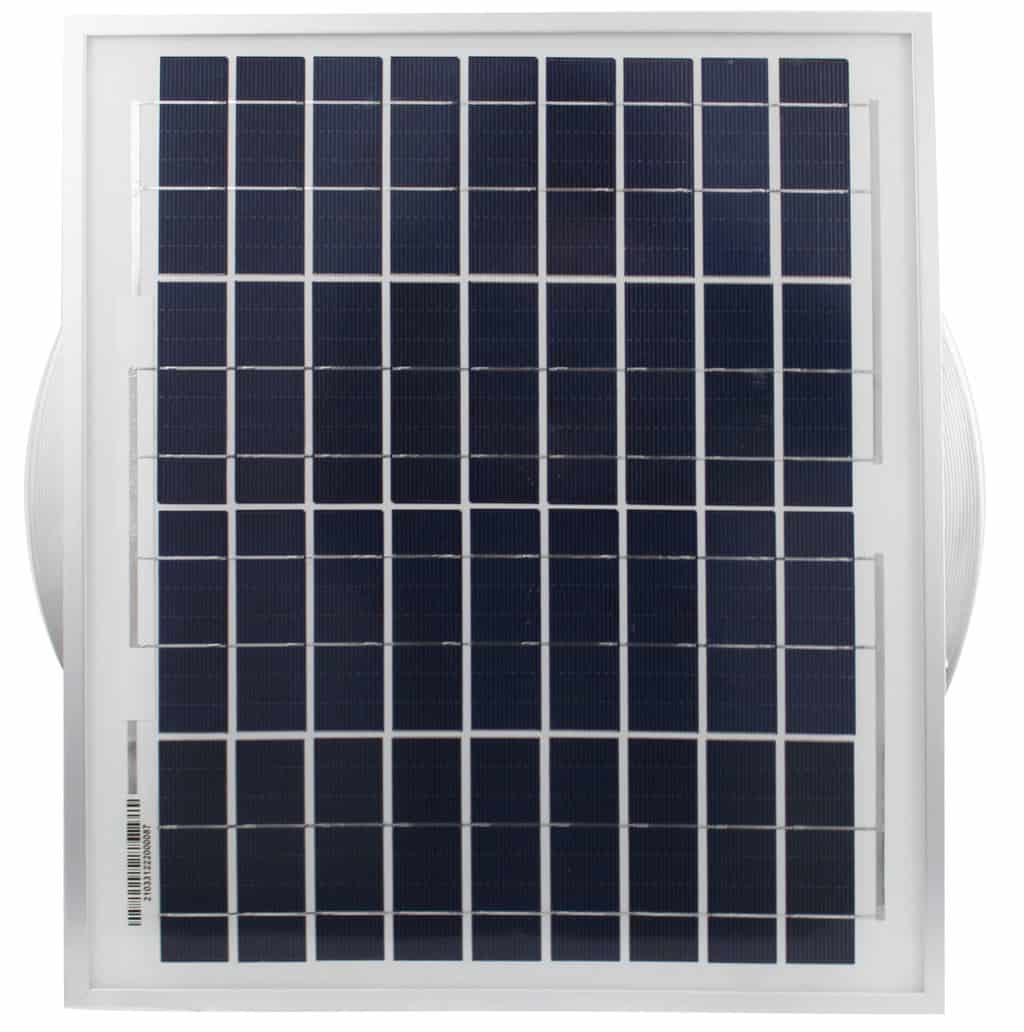

  • Solar panel works off of direct sunlight
  • Keeps your home or building comfortable and energy-efficient
  • Works passively with the wind when there is no sunlight
  • Inner louvers prevent insects and animals from entering the vent
  • Round aerodynamic design can withstand harsh weather
  • Engineered to fit over a roof curb

Installation: Only for low slope or flat roofs on a roof curb.

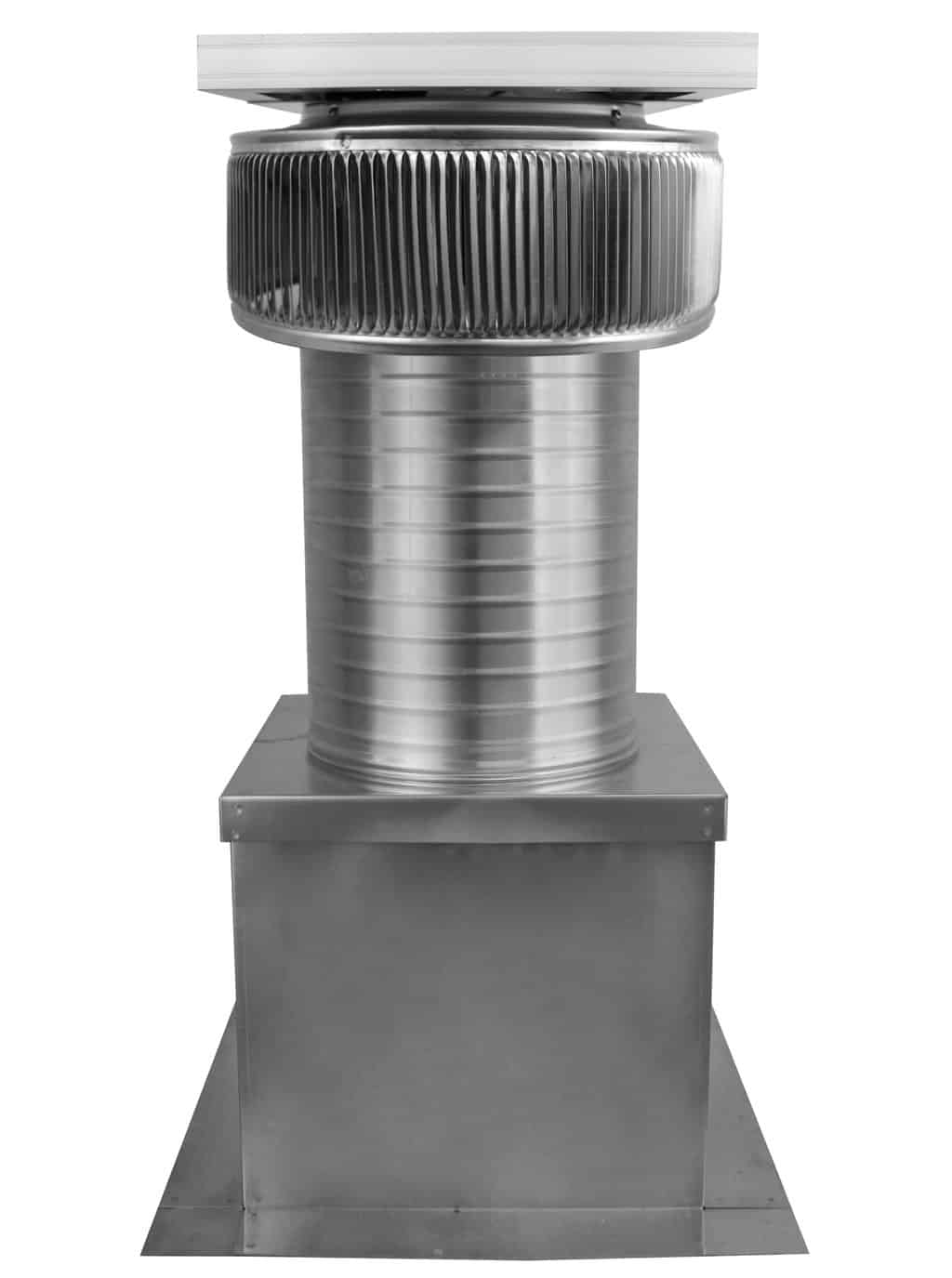

This solar exhaust fan has a curb mount flange, which allows easy installation on AVP's prefabricated roof curbs or any other roof curb as long as the dimensions are 13 3/8 inches x 13 3/8 inches and square in shape. If the curb is to be covered in roofing material, then the curb should measure 13 inches x 13 inches.

The 10-inch solar exhaust fan with curb mount flange is compatible with AVP's roof curbs in height 6-inch- 8-inch and 12-inch tall roof curbs.

The 10-inch solar exhaust fan with curb mount flange is compatible with AVP's insulated roof curbs in heights 6-inch- 8-inch and 12-inch tall roof curbs.

How it works:

The Aura Solar Exhaust Fan works off of direct sunlight. This solar exhaust fan uses wind to power the ventilator on cloudy days and evenings.

The fan continuously exhausts air when sunlight is unavailable due to the Venturi Effect. This occurs when the wind blows against the outer louvers to create an upward draft, allowing air to flow freely out of the vent. Even the slightest breeze can create exhaust ventilation to draw air out of the fan.

The 1/8-inch louvers prevent rain, snow, insects, and animals from entering inside the fan.

For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pending

Colors

Pending

Pending

Pending

Calculate number of Model  ASF-10-C12-CMF  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
