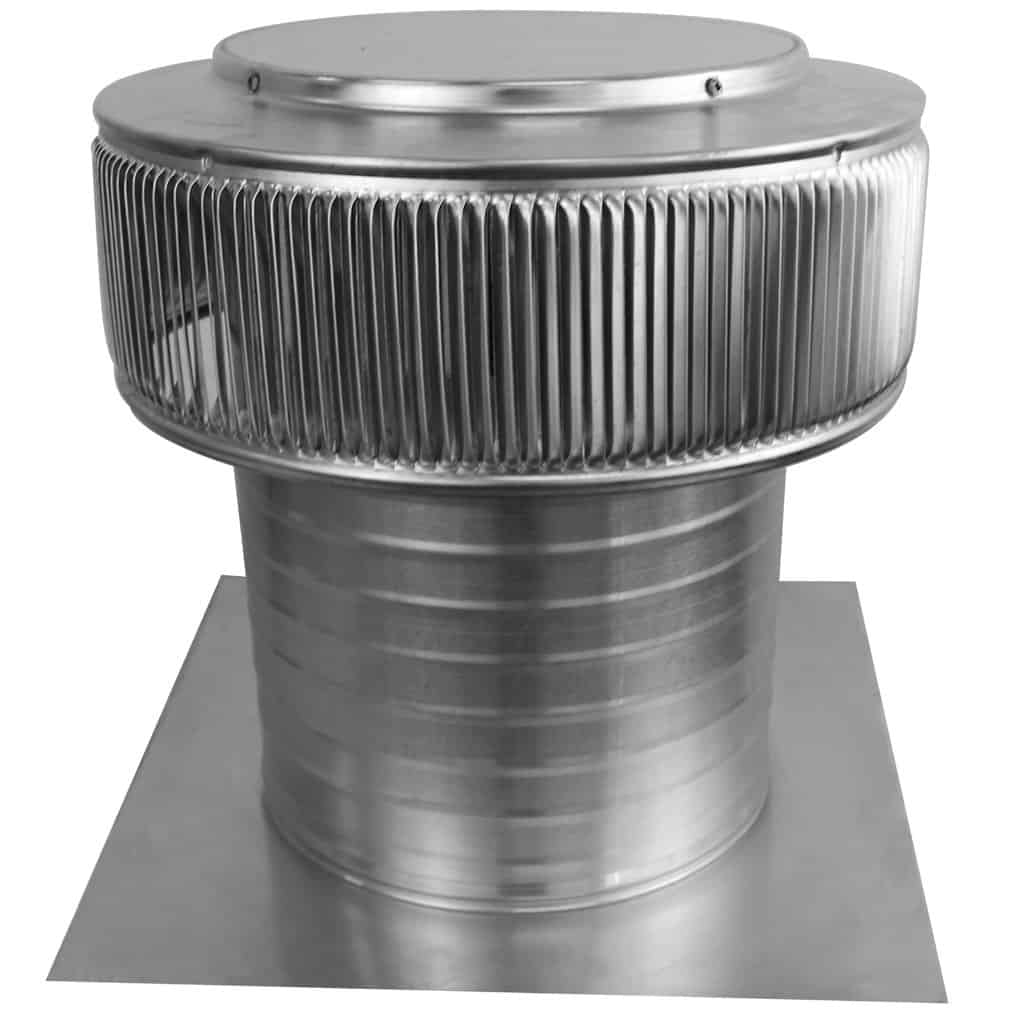

10" Roof Vent | Aura Gravity Ventilator | Model AV-10-C8

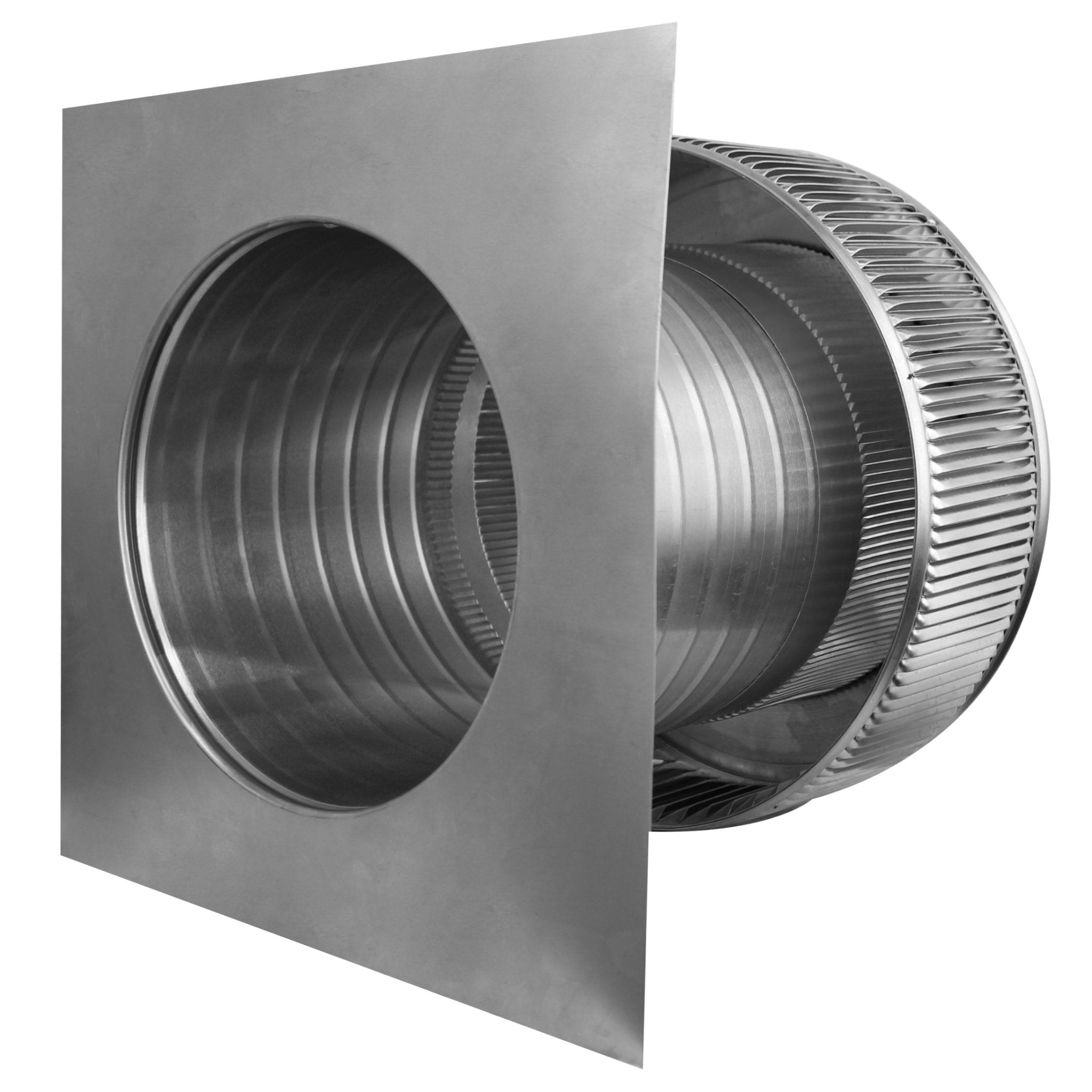

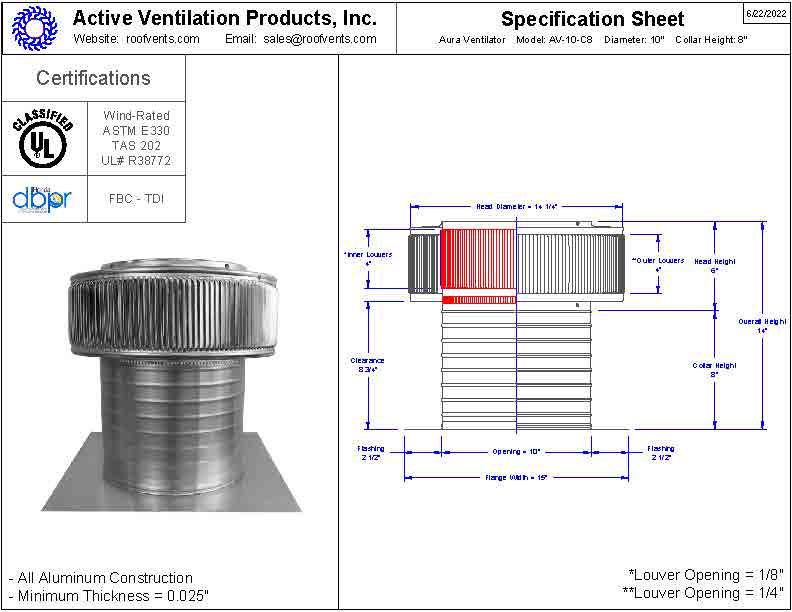

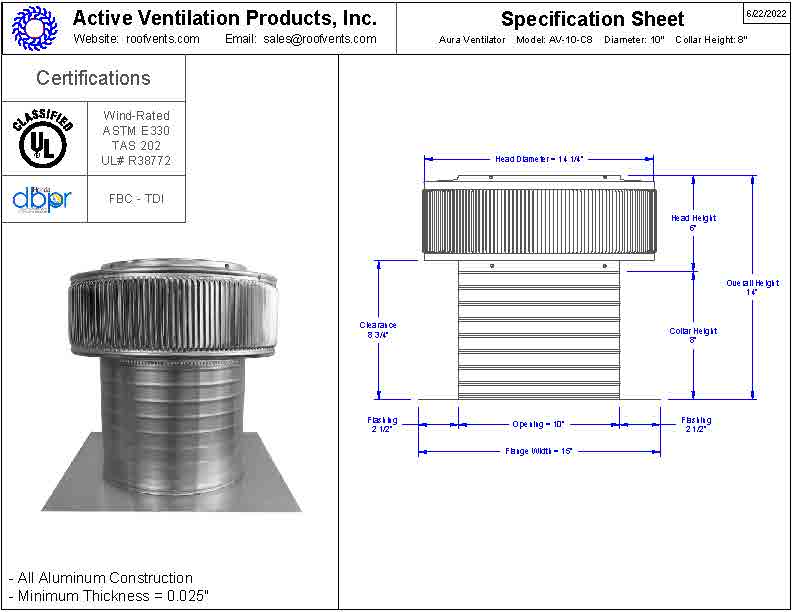

The 10-inch Aura Gravity Ventilator is 10 inches in diameter and has an 8-inch tall collar. The model AV-10-C8 has 78 inches of Net Free Area (NFA). All 10-inch gravity ventilators have a standard 15" x 15" square flange flashing.
Benefits:
- Keeps your home comfortable and energy-efficient
- Removes hot air during the summer and moist air during the winter from the attic
- Prevents rain & snow, insects & animals from entering the vent
- Aerodynamic design withstands harsh weather and wind forces beyond 200 mph
- The vent head is removable for easy installation
- Noiseless – does not require electricity to exhaust air
Where to Install:
Exhaust vents with a collar height of 8 inches or greater are typically used for low-slope or flat-roof ventilation. However, if the roof slopes low, the vent should be on the upper portion of the roof. This roof vent can be installed on a 0/12 to 5/12 pitch roof in all climate zones. See the installation guides for help installing.
The 10-inch roof vent is ideal for ventilating low-slope or flat roofs. It removes heat during the summer and moisture during the winter to provide year-round ventilation.
How it Operates:
The Aura Gravity Ventilator works like a roof turbine with no moving parts.
Aura Gravity Ventilators rely on the Venturi Effect, which occurs when the wind blows against the outer louvers. This creates a spinning upward draft through the vent, allowing air to flow dynamically. Even the slightest breeze can create exhaust ventilation to draw out air from the attic.
The Aura Gravity Roof Vents are made of durable, rust-free aluminum. The vent head has a flat, one-piece spun lid that prevents rain and snow from entering the vent. The round aerodynamic design can withstand harsh weather and wind forces beyond 200 mph. Therefore, wind speeds of 11 mph for a 10-inch Gravity Ventilator produce 248 CFM of air exhaust for attic ventilation.

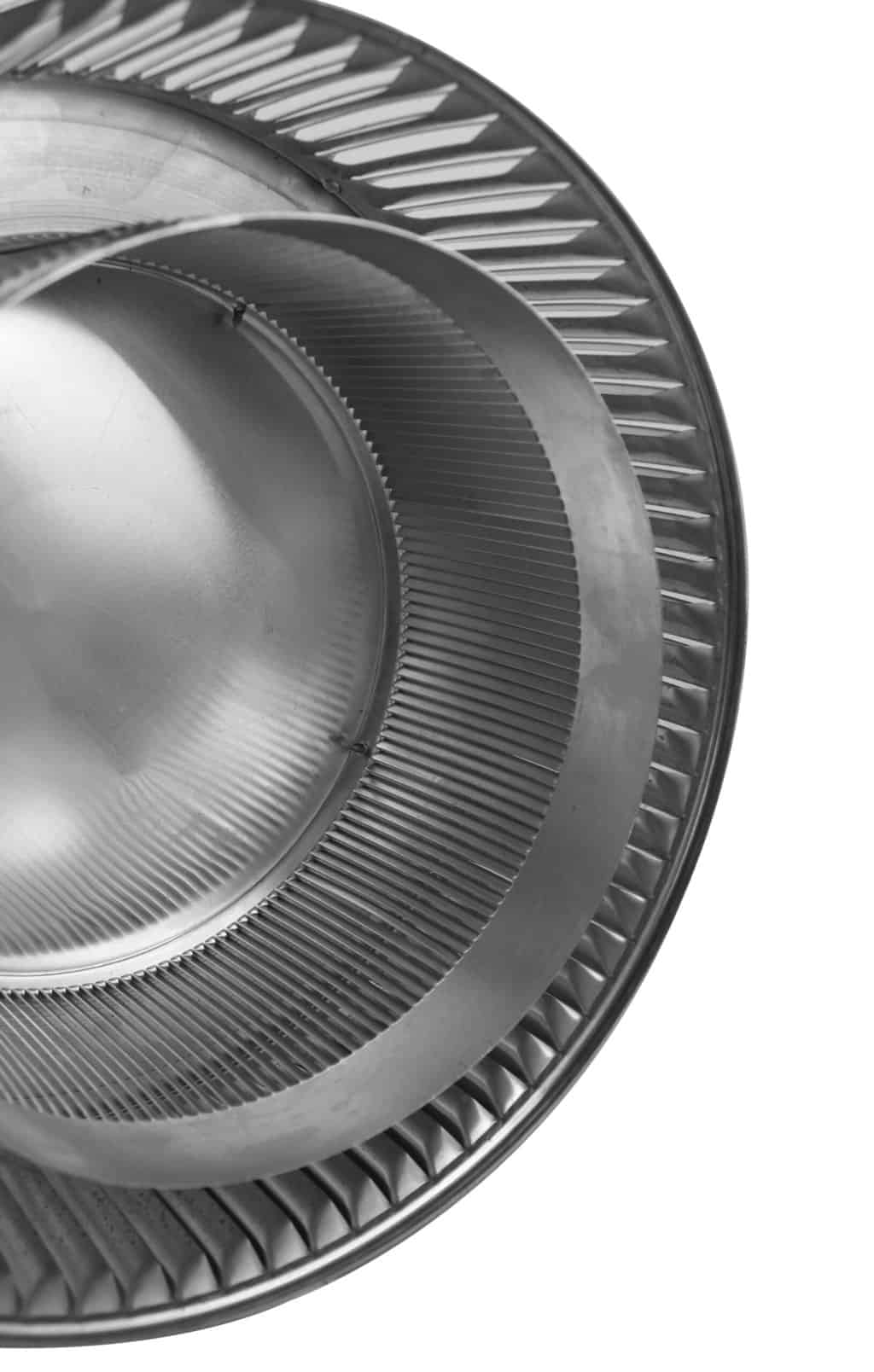

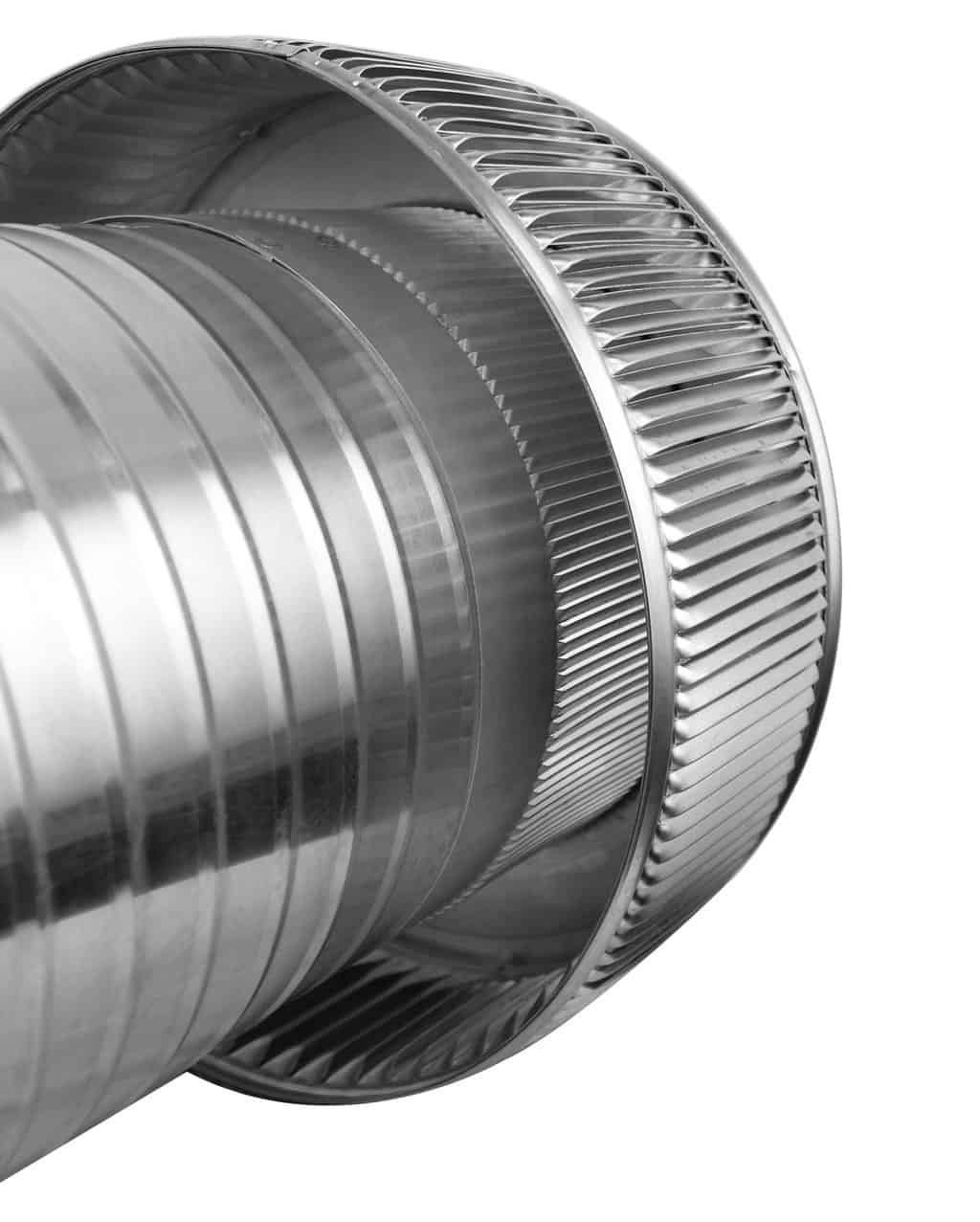

The inner louvers of the roof vent prevent insects and animals from entering the attic. The louvers also allow the air to flow freely to the outside.
AVP’s Aura Gravity Vents are UL-listed and rated up to 50+ PSF or wind pressure above 200 MPH. They are certified by the Texas Department of Insurance, & Florida State Approved.
If you have any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770.
