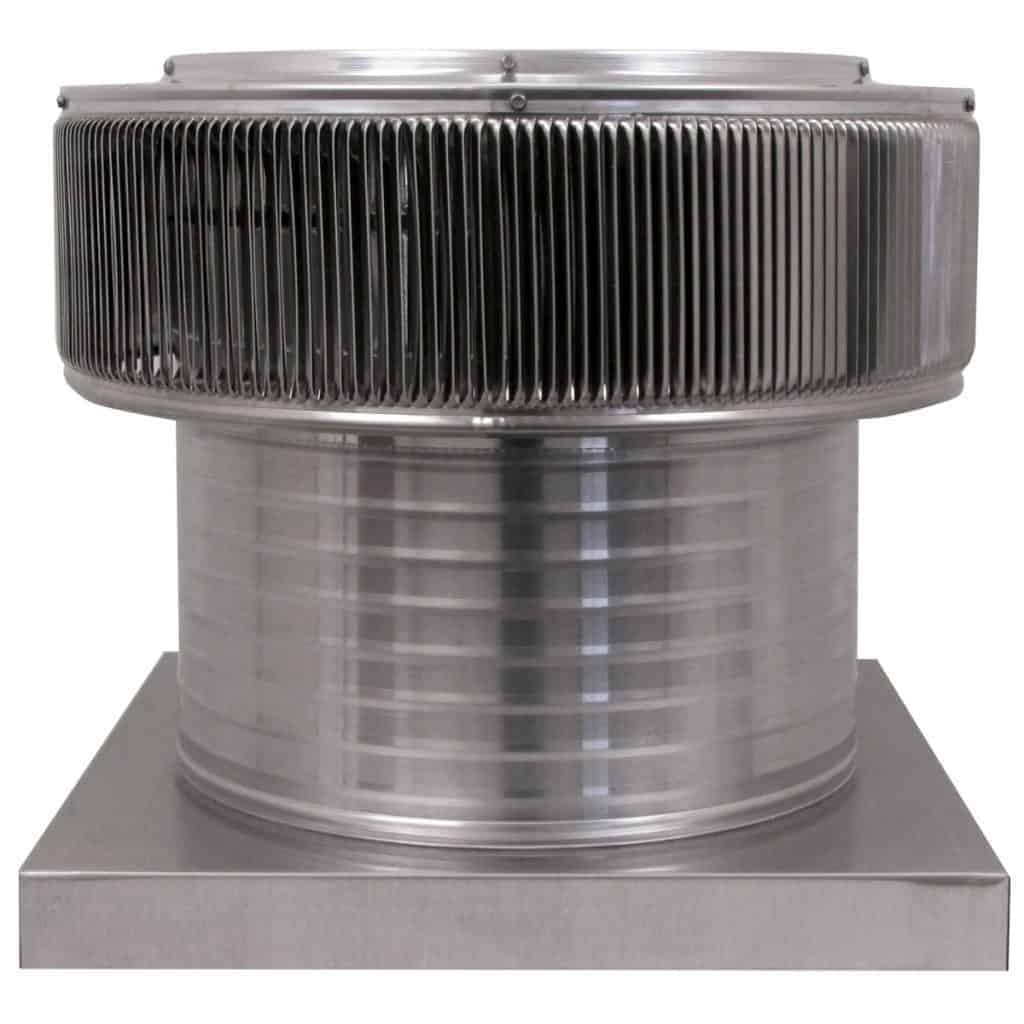

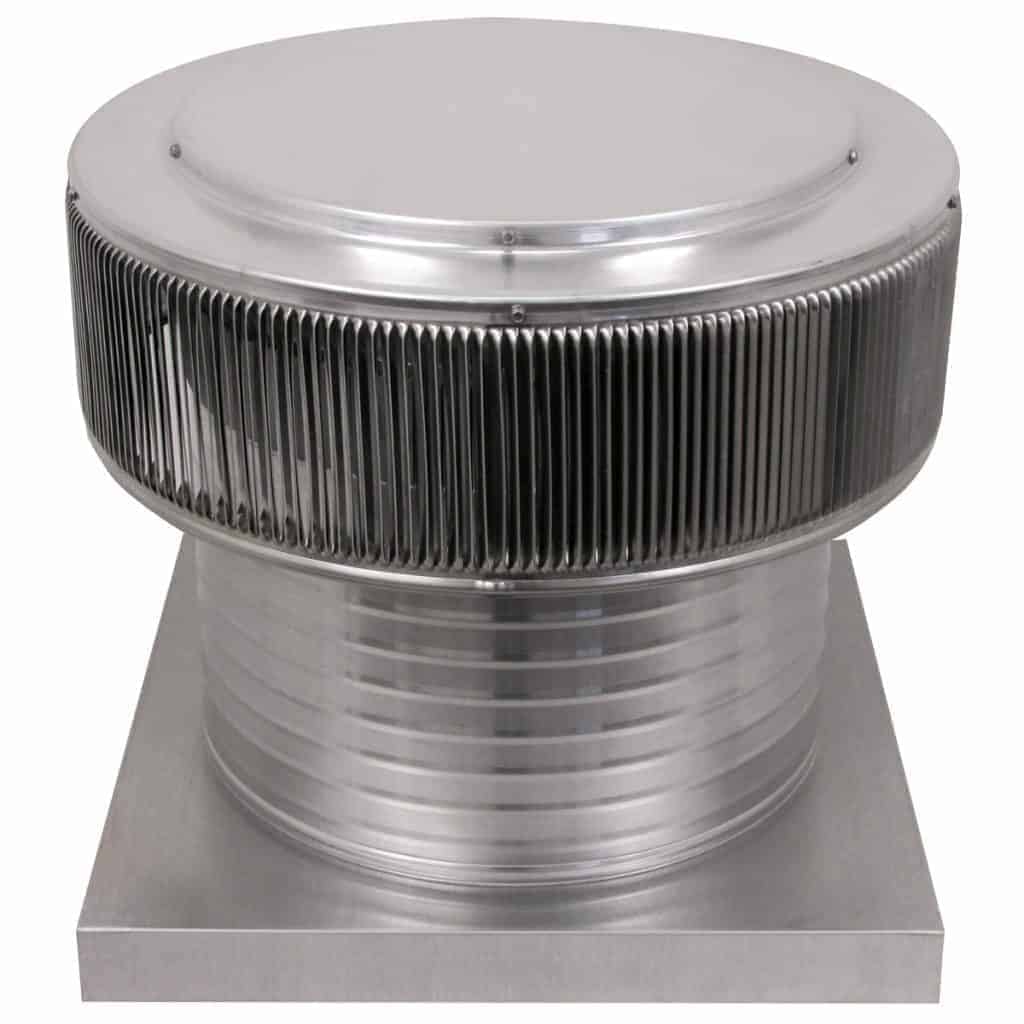

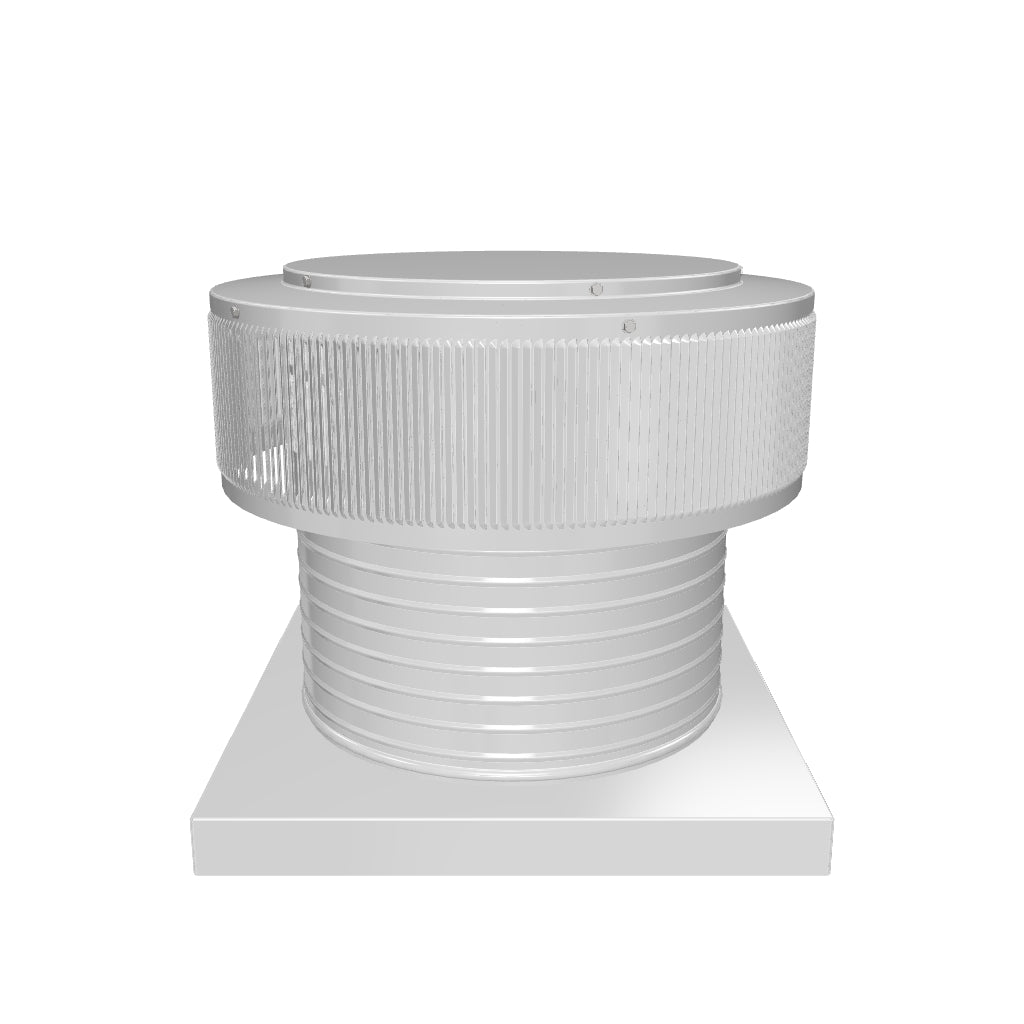

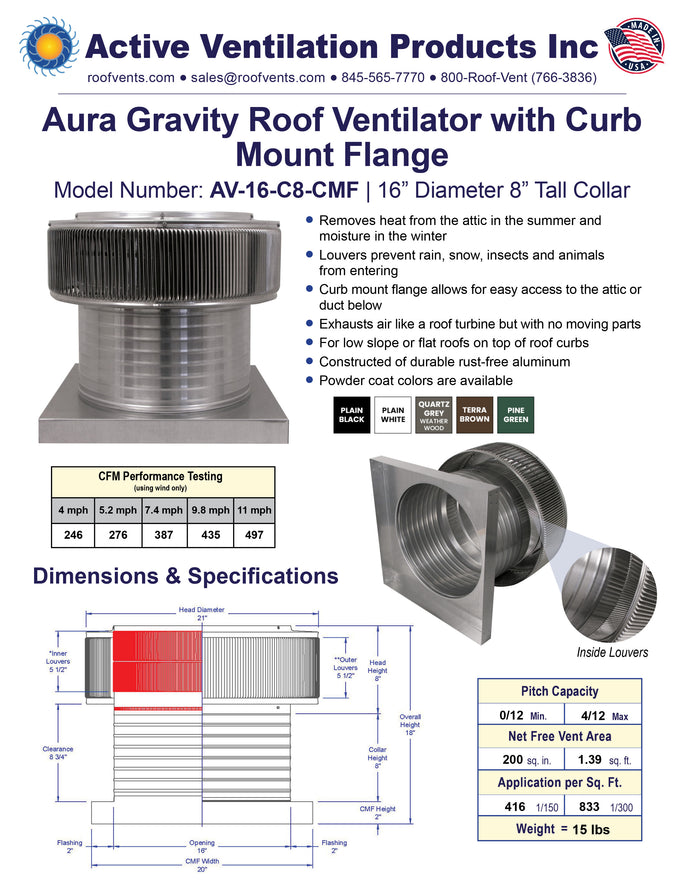

16-inch Aura Gravity Ventilator with Curb Mount Flange | Model AV-16-C8-CMF
The 16-inch Aura Gravity Ventilator with Curb Mount Flange is 16 inches in diameter and has an 8-inch tall collar. The model AV-16-C8-CMF has 200 inches of Net Free Area (NFA). All 16-inch gravity ventilators have a standard 20" x 20" square curb mount flange.
Benefits:
- Keeps your home or building comfortable and energy-efficient
- Removes heat from the attic in the summer and moisture in the winter

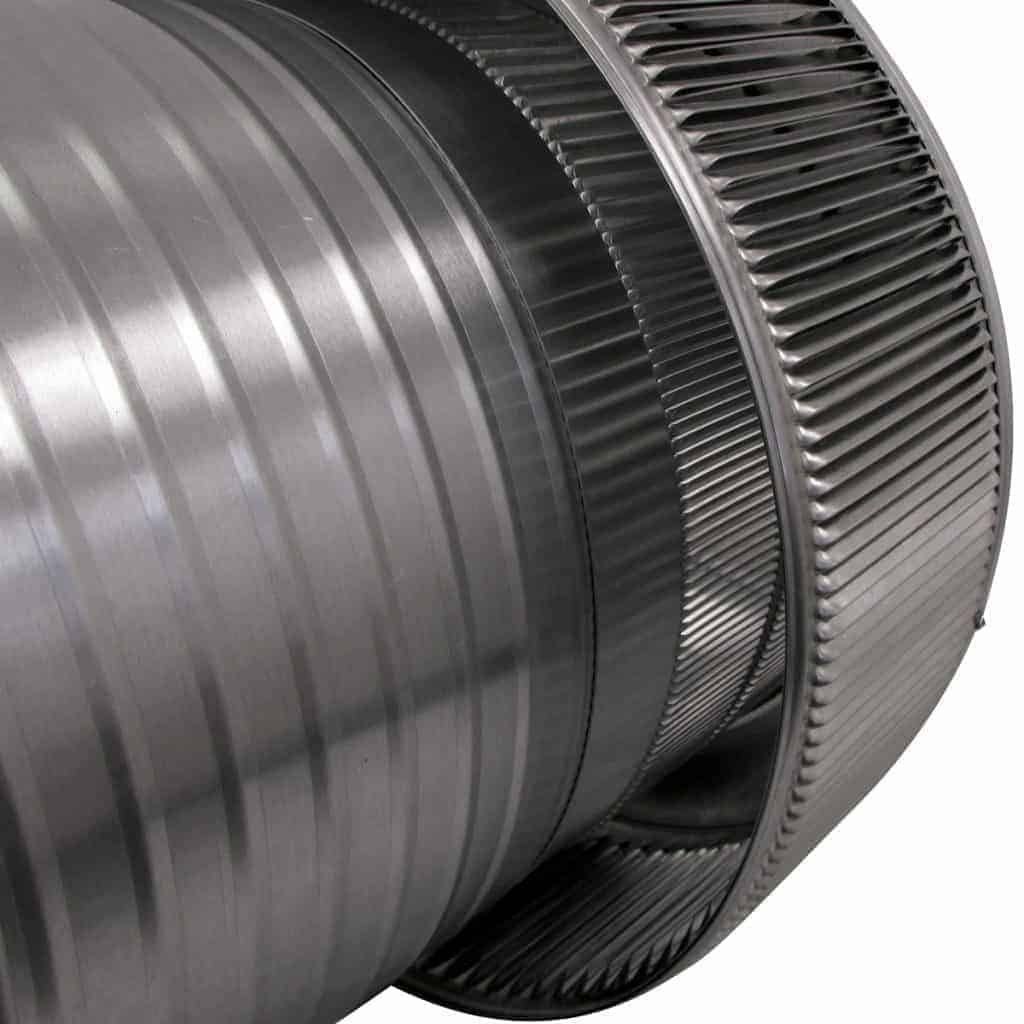

- Inner louvers prevent insects and animals from entering the vent
- Round aerodynamic design can withstand harsh weather and wind forces beyond 200 mph

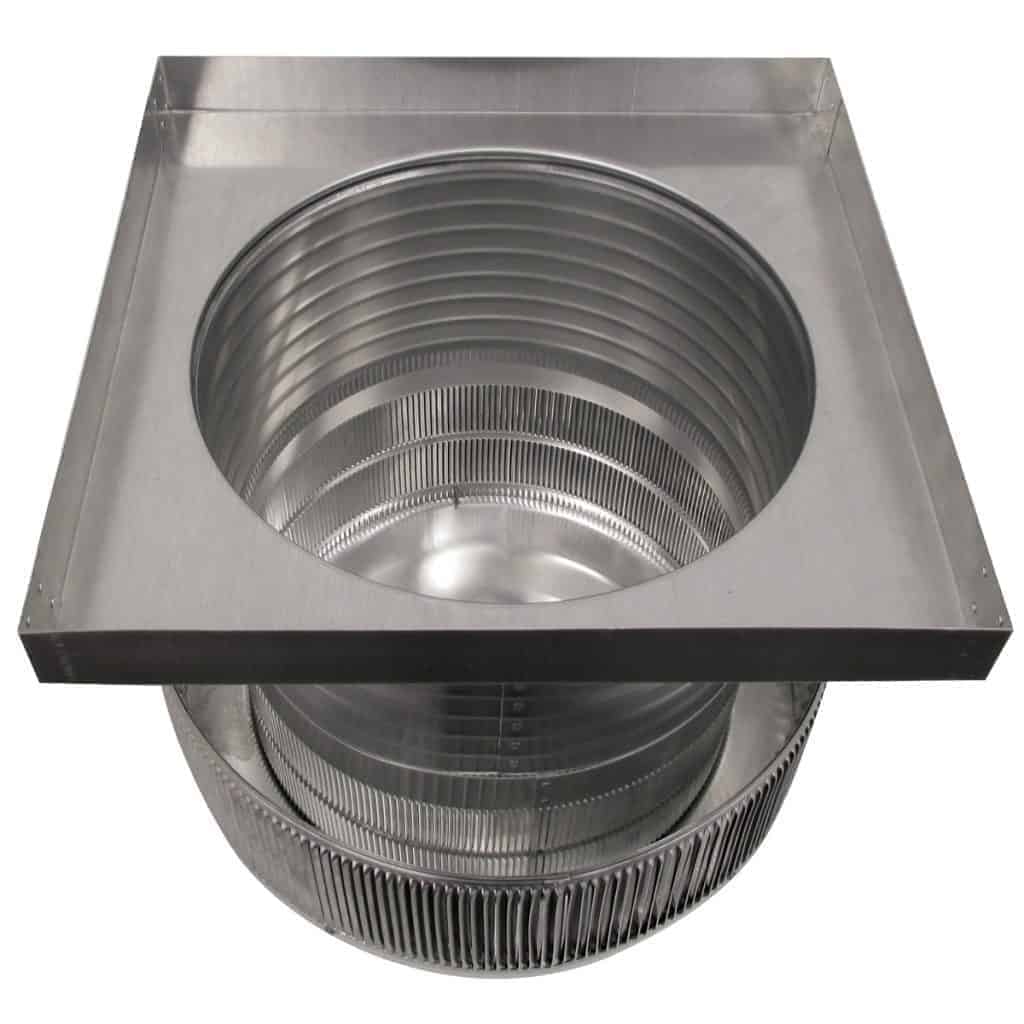

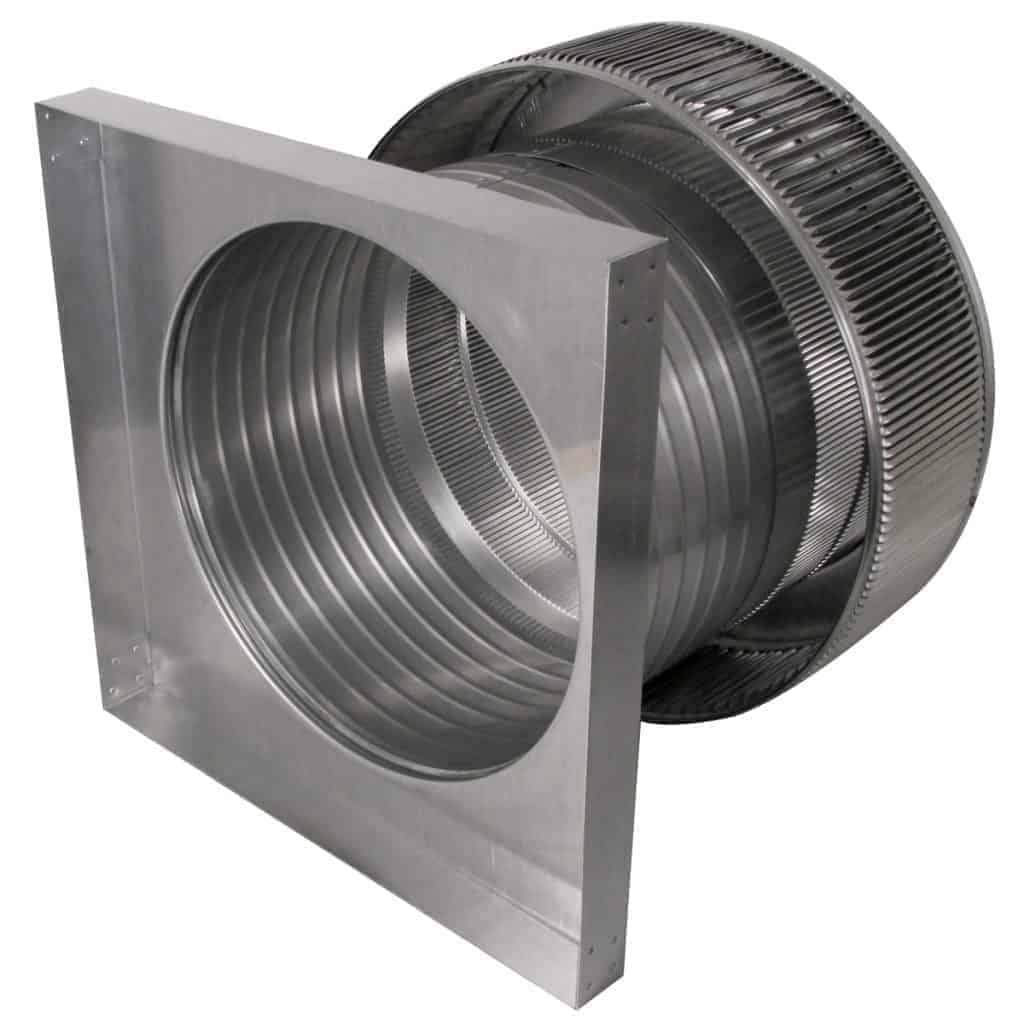

- The curb mount flange allows for easy access to the attic or duct below
- Noiseless – does not require electricity to exhaust air
Installation: On a roof curb
This roof vent has a curb mount flange, which allows easy installation on AVP's prefabricated roof curbs or any other roof curb as long as the dimensions are 19 7/8 inches x 19 7/8 inches and square in shape. If the curb is to be covered in roofing material, then the curb should measure 19 1/2 inches x 19 1/2 inches.
The 16-inch Aura Gravity Vents with curb mount flange are compatible with AVP's roof curbs in heights 6-inch- 8-inch and 12-inch- and 18-inch tall roof curbs.
The 16-inch Aura Gravity Vents with curb mount flange are compatible with AVP's insulated roof curbs in heights 6-inch- 8-inch and 12-inch- and 18-inch tall roof curbs.
How it Operates:
The Aura Gravity Ventilator works like a roof turbine with no moving parts.
Aura vents rely on the Venturi Effect, which occurs when the wind blows against the outer louvers to create an upward draft. As a result, air is forced to flow out of the vent, removing heat from the attic in the summer and moisture in the winter. This allows for year-round ventilation on low-slope or flat roofs.
Even the slightest breeze can create exhaust ventilation to draw air out of the gravity vent. Therefore, wind speeds of 11 mph for a 16-inch Gravity Ventilator produce 497 CFM of air exhaust for attic ventilation.
Aura Gravity Vents are UL-listed, rated up to 50+ PSF or wind pressure above 200 MPH, and certified by the Texas Department of Insurance and Florida State Approved.
If you have any questions, email the sales team at sales@roofvents.com or call 845-565-7770. The roof pitch diagram will help you determine your roof's pitch.
