Model AV-8-RF | Aura Retrofit Vent | 8" Diameter

Model AV-8-RF | Aura Retrofit Vent | 8" Diameter

AV-8-RF

843951001210

The Aura Gravity Vent Retrofit

Price: $29.00 USD

$29.00 USD
Sale Sold out

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$10

  • Plain Black STANDARD+$10

  • Pine Green STANDARD RAL 6028+$10

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$10

  • Terra Brown STANDARD RAL 8028+$10

-- Please Select --
Color

View full details
Model AV-8-RF | Aura Retrofit Vent | 8" Diameter

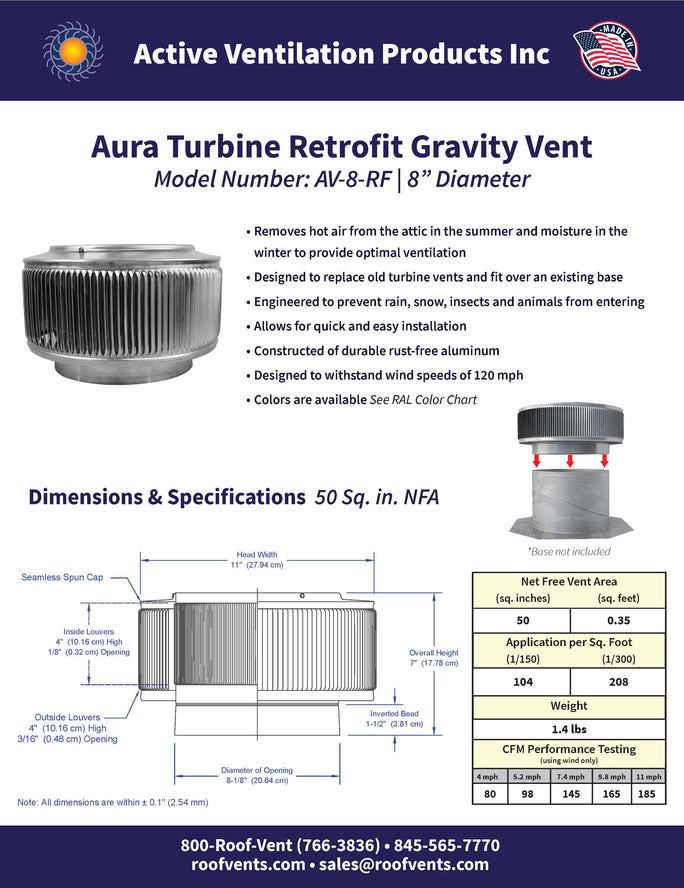

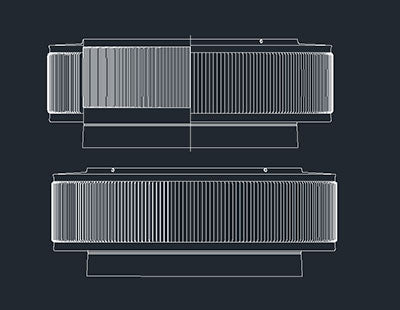

Drawings
Model AV-8-RF | Aura Retrofit Vent | 8" Diameter
Drawings
Model AV-8-RF | Aura Retrofit Vent | 8" Diameter
Drawings
Model AV-8-RF | Aura Retrofit Vent | 8" Diameter Model AV-8-RF | Aura Retrofit Vent | 8

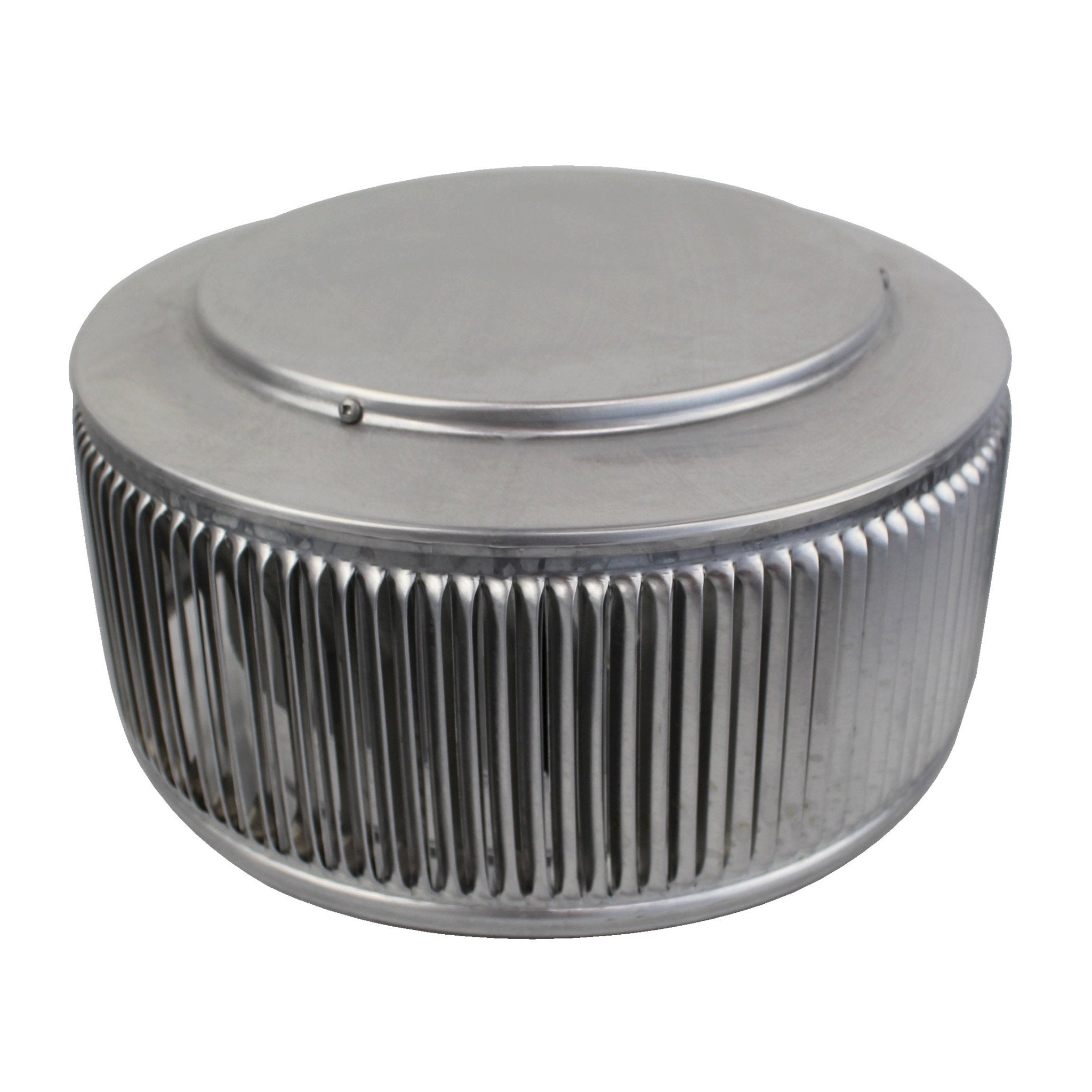

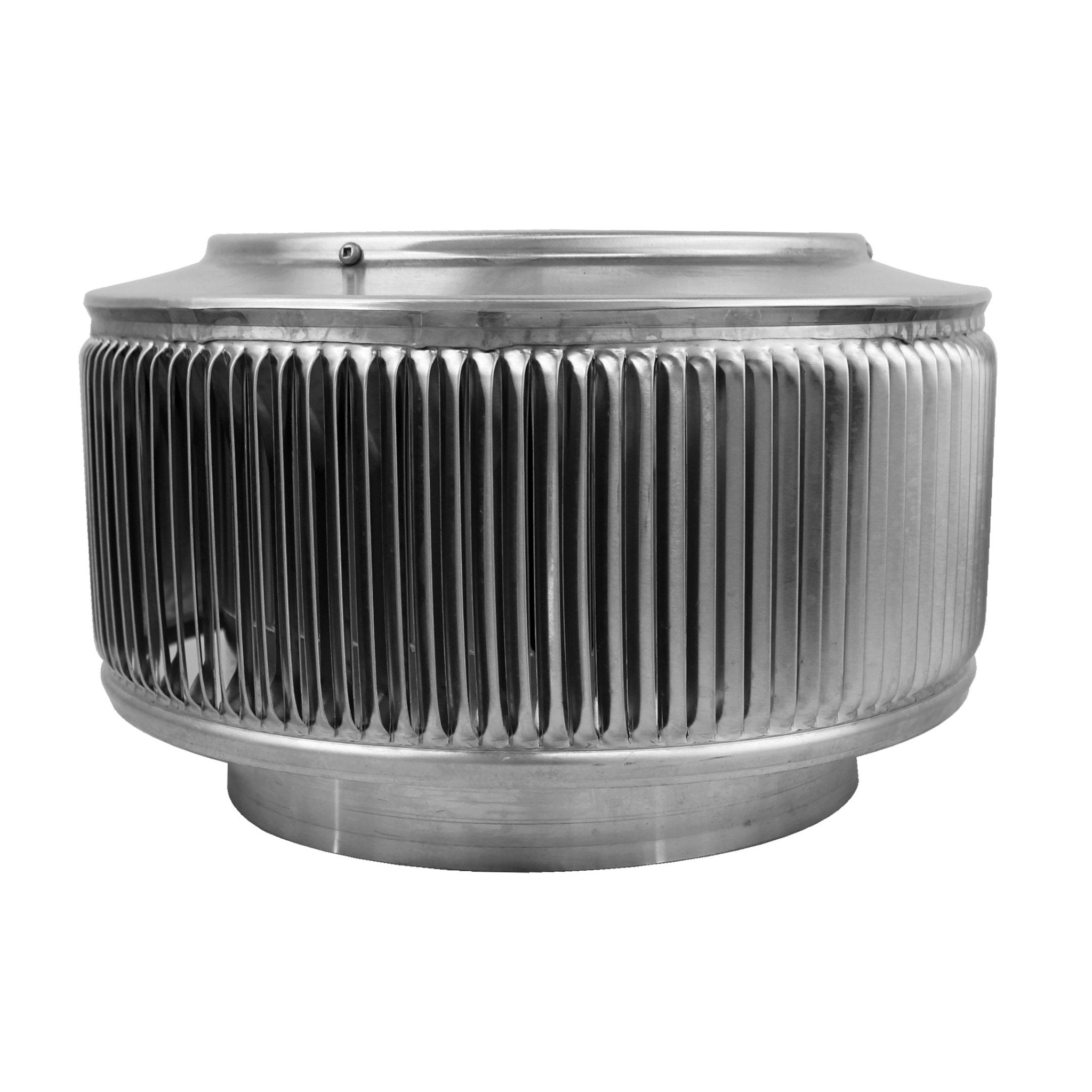

The 8-inch Aura Gravity Retrofit Vent | Model AV-8-RF

The 8-inch Aura Gravity Retrofit Vent is for replacing existing attic vents. The AV-8-RF is 8 inches in diameter and has 50 inches of Net Free Area (NFA).

This roof vent will fit over an existing base of the same diameter. It is a perfect replacement for turbine vent heads. Turbine vents frequently stop turning entirely due to corrosion, allowing weather to enter the attic. Aura gravity vents have a fixed louver design that will prevent rain or snow from entering the vent for the entire life of the roof.

Installation:

Since the Aura Gravity Retrofits fit over an existing base of the same diameter, this allows easy installation without damaging the roofing material. The vent removes heat from the attic in the summer and moisture in the winter, allowing for proper ventilation. This retrofit comes in an array of sizes to fit all roofing needs.

How it works:

The Aura Gravity Ventilator works like a roof turbine with no moving parts.

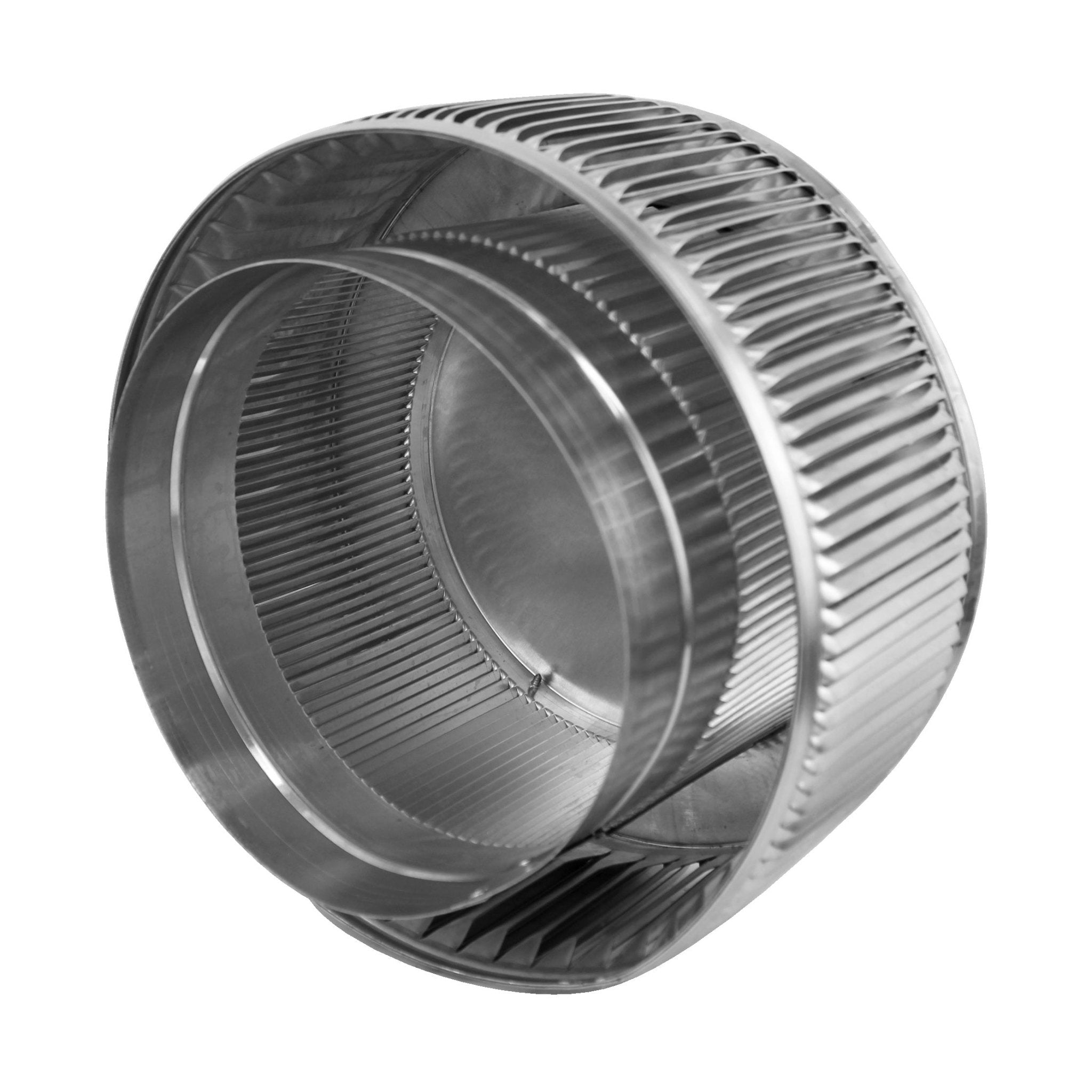

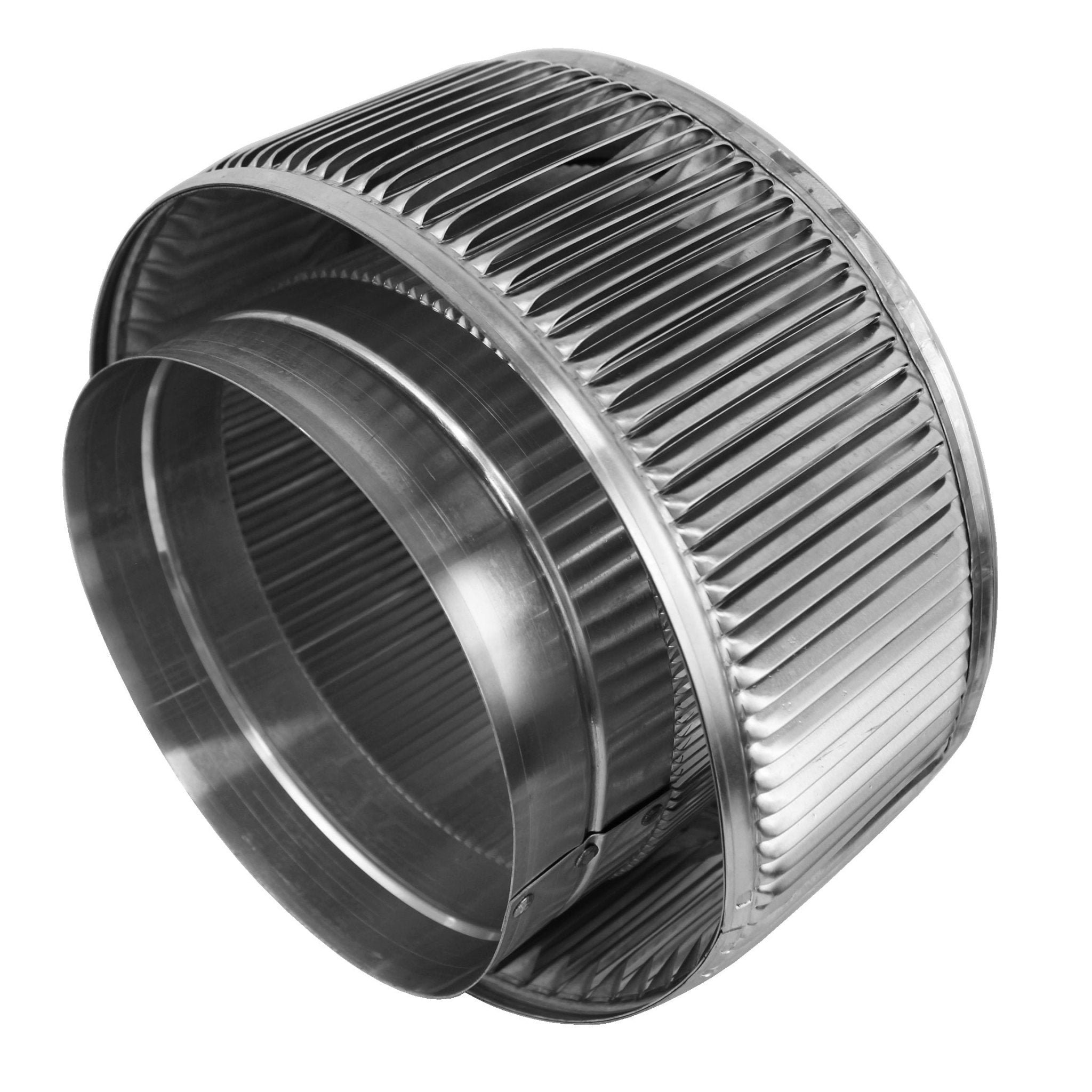

Aura Gravity Ventilators rely on the Venturi Effect. When the wind blows against the outer louvers, it creates an upward draft, allowing air to flow out of the vent.

Even the slightest breeze can create exhaust ventilation to draw air out of the gravity vent. In addition, the round design is aerodynamic to withstand wind speeds up beyond 200 mph.

For any questions please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Installation
Colors

Pending

Pending

Pending

Pending

Calculate number of Model  AV-8-RF  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
