Under Eave Vent - Soffit Vent | 10" Wide | 10" Long

Under Eave Vent - Soffit Vent | 10" Wide | 10" Long

SV-W10-L10

Under Eave Soffit Air Intake Vent

Price: $5.50 USD

$5.50 USD
Sale Sold out

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$2.75

  • Plain Black STANDARD+$2.75

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$2.75

  • Terra Brown STANDARD RAL 8028+$2.75

  • Pine Green STANDARD RAL 6028+$2.75

-- Please Select --
Color

View full details
Aluminum Unpainted

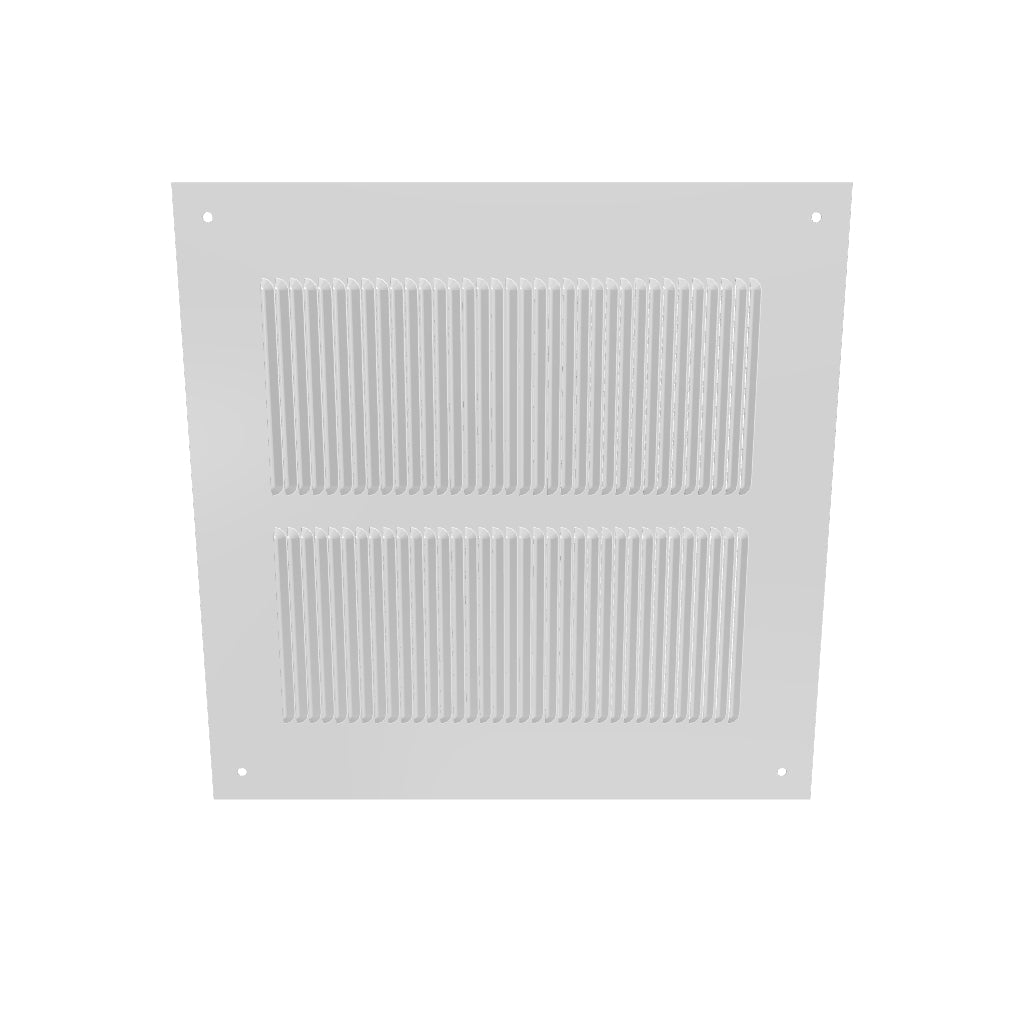

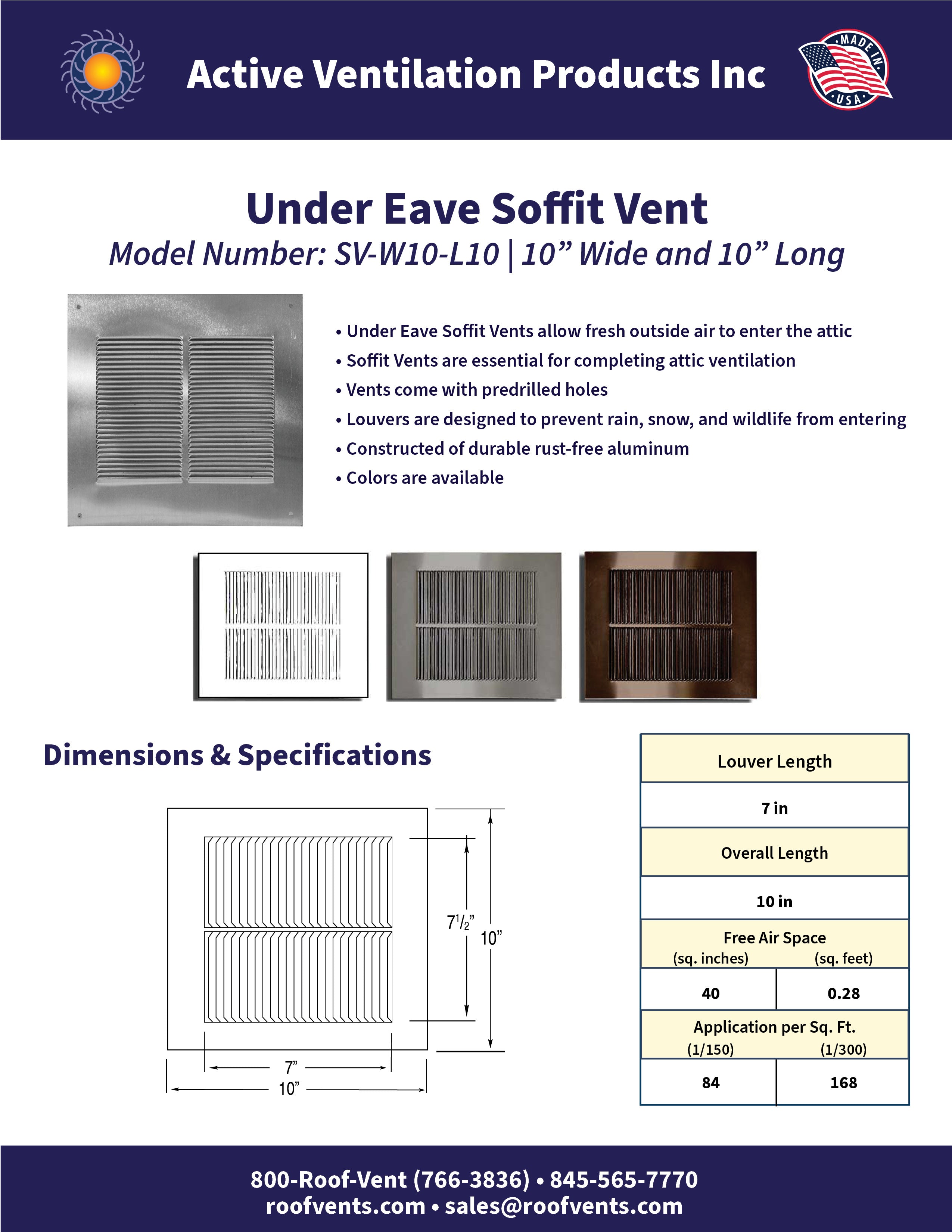

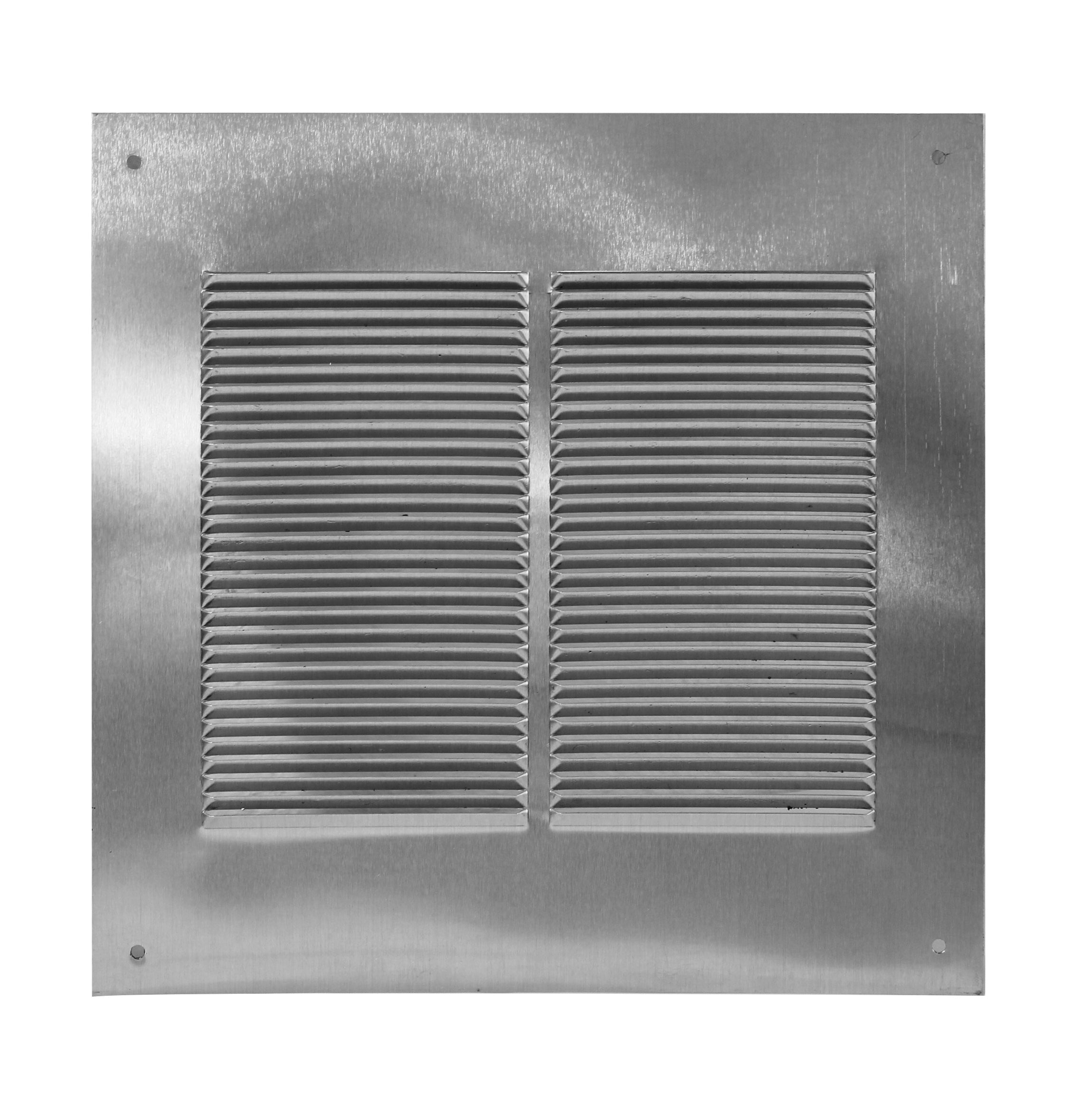

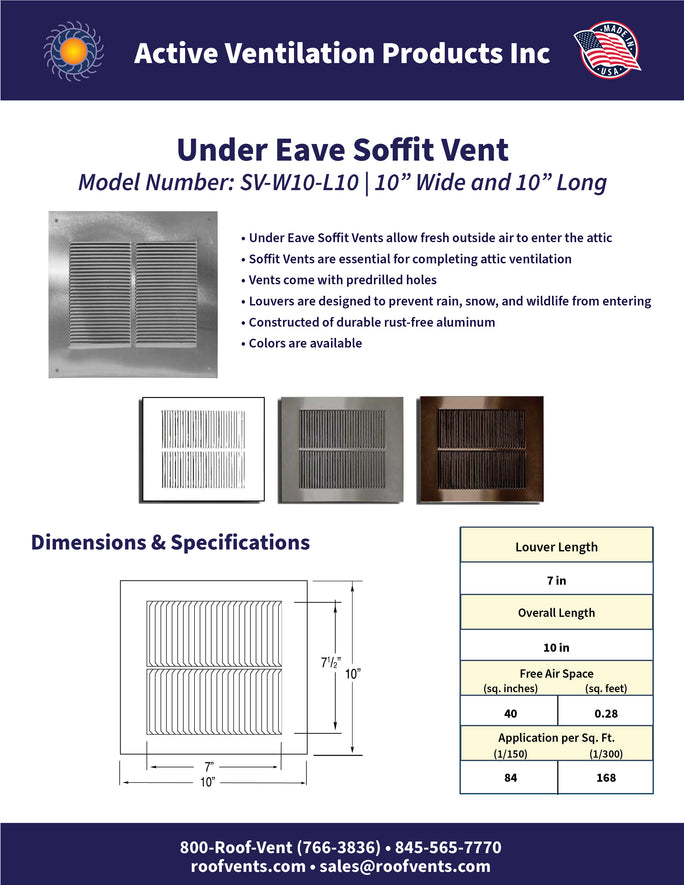

Under-Eave Soffit Vent | Model SV-W10-L10

The Under-Eave Soffit Vent is an air intake vent. When properly combined with exhaust vents, soffit vents allow fresh air into the attic to create proper airflow.

The model SV-W10-L10 is 10 inches long with __ inches of Net Free Area (NFA).

Installation:

Soffit vents are essential for proper attic ventilation. They are installed underneath the eaves of a roof. Attic ventilation is key to a durable and energy-efficient home.

Allowing a natural flow of outdoor air to circulate in the attic helps to achieve proper ventilation. This helps to prevent mold from growing and keeps the insulation dry. In addition to intake air, you will also need to exhaust the stale air from the attic. See the Exhaust Vents to complete your attic ventilation.

How it works:

This attic vent is ideal for obtaining proper attic ventilation. Under-eave vents allow fresh outside air into the attic or plenum. The 1/8-inch opening between the horizontal louver blades will keep out precipitation and wildlife while allowing air to move freely.

In addition to its functionality, the louvers will keep out rain and snow. AVP also offers powder coating colors for your vents to match the color of your eaves.

There are numerous benefits to having soffit vents installed on your home.

For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770

Pending

Pending

Colors

Pending

Pending

Pending

Pending

Calculate number of Model  SV-W10-L10  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
