Model RBV-8-C2-CMF-TP | Round Back Vent | 8" Diameter | " 2" Tall Collar | Curb Mount Flange | Tail Pipe

Model RBV-8-C2-CMF-TP | Round Back Vent | 8" Diameter | " 2" Tall Collar | Curb Mount Flange | Tail Pipe

RBV-8-C2-CMF-TP

843951003368

Round Back Roof Jack with Curb Mount Flange

Price: $59.00 USD

$59.00 USD
Sale Sold out

  • Aluminum Unpainted

    Aluminum Unpainted

  • Plain White STANDARD+$13

  • Plain Black STANDARD+$13

  • Pine Green STANDARD RAL 6028+$13

  • Quartz Grey [Weatherwood] STANDARD RAL 7039+$13

  • Terra Brown STANDARD RAL 8028+$13

-- Please Select --
Color

View full details
Model RBV-8-C2-CMF-TP | Round Back Vent | 8" Diameter | " 2" Tall Collar | Curb Mount Flange | Tail Pipe

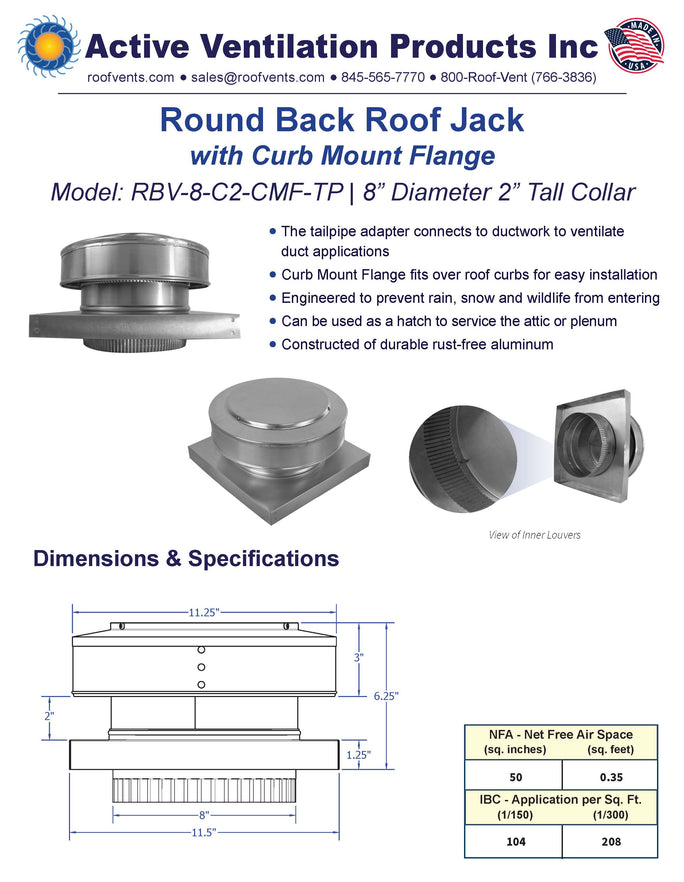

Drawings
Model RBV-8-C2-CMF-TP | Round Back Vent | 8" Diameter | " 2" Tall Collar | Curb Mount Flange | Tail Pipe
Drawings
Model RBV-8-C2-CMF-TP | Round Back Vent | 8" Diameter | " 2" Tall Collar | Curb Mount Flange | Tail Pipe Model RBV-8-C2-CMF-TP | Round Back Vent | 8

Round Back Roof Jack with Curb Mount Flange | RBV-8-C2-CMF-TP

The RBV-8-C2-CMF-TP is an 8 inch roof jack for duct ventilation on top of a roof curb. This vent has an 8 inch inner diameter, 2 inch tall collar, and a 2 inch tailpipe with a curb mount flange. The curb mount flange allows for installation on a roof curb on flat roofs to provide additional clearance.

All 8 inch roof jacks come with a standard 11.5 x 11.5 inch curb mount flange.

Installation: The Curb Mount Flange will only fit over a Roof Curb with an 11 inch outer diameter.

This 8 inch roof jack is engineered with a curb mount flange which is to be installed on top of a roof curb. In other words, this flange will only fit over roof curbs or an existing base with an 11 inch diameter. As a result, this gives the vent head extra clearance allowing for installation in all climate zones.

AVP's 8 inch roof jacks are compatible with the 6 inch tall and 12 inch tall roof curbs.

This roof jack is mainly for ventilating bathroom fans and range hoods. It allows for maximum airflow while alleviating back pressure.

How it Operates:

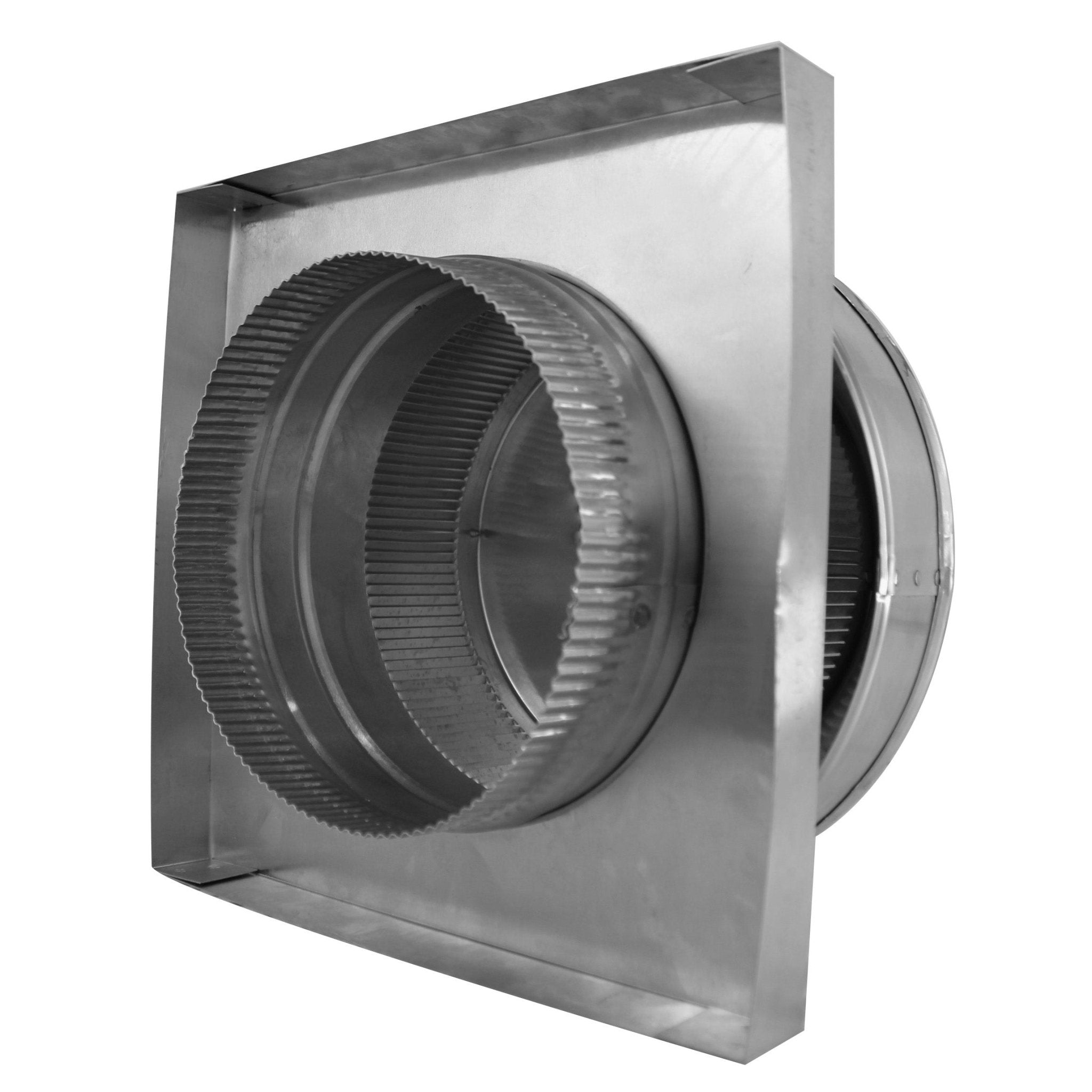

The inner louver design prevents insects and wildlife from entering the duct. It also prevents rain or snow from entering. In addition, the round design is aerodynamic to withstand wind speeds up to 200 mph. It can also be painted to match the color of the asphalt shingles.

This Round Back Roof Jack with Curb Mount Flange has an all-aluminum construction. To clarify, this means they are durable, lightweight, and will not rust.

For any questions please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770.

Installation
Colors

Pending

Pending

Pending

Calculate number of Model  RBV-8-C2-CMF-TP  Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Enter width of space to calculate area (or enter Area below)
Enter width of space to calculate area (or enter Area below)

If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here





*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
