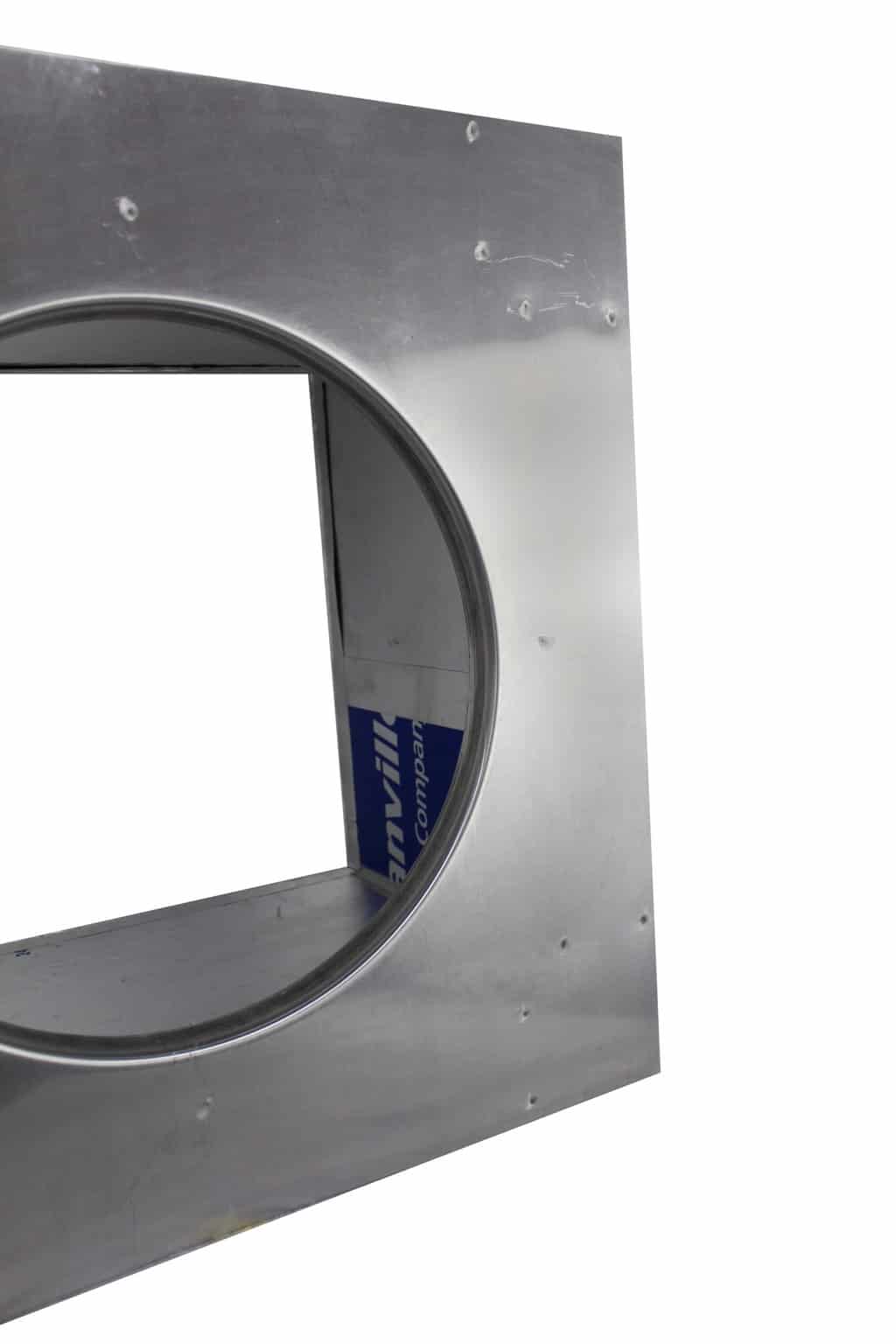

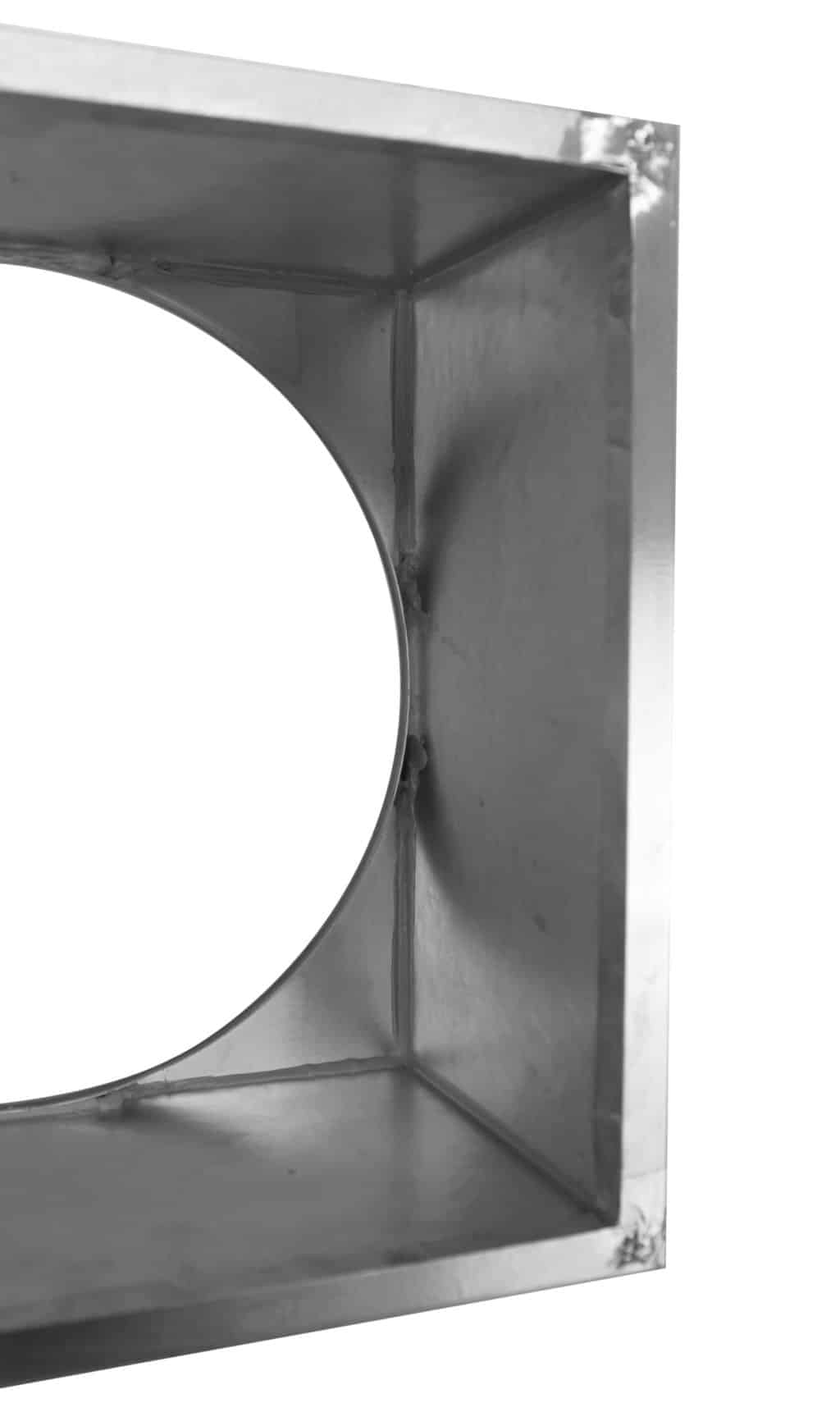

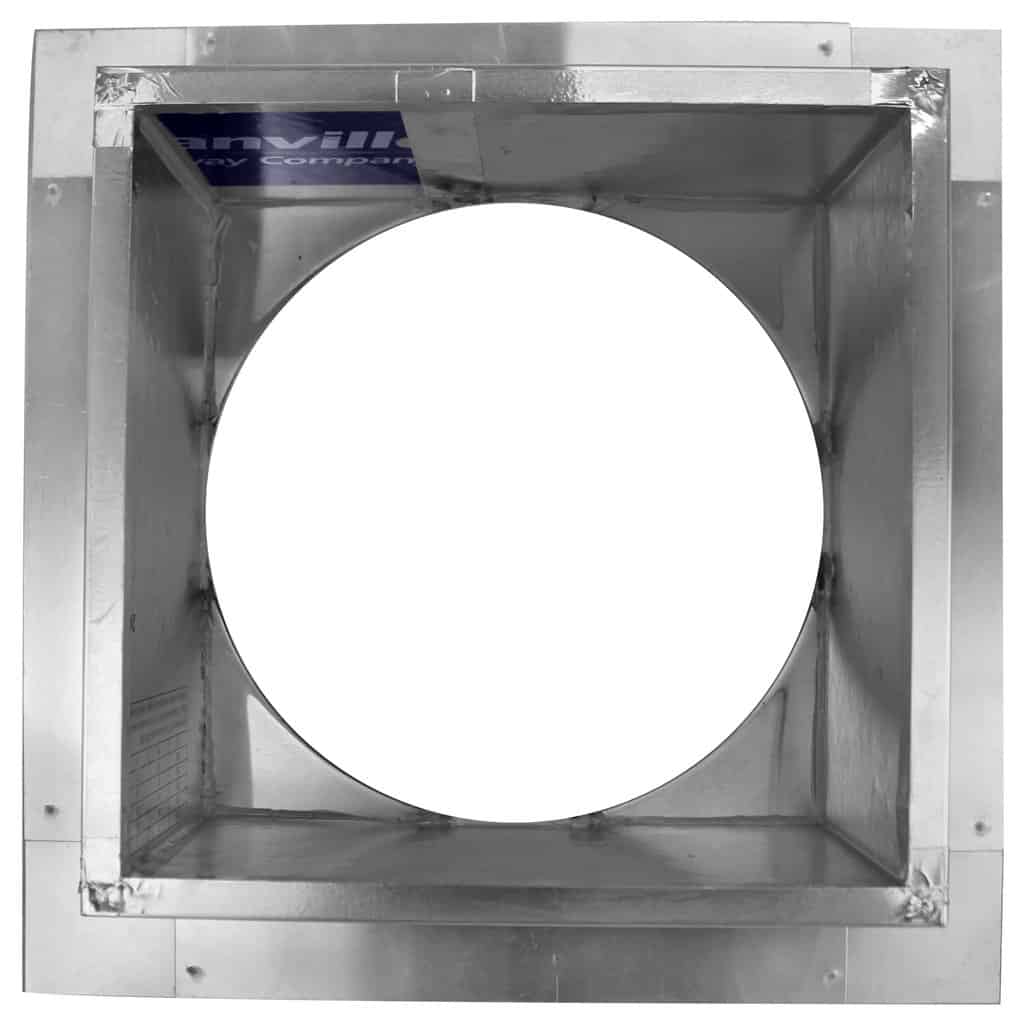

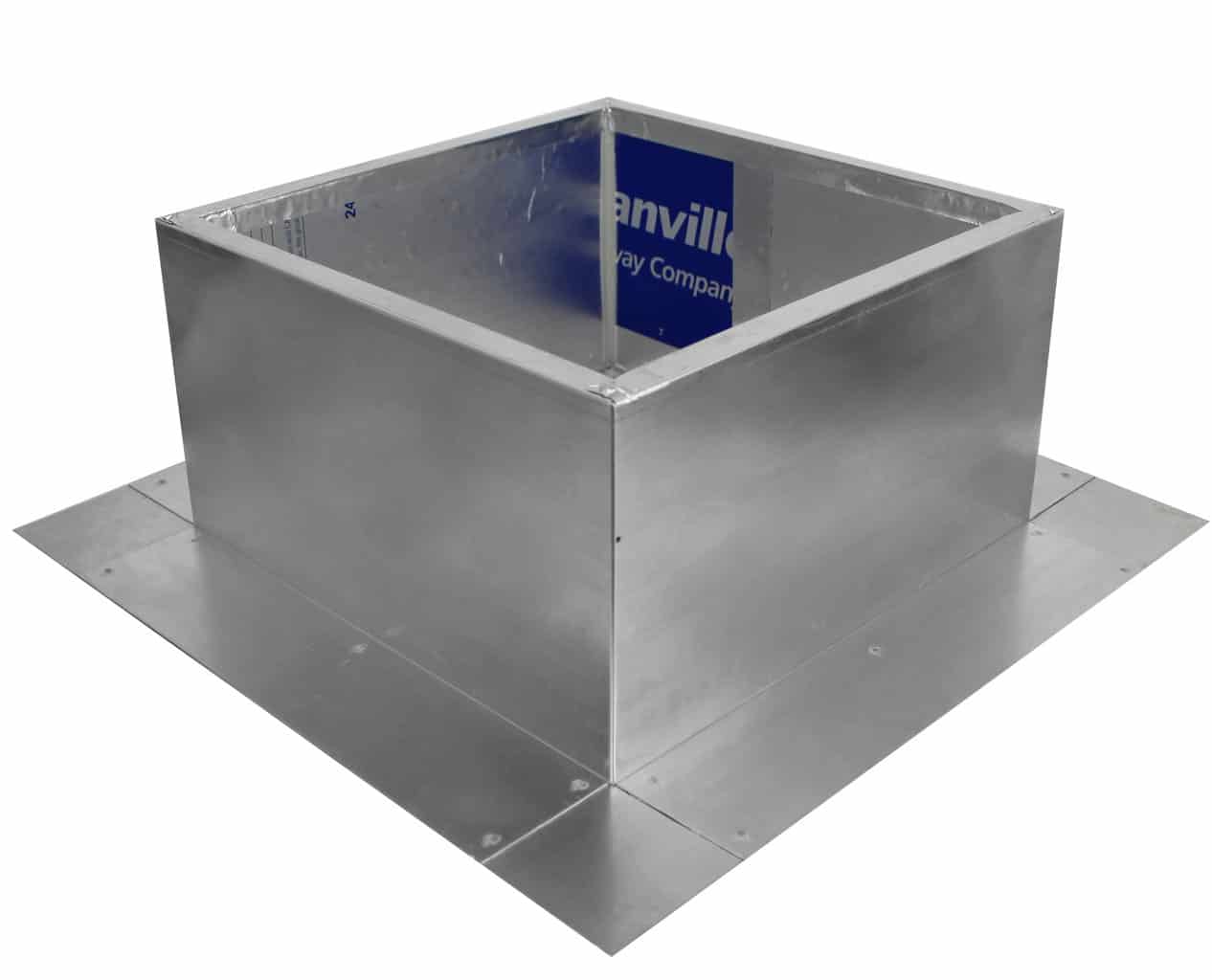

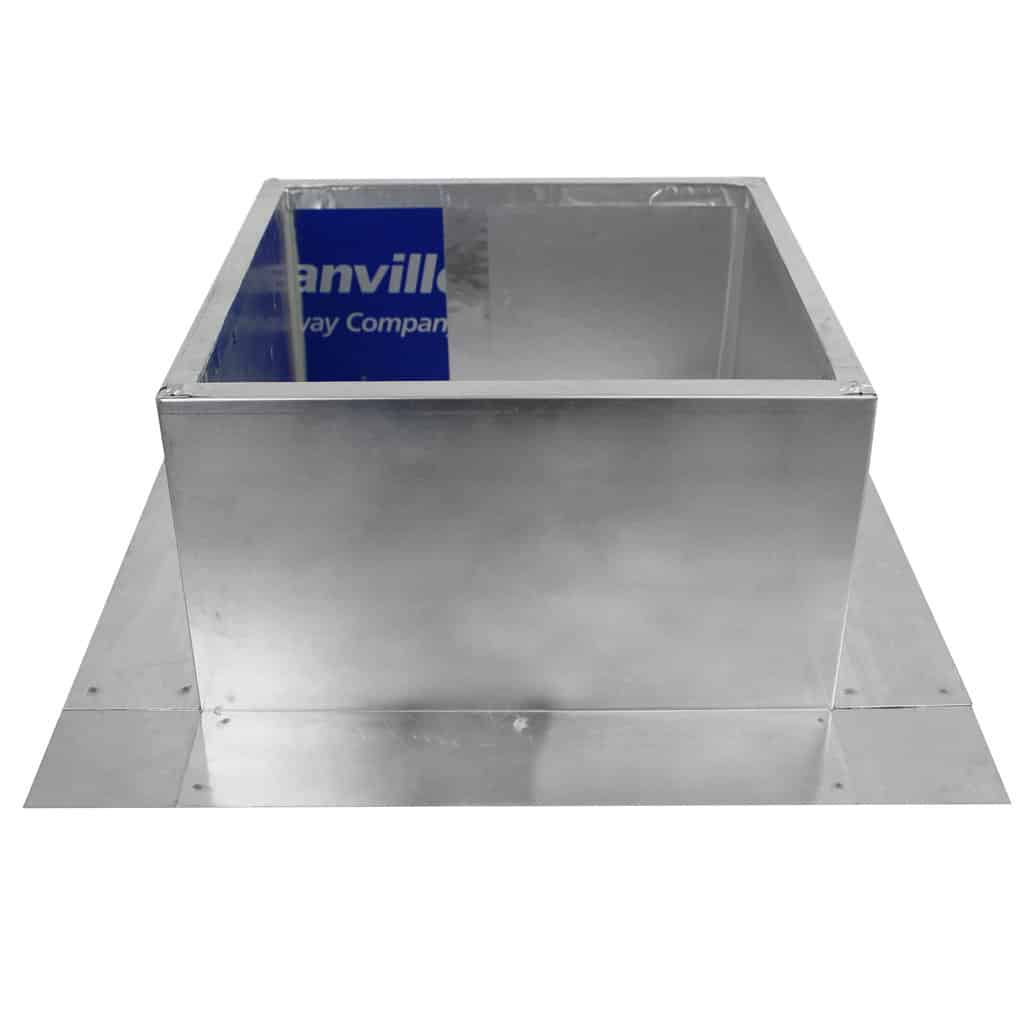

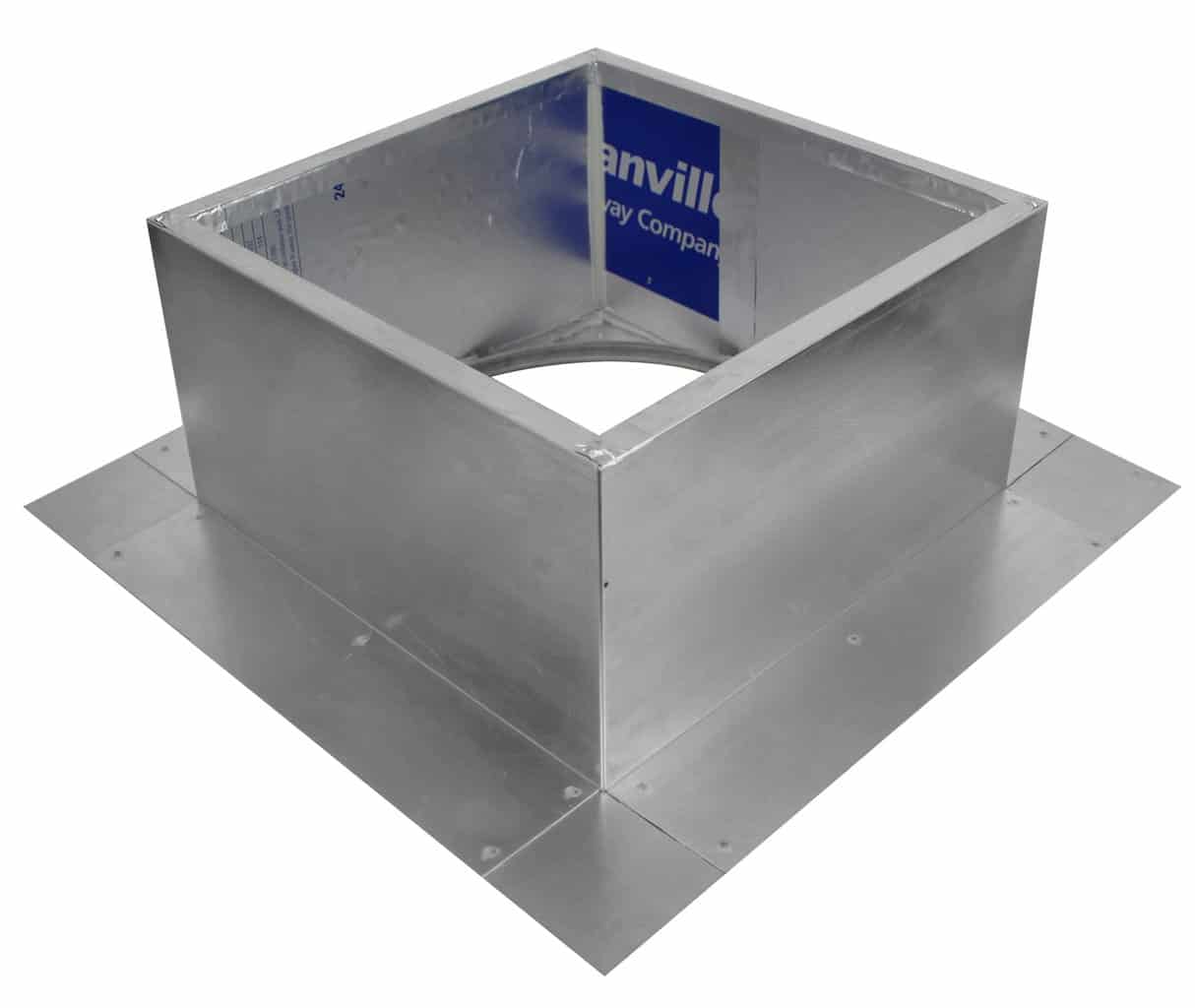

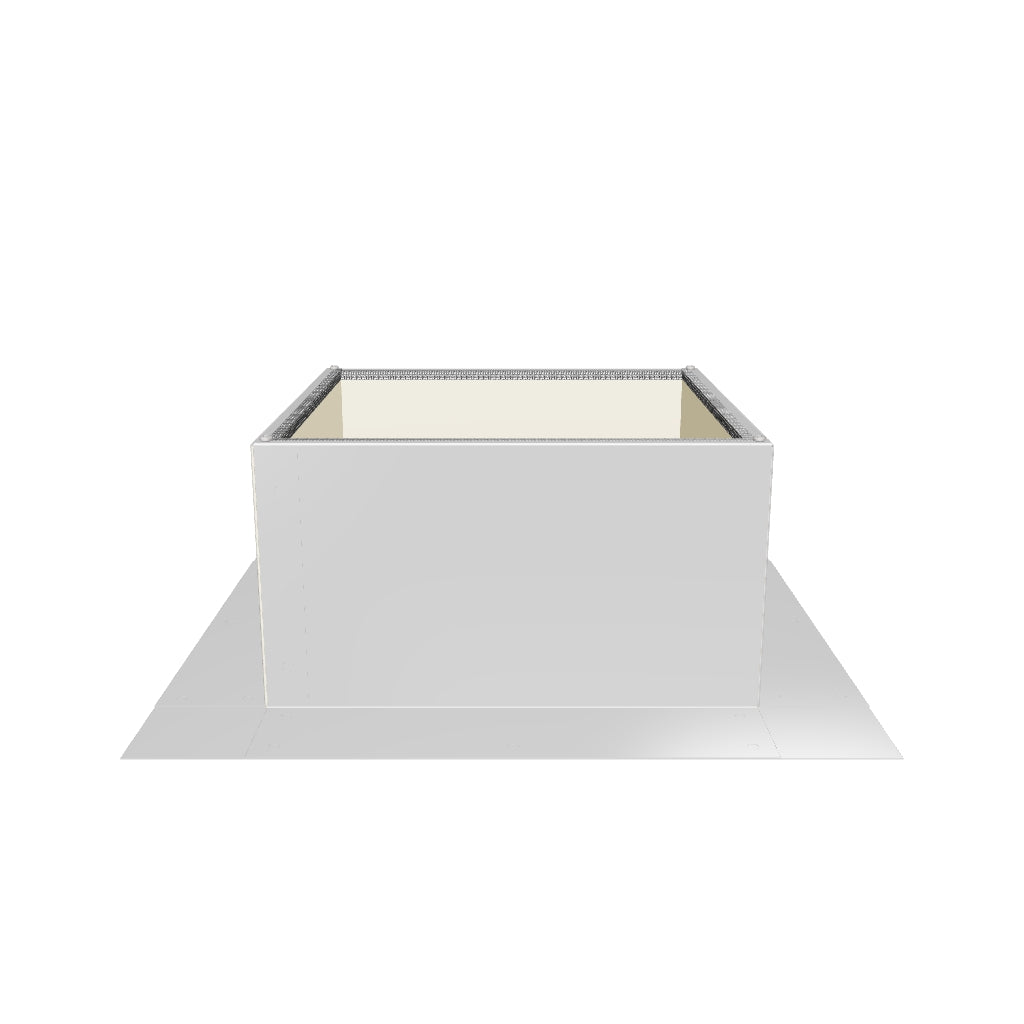

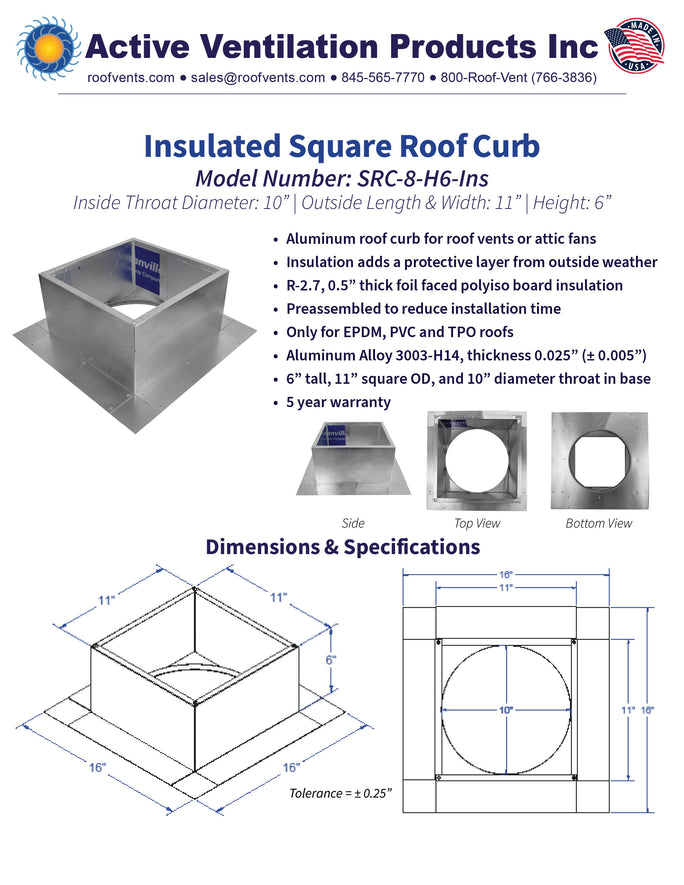

Insulated Roof Curb 11" Square x 6" High | R-Value 2.7 | SRC-8-H6-Ins
This insulated roof curb has an 11" square OD that will fit a vent or fan with an 11.5-inch OD or AVP's 8-inch vents or fans. These insulated curbs are only compatible with vents or fans with a curb mount flange. AVP's prefabricated Roof Curbs are for flat roof or low-slope roof applications.

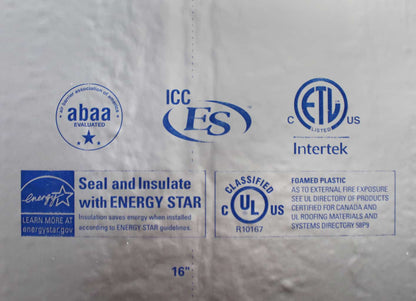

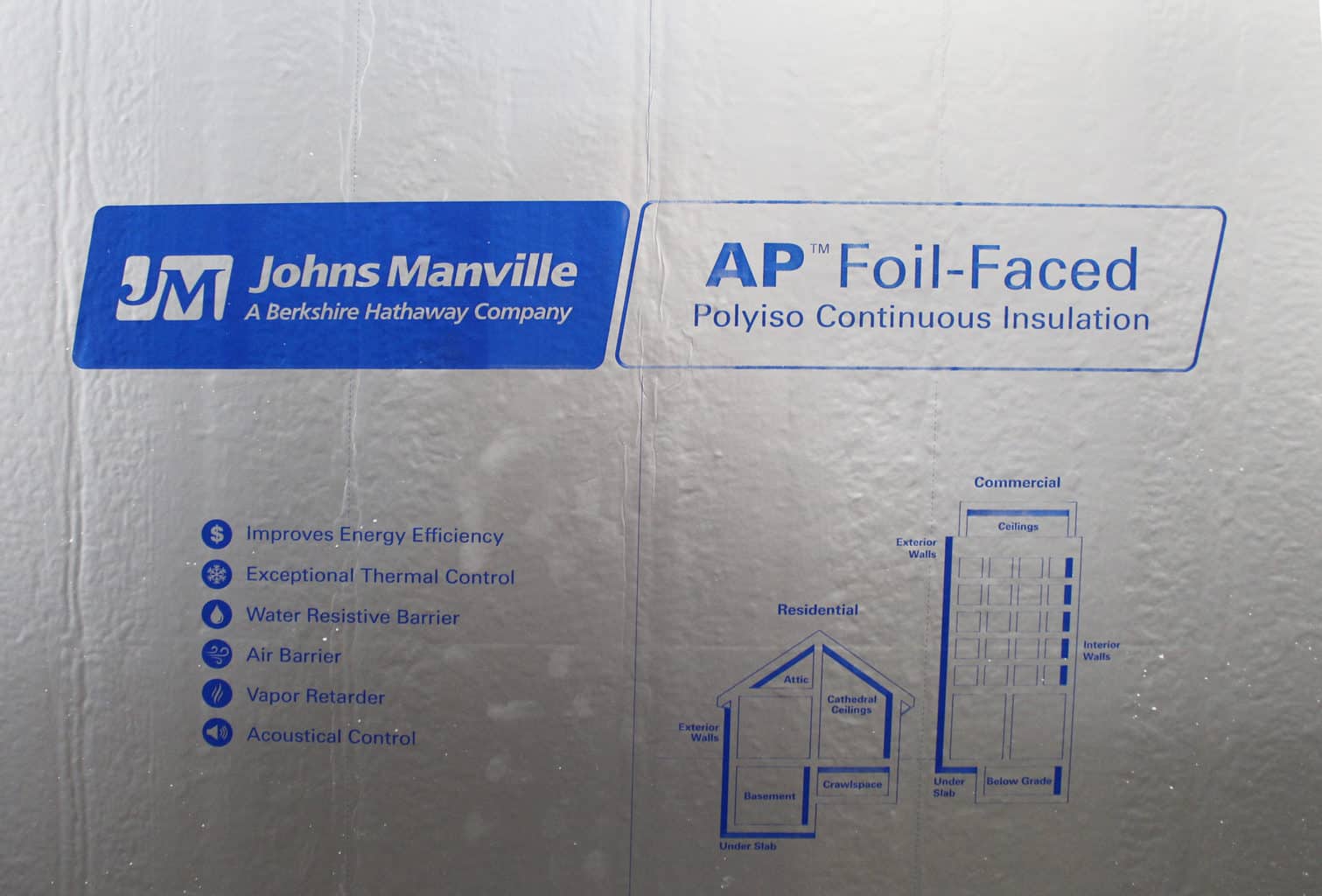

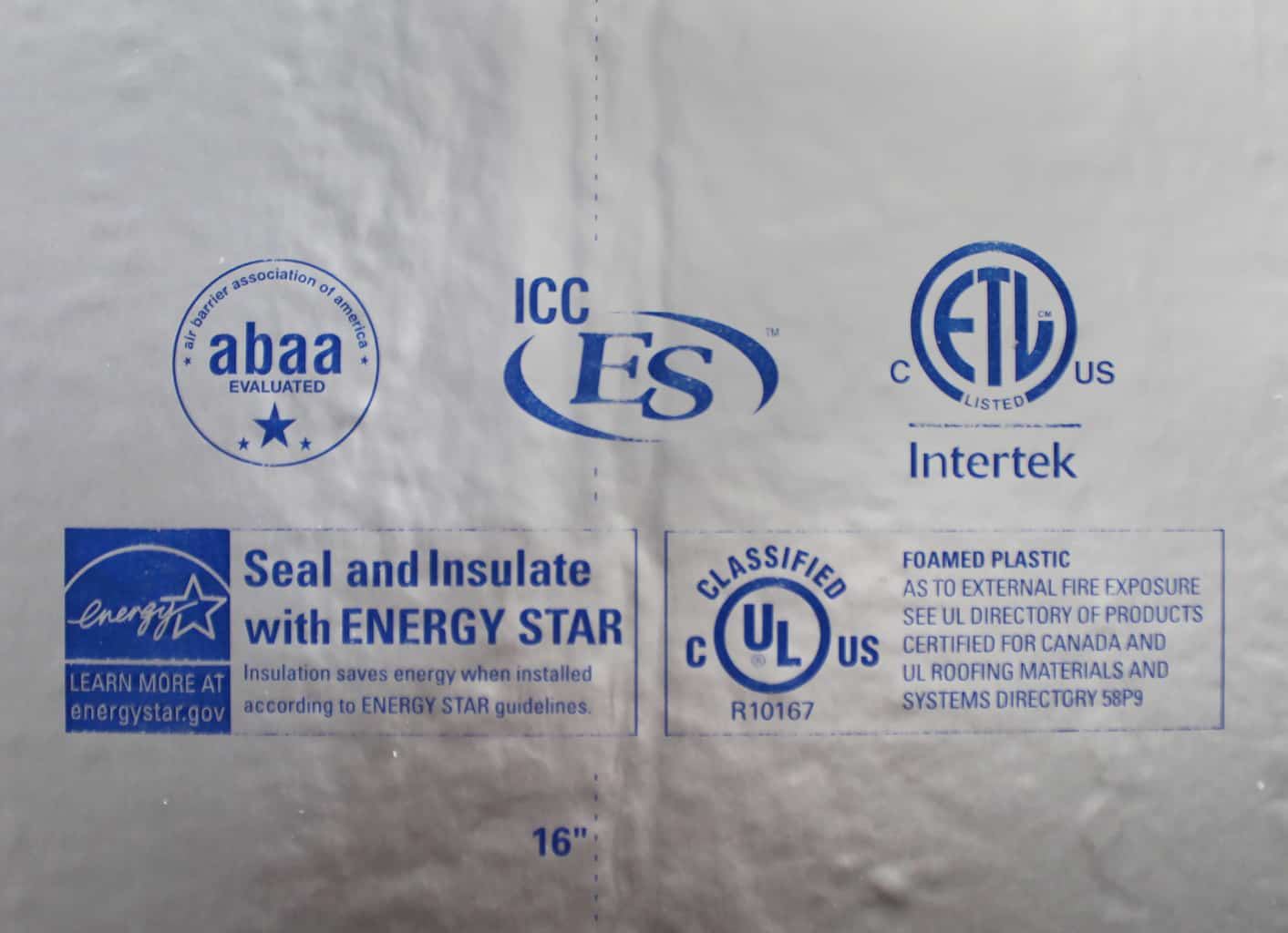

Insulation is Johns Manville R-2.7, 0.5-inch thick foil-faced Polyiso board. Polyiso has the highest R-value per inch of any rigid board insulation. This insulation meets both CFC- and HCFC-free specification requirements.
Additionally, it's produced with an EPA-compliant hydrocarbon-based blowing agent with zero Ozone Depletion Potential (ODP) and virtually no Global Warming Potential (GWP).
Installation: Only for EPDM, PVC, and TPO roofs.

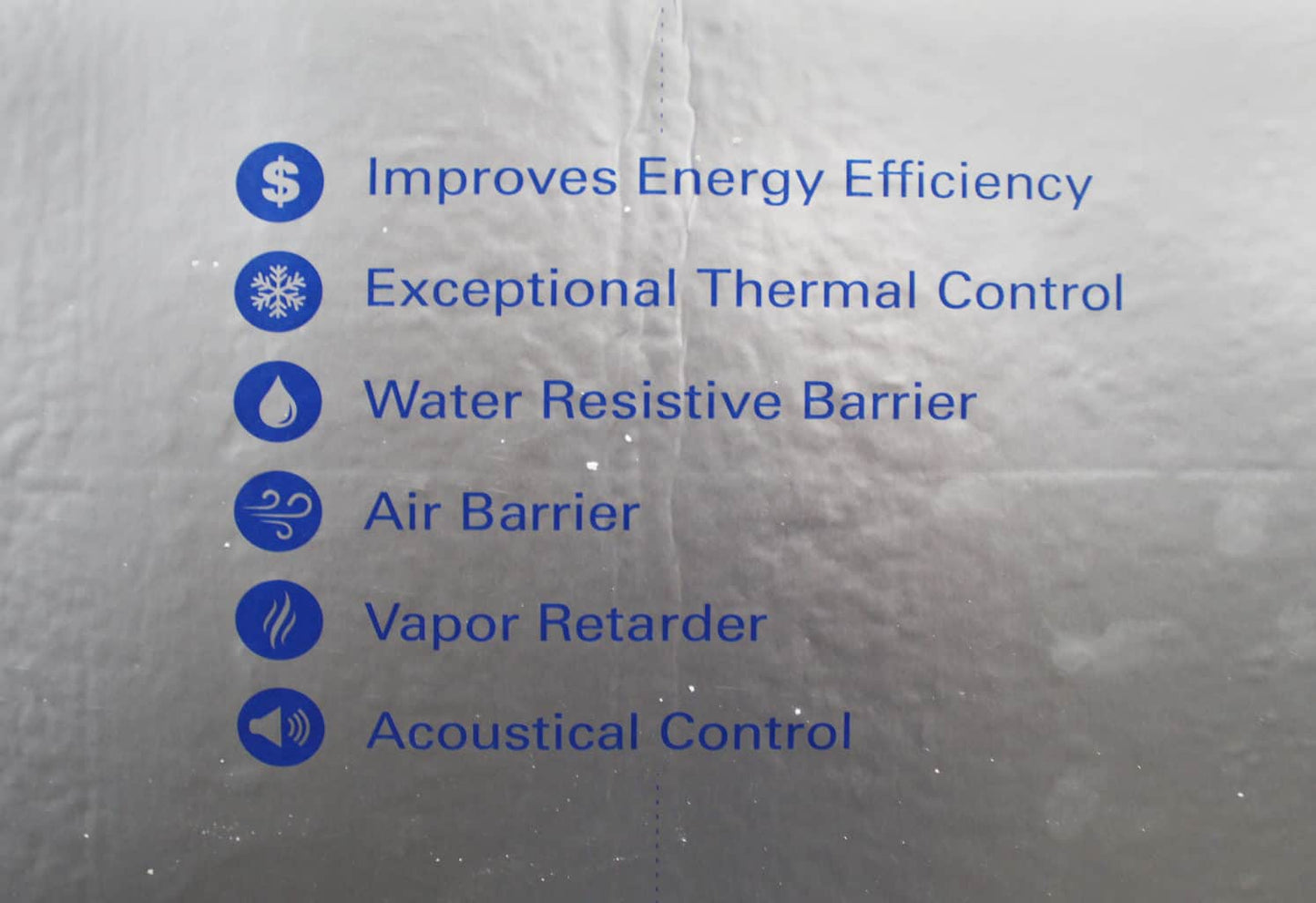

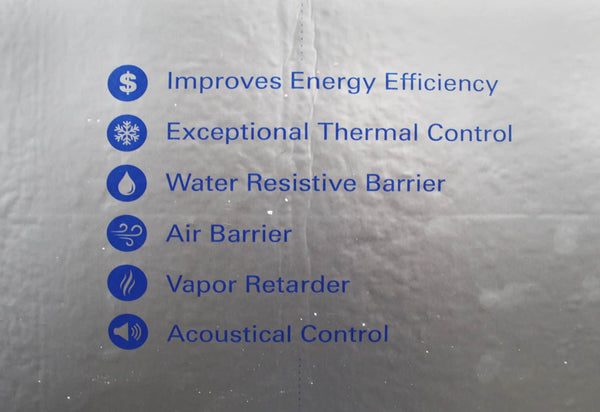

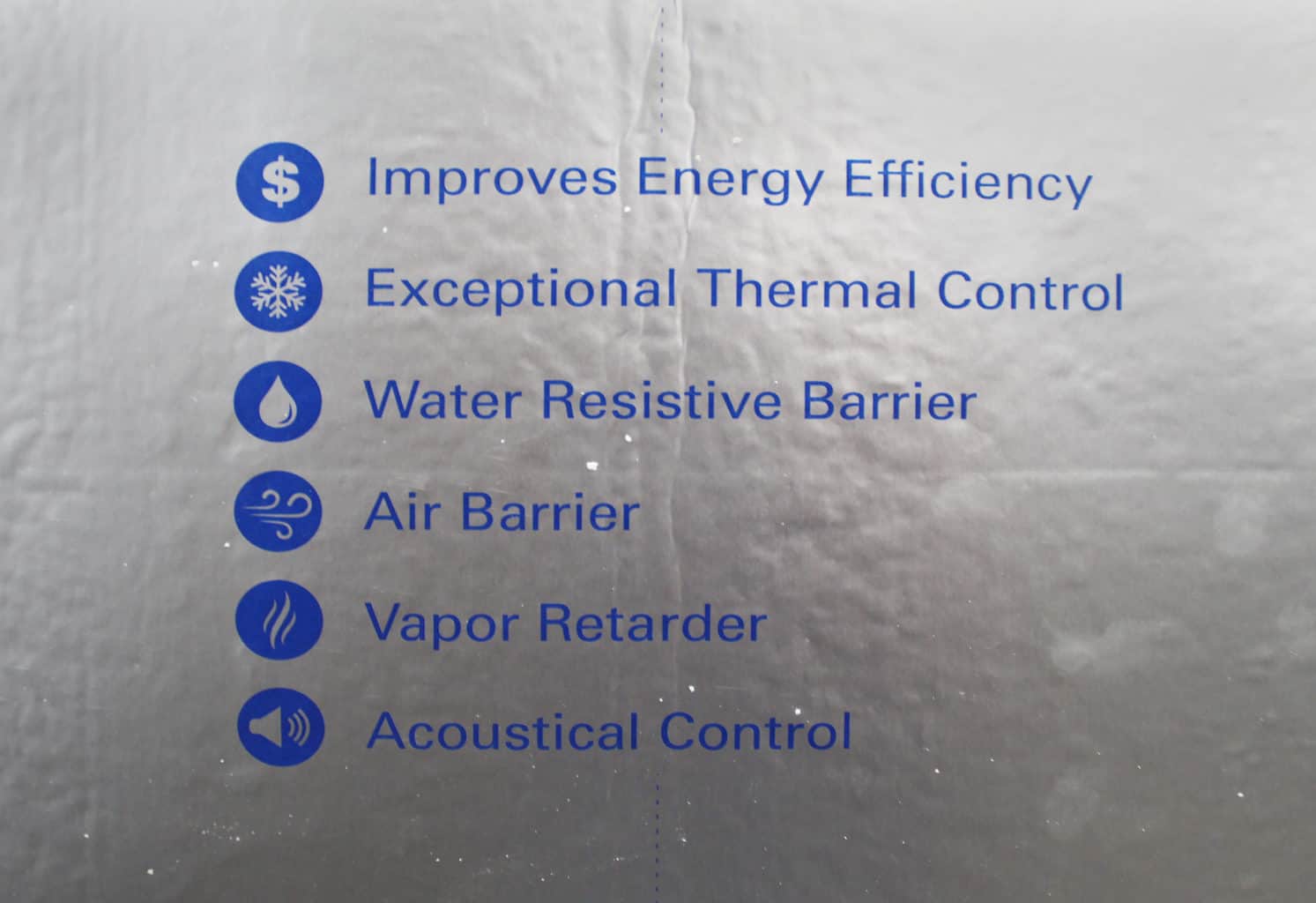

- Improves Energy Efficiency
- Exceptional Thermal Control
- Water Resistive Barrier
- Air Barrier
- Vapor Retarder
- Acoustical Control
Insulated roof curbs provide an additional layer of protection from external weather conditions. The Johns Manville insulation is double-foiled to prevent moisture buildup. Instead, the foil repels water to prevent possible mold from forming.

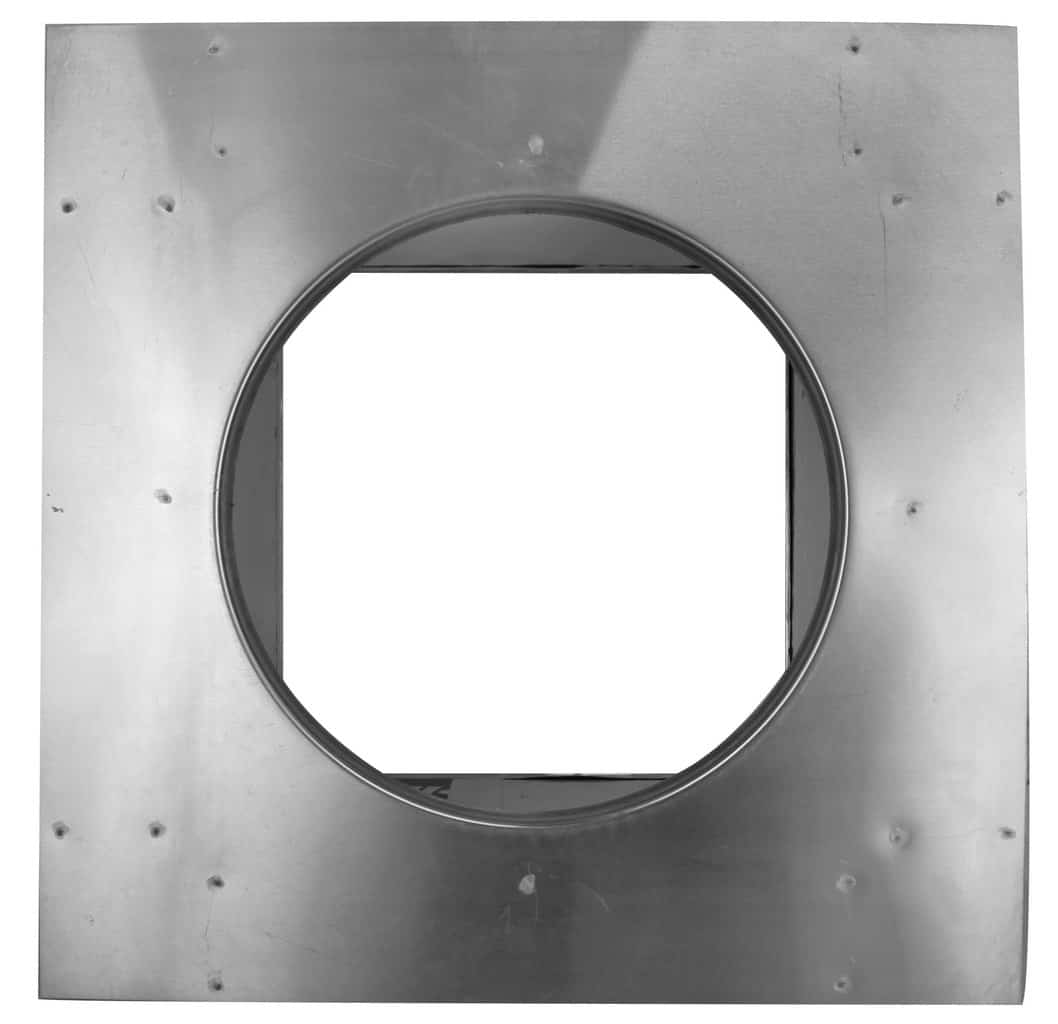

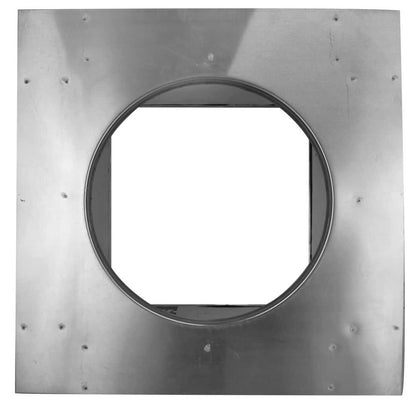

The flashing allows for fasteners to securely attach the curb to the roof. Once placed, it must be covered with roofing material to ensure a watertight seal.

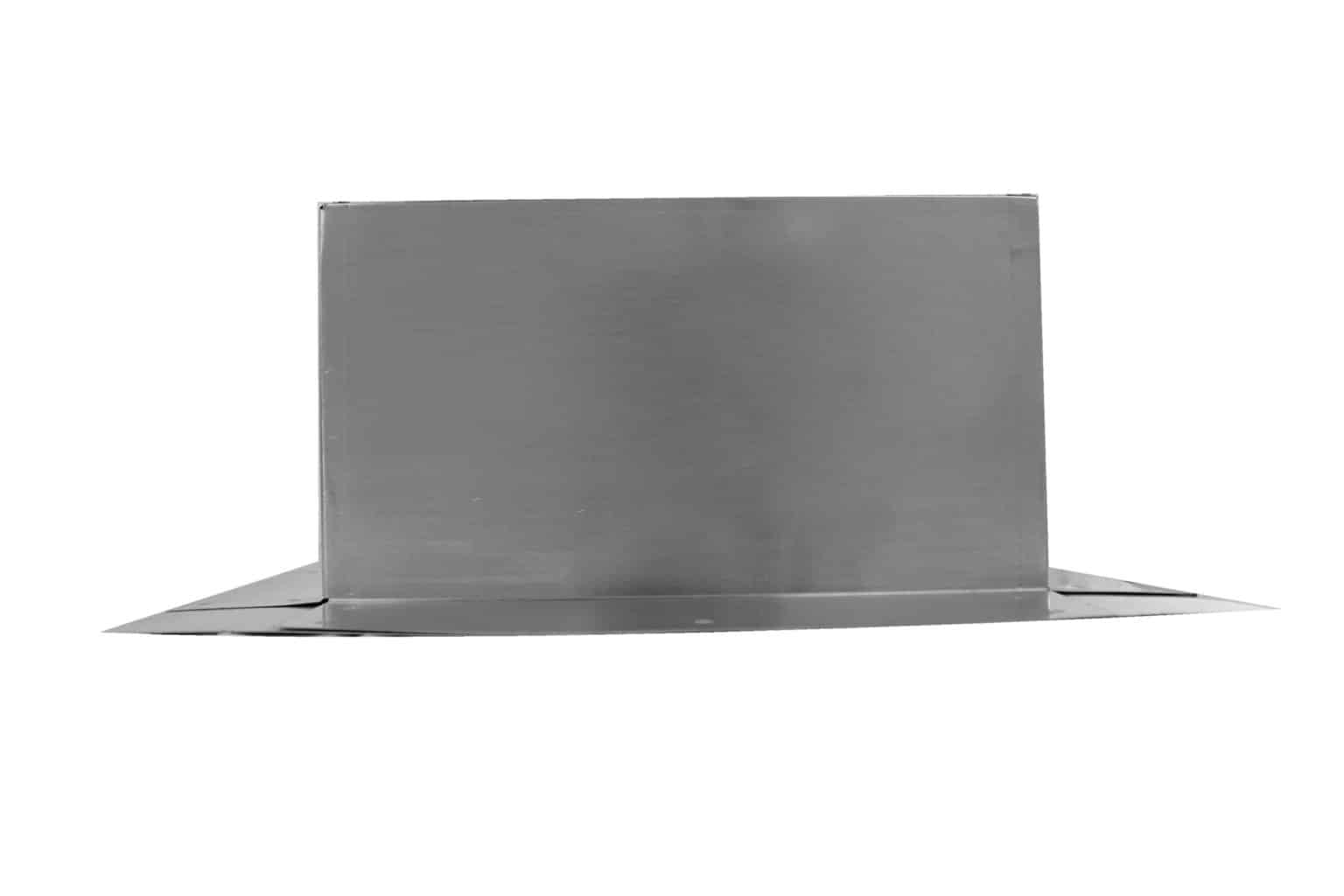

Building heavy wooden curbs can cause damage to the roofing membrane. Instead, eliminate the possibility of damage by using AVP's prefabricated ones. This roof curb is made of aluminum alloy 3003-H14 with a thickness of 0.025" (± 0.005”).
In addition, AVP offers curbs that are 6 inches, 12 inches, and 18 inches tall.
What is a Roof Curb?
A Roof Curb is a metal frame that acts as a base for a roof vent or fan. As a result, this base will provide additional height, allowing for installation in all climate zones. Proper installation ensures that the accessory has a level platform for attachment. They can also serve as a hatch, providing easy access to ductwork, HVAC units, or attic maintenance areas below.
The Curb-Mounted Flange Vent Lines are ready to install on AVP's roof curbs. This includes Aura Vent, Pop Vents, and Round Back Vents in addition to Attic Fans and Aura Solar Fans for powered ventilation.
