Insulated Square Roof Curb for 20" Diameter Vent | 6" high walls

Name: Insulated Square Roof Curb for 20" Diameter Vent | 6" high walls
Brand: Active Ventilation Products
SKU: SRC-20-H6-Ins
Price: 138.0 USD
Availability: InStock

Model No. SKU:SRC-20-H6-Ins

Category : Insulated Square Roof Curbs - 6 inch Tall , Insulated Square Roof Curbs - Master List

Price:Regular price $138.00 USD

$138.00 USD

Sale Sold out

Options

Non-Insulated SRC-20-H6

Compatible Square Curb Cap

Option Base Price Cap For SRC-20

Base Price $0.0 (optional)

Cap For SRC-20 $50.0 (optional)

A Roof Curb Cap covers the top of the roof curb with an aluminum lid when there is no vent or fan installed.

Product variants

Quantity

View full details

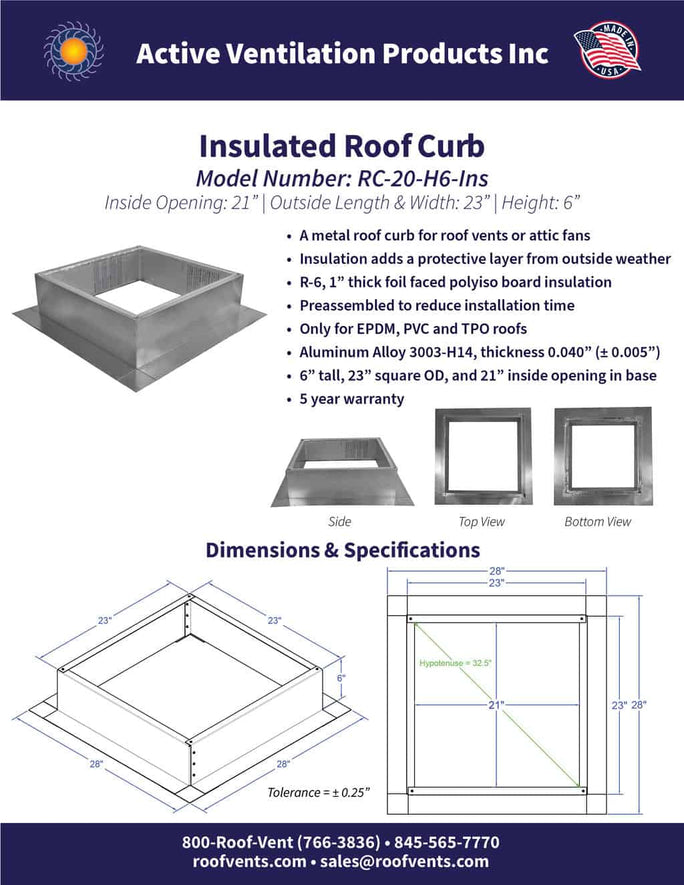

Click For PDF

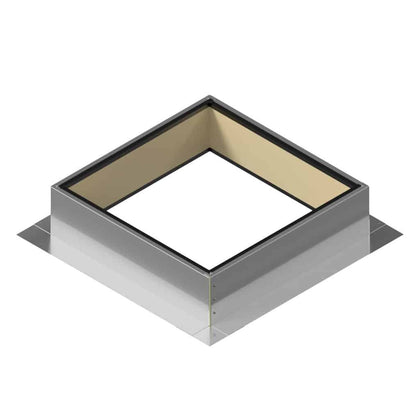

Insulated Square Roof Curb for 20" Diameter Vent | 6" high walls

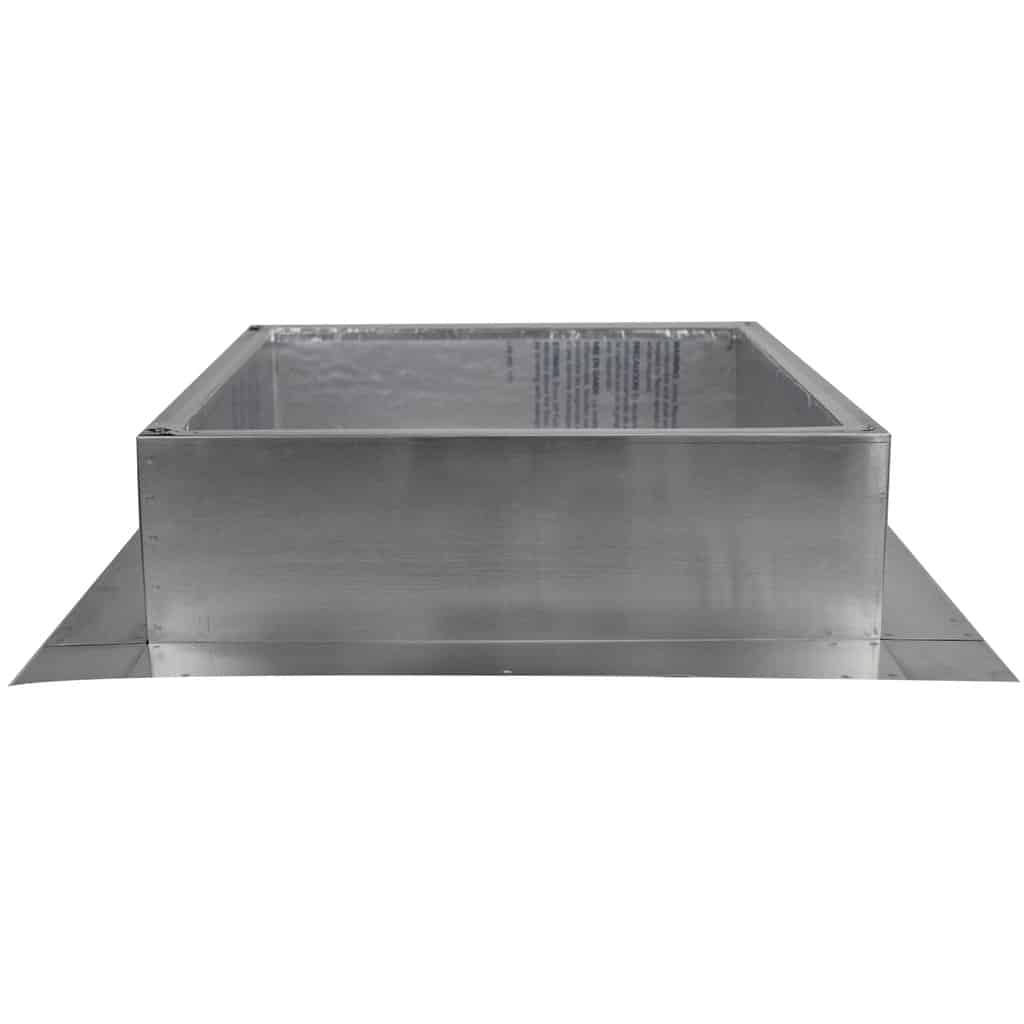

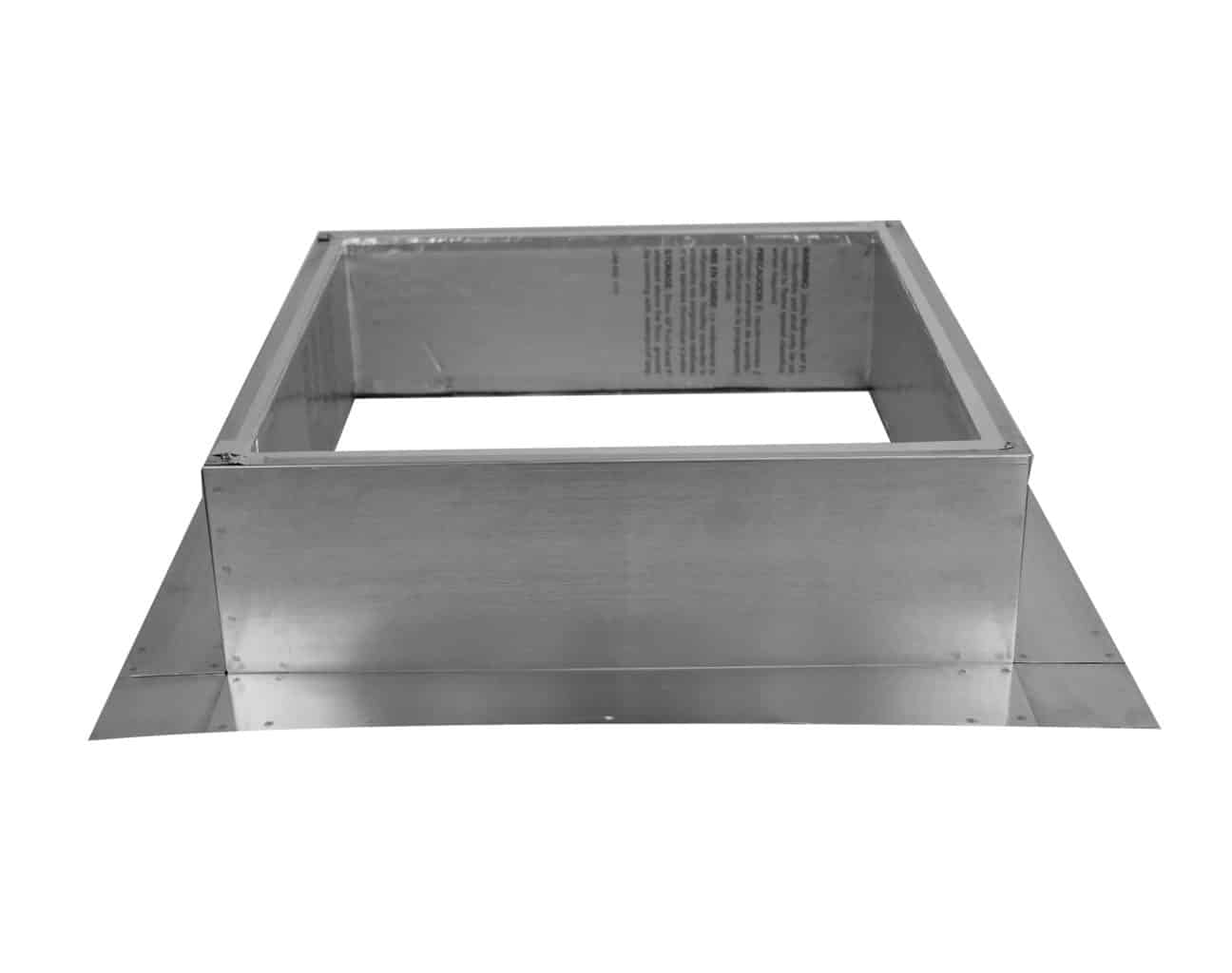

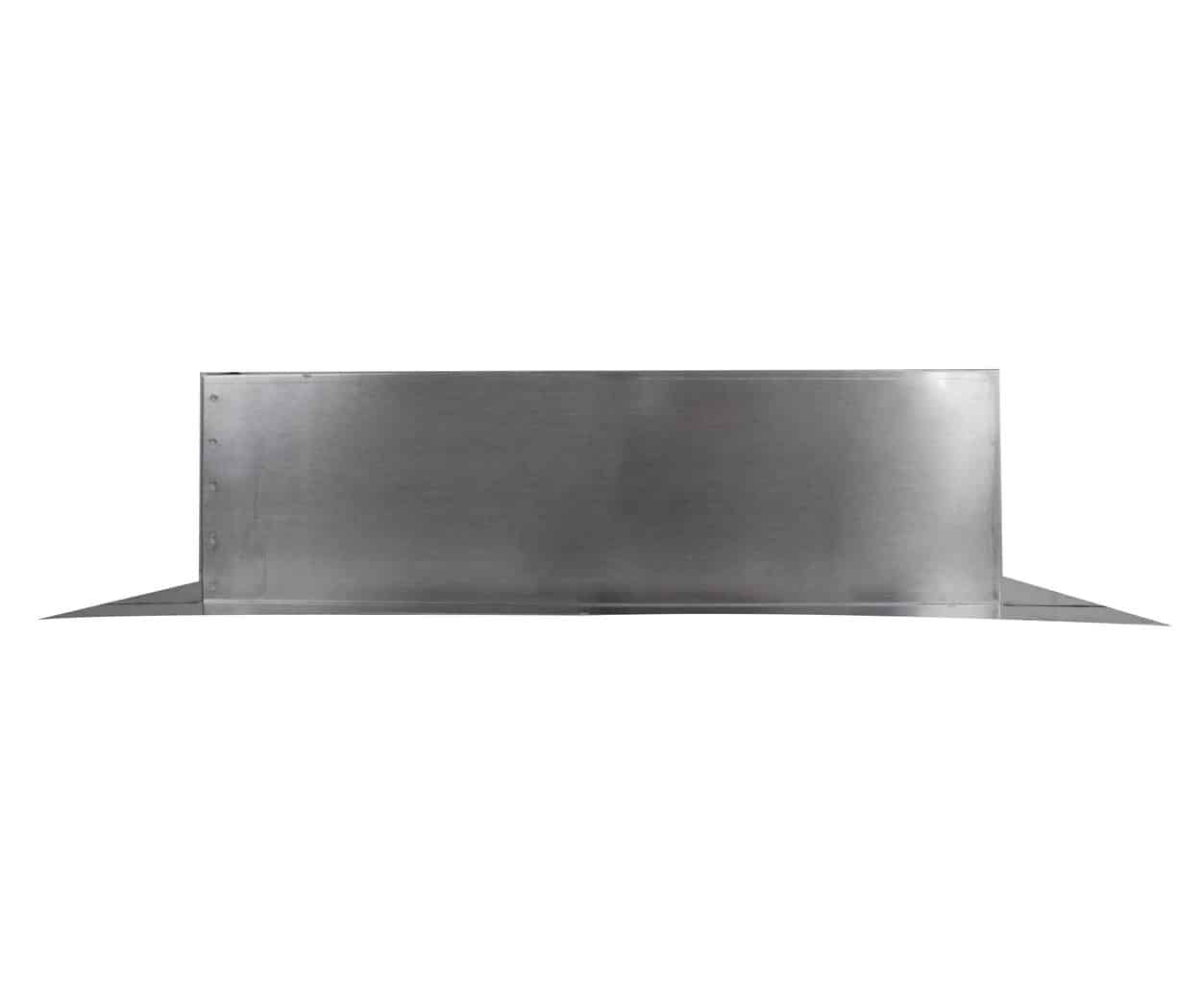

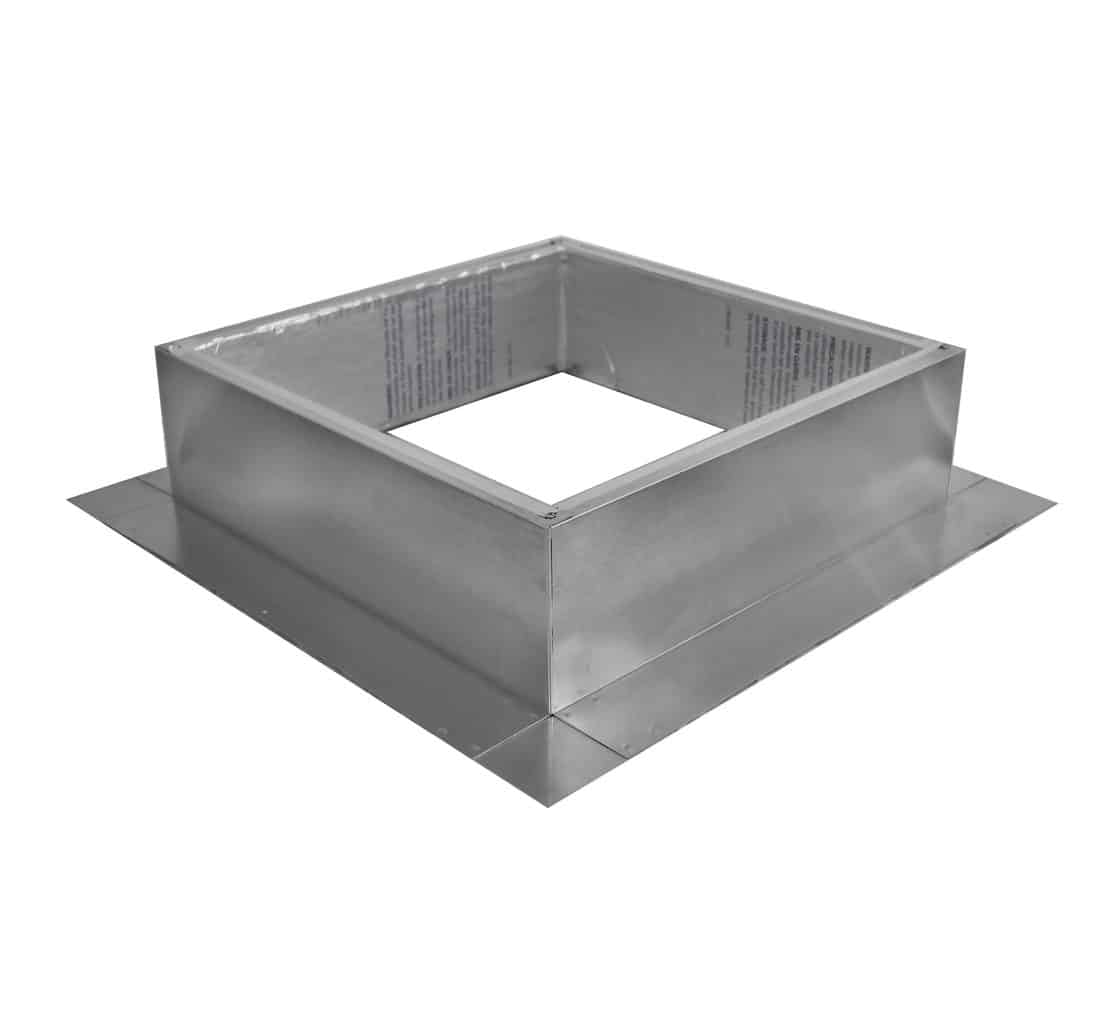

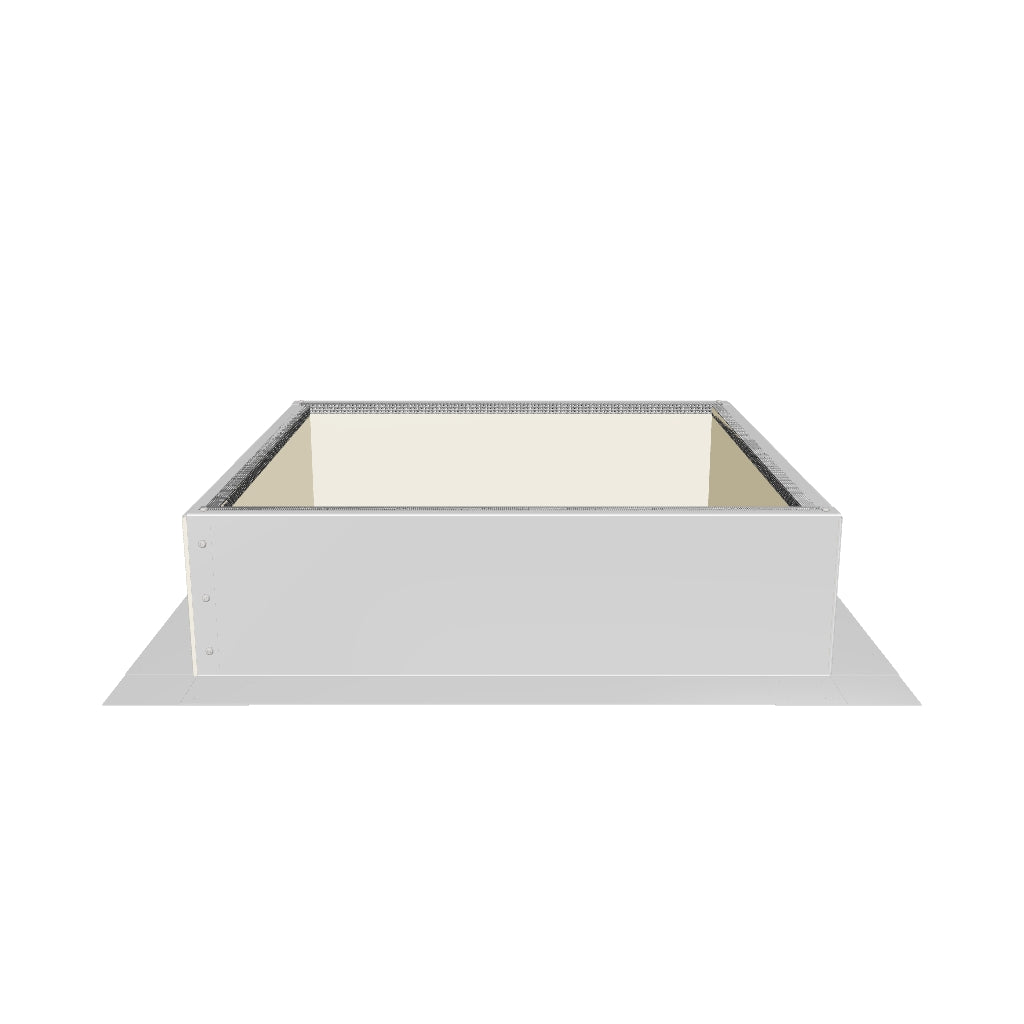

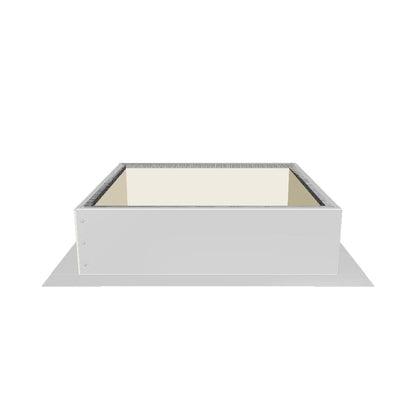

Insulated Roof Curb 23" Square x 6" High | R-Value 6 | SRC-20-H6-Ins

The insulated roof curb has a 23" square OD that will fit a vent or fan with a 23.5 inch OD or AVP's 20-inch vents or fans. These insulated curbs are only compatible with vents or fans that have a curb mount flange. AVP's prefabricated Roof Curbs are for flat roof or low-slope roof applications.

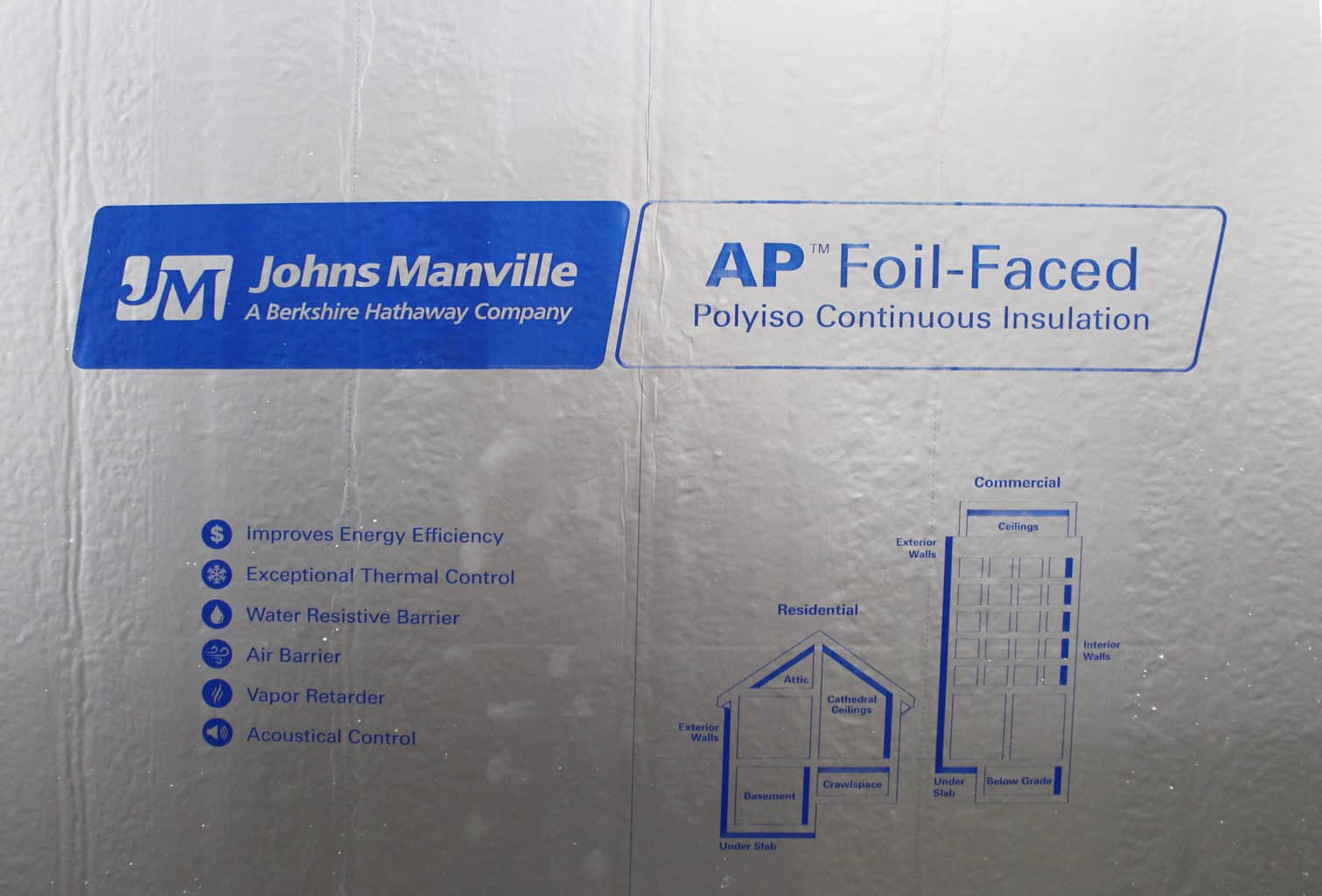

The insulation is Johns Manville R-6, 1-inch thick, foil-faced polyiso board. Polyiso has the highest R-value per inch of any rigid board insulation. This insulation meets both CFC- and HCFC-free specification requirements.

Additionally, it's produced with an EPA-compliant hydrocarbon-based blowing agent with zero Ozone Depletion Potential (ODP) and virtually no Global Warming Potential (GWP).

Installation: Only for EPDM, PVC, and TPO roofs.

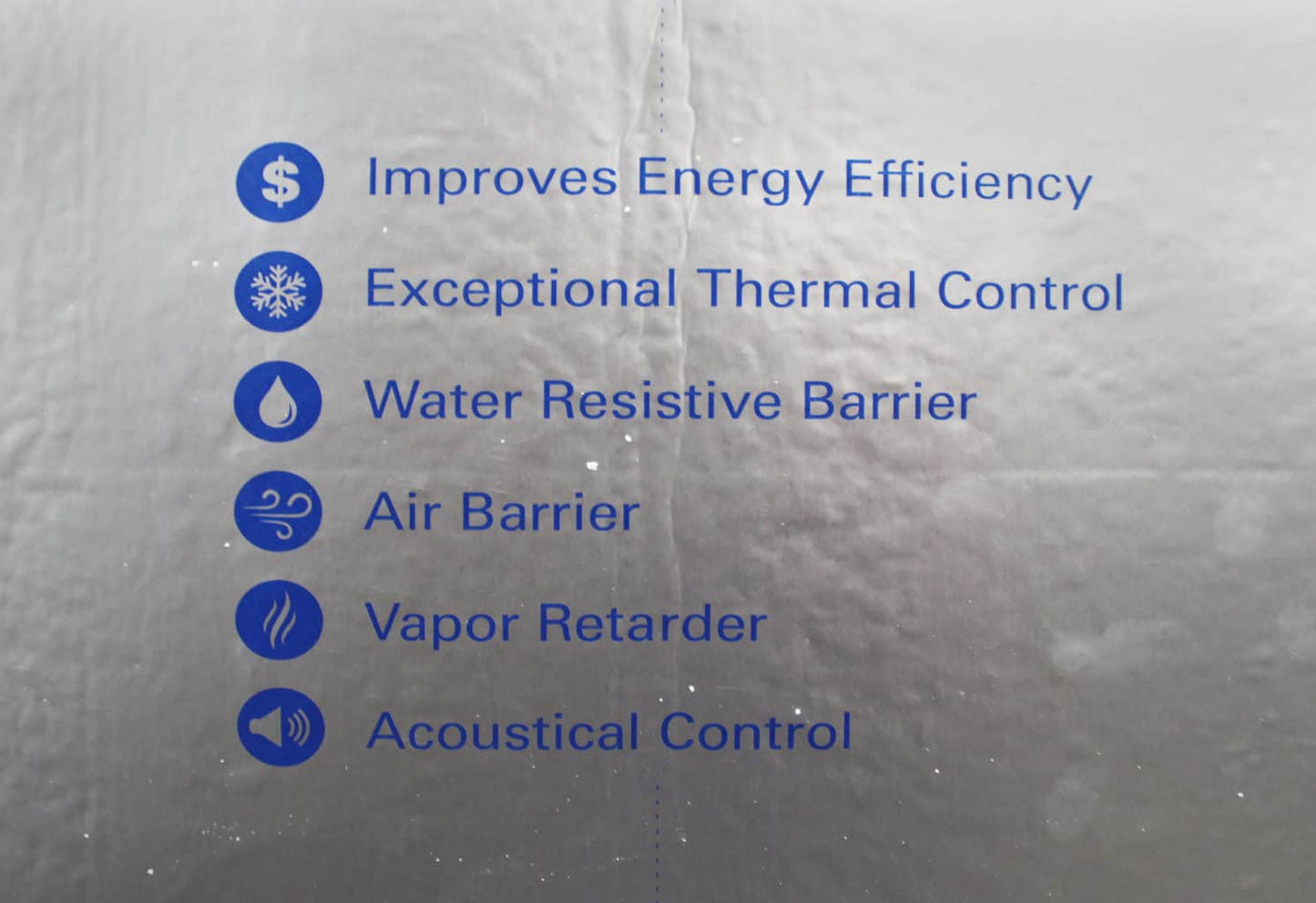

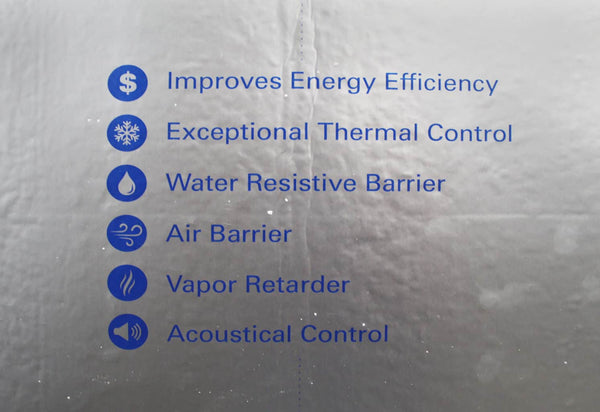

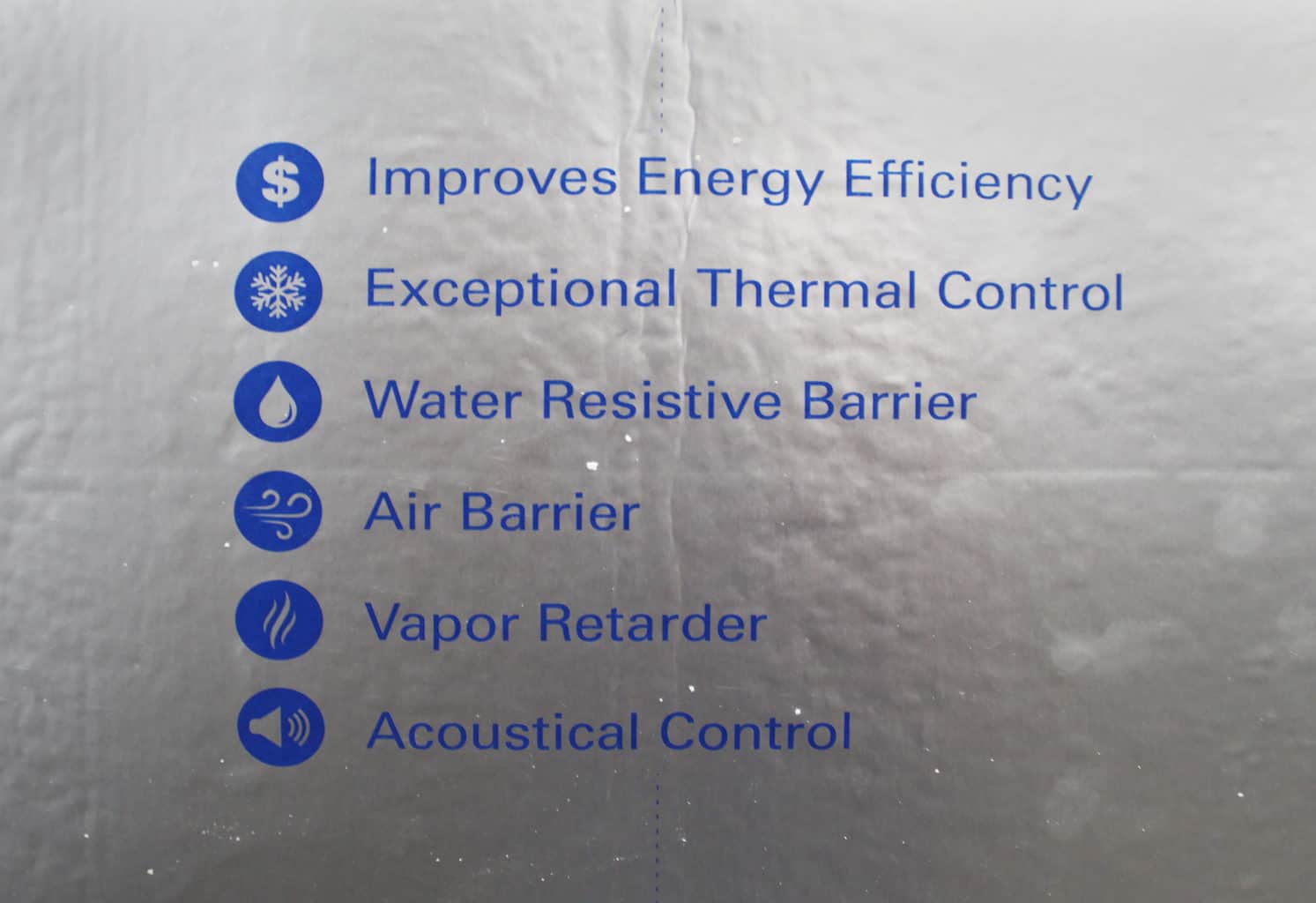

Improves Energy Efficiency
Exceptional Thermal Control
Water Resistive Barrier
Air Barrier
Vapor Retarder
Acoustical Control

Insulated roof curbs provide an extra layer of protection from the outside weather. The Johns Manville insulation is double-foiled to stop the build-up of moisture. Instead, the foil repels water to prevent possible mold from forming.

The flashing allows for fasteners to attach the curb to the roof securely. Once placed, it is to be covered with roofing material for a watertight seal.

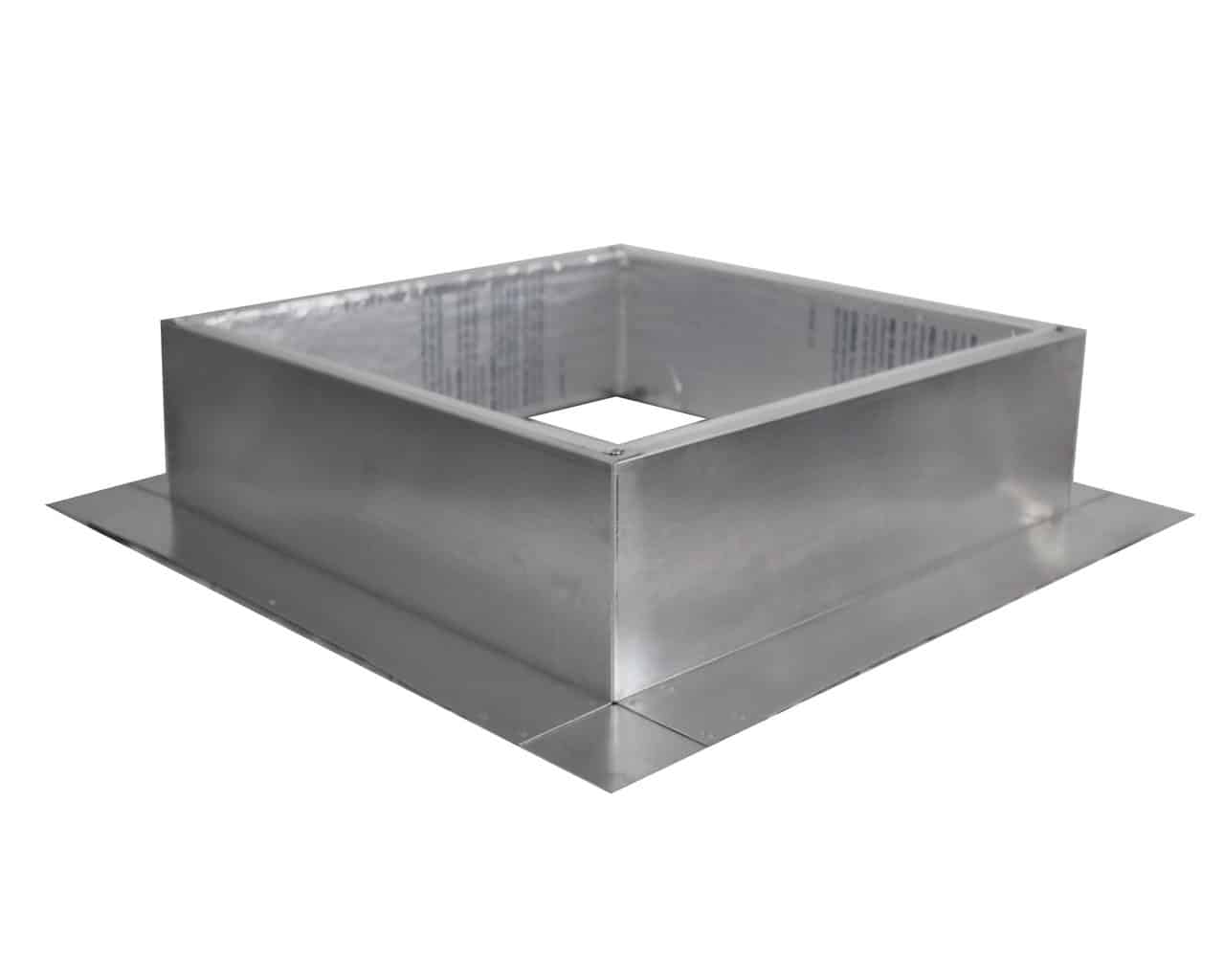

Building heavy wooden curbs can cause damage to the roofing membrane. Instead, eliminate the possibility of damage by using AVP's prefabricated ones. This roof curb is aluminum alloy 3003-H14 with a 0.040" thickness (± 0.005”).

In addition, AVP offers curbs in 6 inches tall, 12 inches tall and 18 inches tall.

What is a Roof Curb?

A Roof Curb is a metal frame that acts as a base for a roof vent or fan. As a result, this base will provide additional height allowing for installation in all climate zones. Proper installation ensures that the accessory has a level platform for attachment. They can also work as a hatch, allowing easy access to ductwork, HVAC units, or maintenance in the attic below.

The curb-mounted flange vent lines are ready to install on AVP's roof curbs. This includes Aura Vent, Pop Vents, and Round Back Vents. As well as Attic Fans and Aura Solar Fans for powered ventilation.

For any questions, please email the sales team at sales@roofvents.com or call 845-565-7770

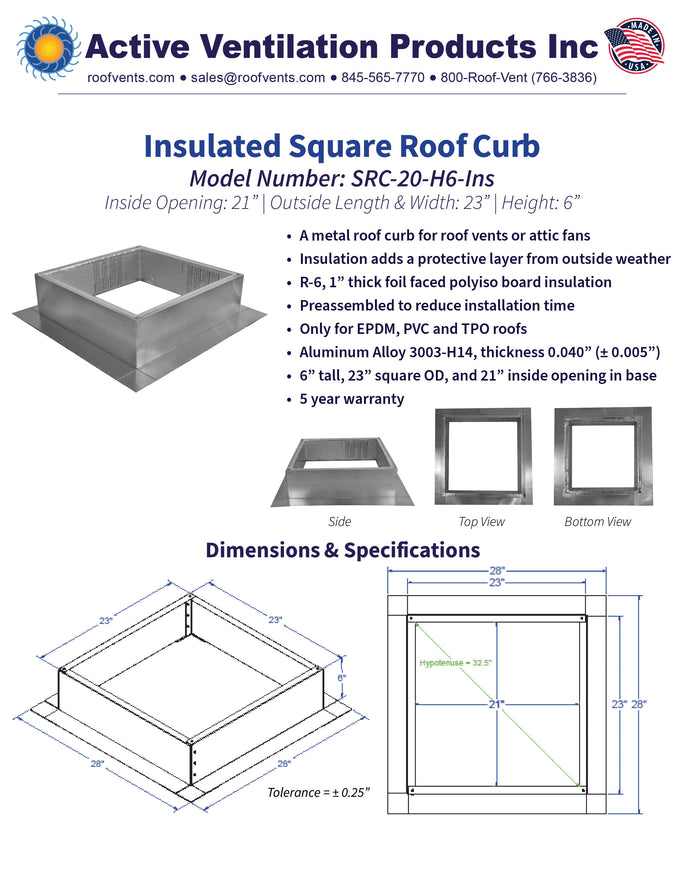

Click For PDF

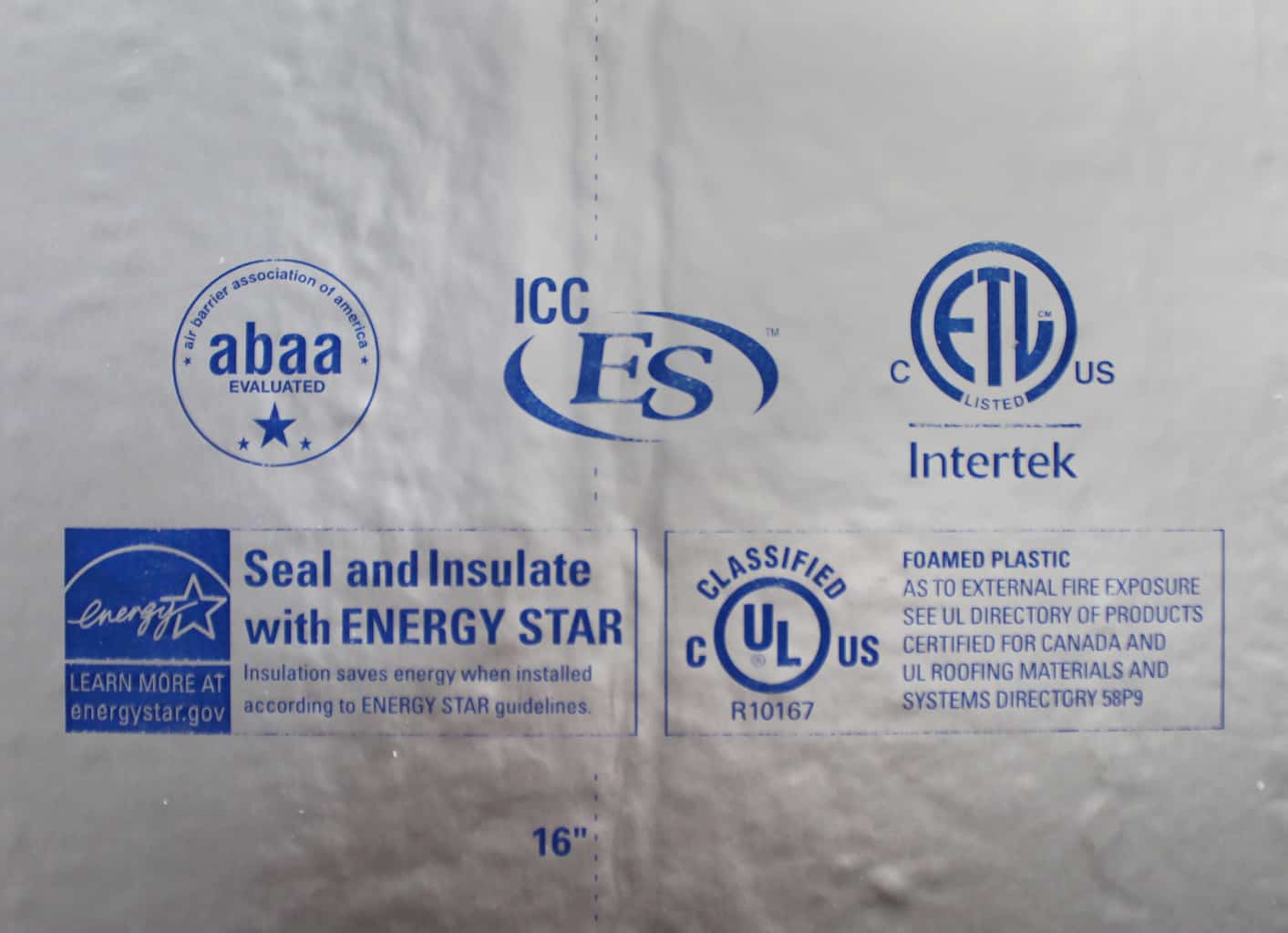

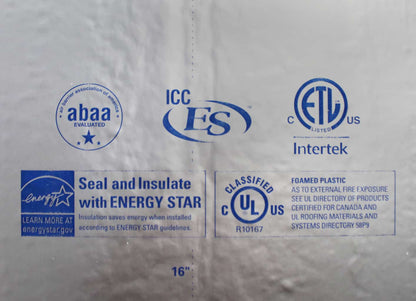

This product has UL Certification. Check out other details and specifics on UL Product IQ™
(Note: UL now requires you to have a free account to access this page) UL’s Online Certifications Directory.

Click for PDF

Pending

Calculate number of Model SRC-20-H6-Ins Vents Needed for a Given Area

Enter the Width and Length of the attic space you need to ventilate to calculate the area. You may also enter the area directly in the "Area" field. It is not necessary to hit the Return or Enter key (which will refresh this page), just enter numbers in the fields.

Width of the Attic Area (in Ft.) Enter width of space to calculate area (or enter Area below)

Length of the Attic Area (in Ft.) Enter width of space to calculate area (or enter Area below)

Area of the Attic footprint (in Sqr Ft.)
If you know it, you may enter the area directly here

The diameter size of all roof vents determines the Net Free Area, also known as the "NFA". NFA is the measured amount of opening each vent offers at each specific size. to be available for venting air through a specific vent size. The calculator below will find the overall number of vents needed to effectively ventilate the targeted attic space.

Once you have the area, the numbers shown below are the number of vents of that size which would ventilate the specified area with both 1/300 and 1/150 rule.

Results Appear Here

Number of Exhaust Attic Vents Needed for the 1/300 rule.

Number of Exhaust Attic Vents Needed for the 1/150 rule

*Please note
The roof vent calculation values shown above are for the exhaust portion of the roof. The same amount of net free air inches is needed for air intake as well. Proper roof ventilation consists of 50% air exhaust and 50% air intake.
