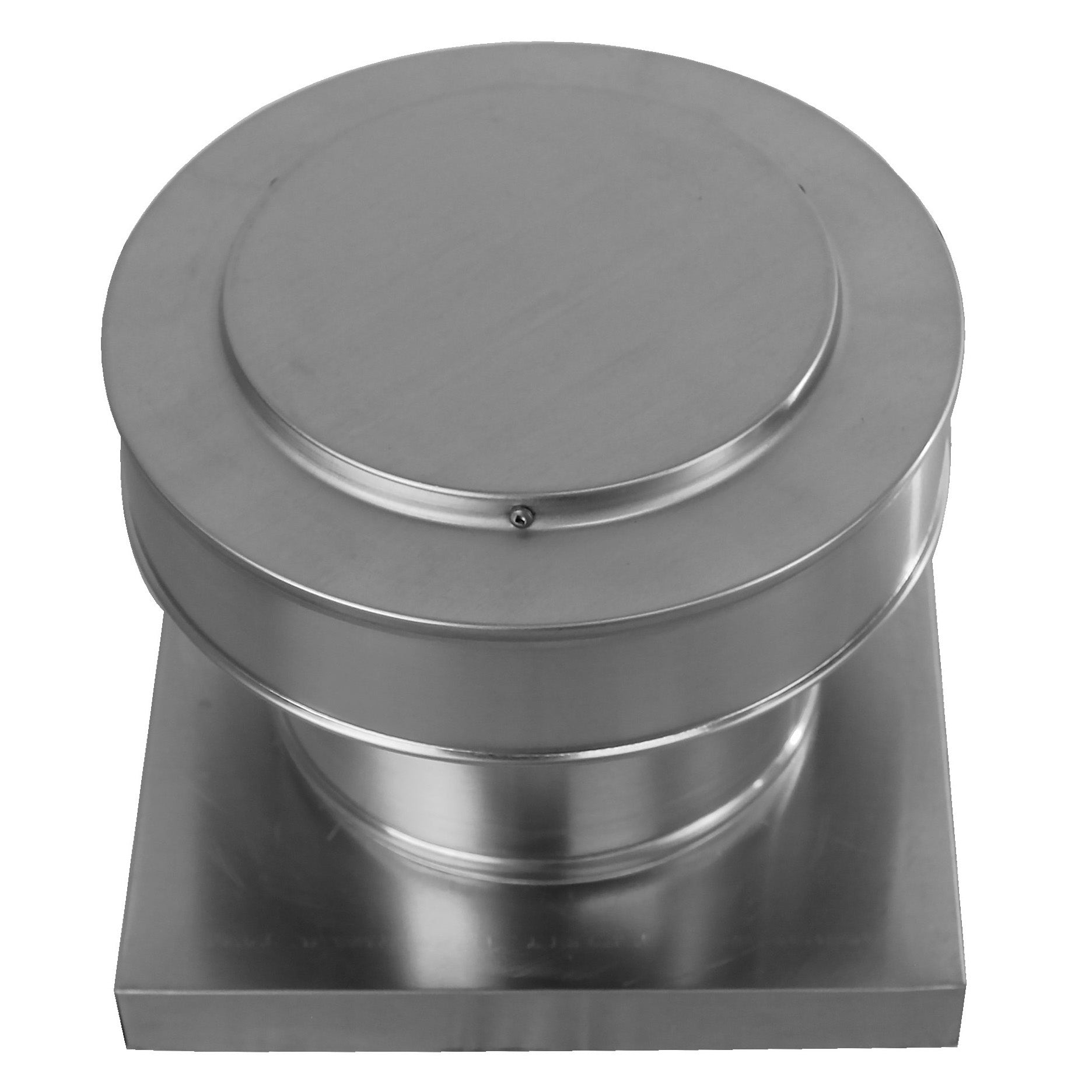

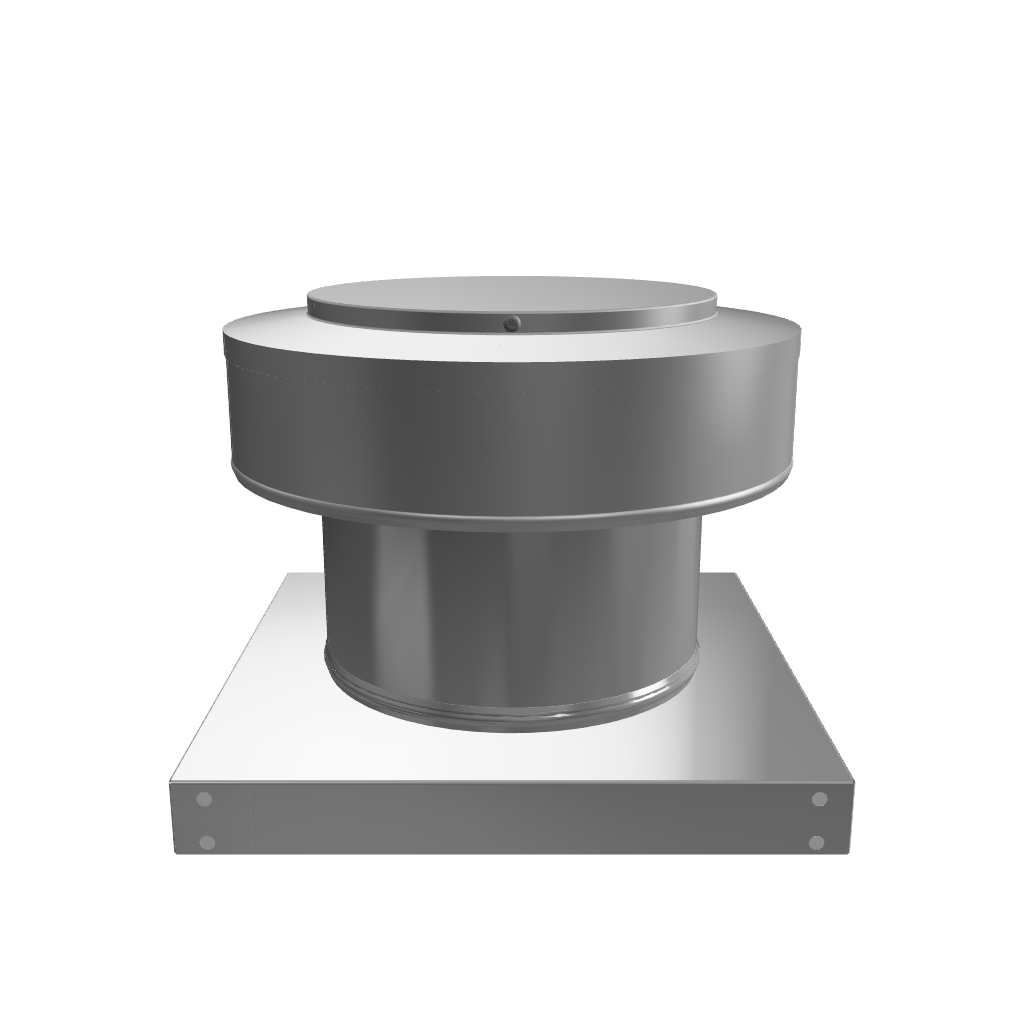

7-inch Static Vent | Round Back Static Vent with Curb Mount Flange | Model RBV-7-C4-CMF

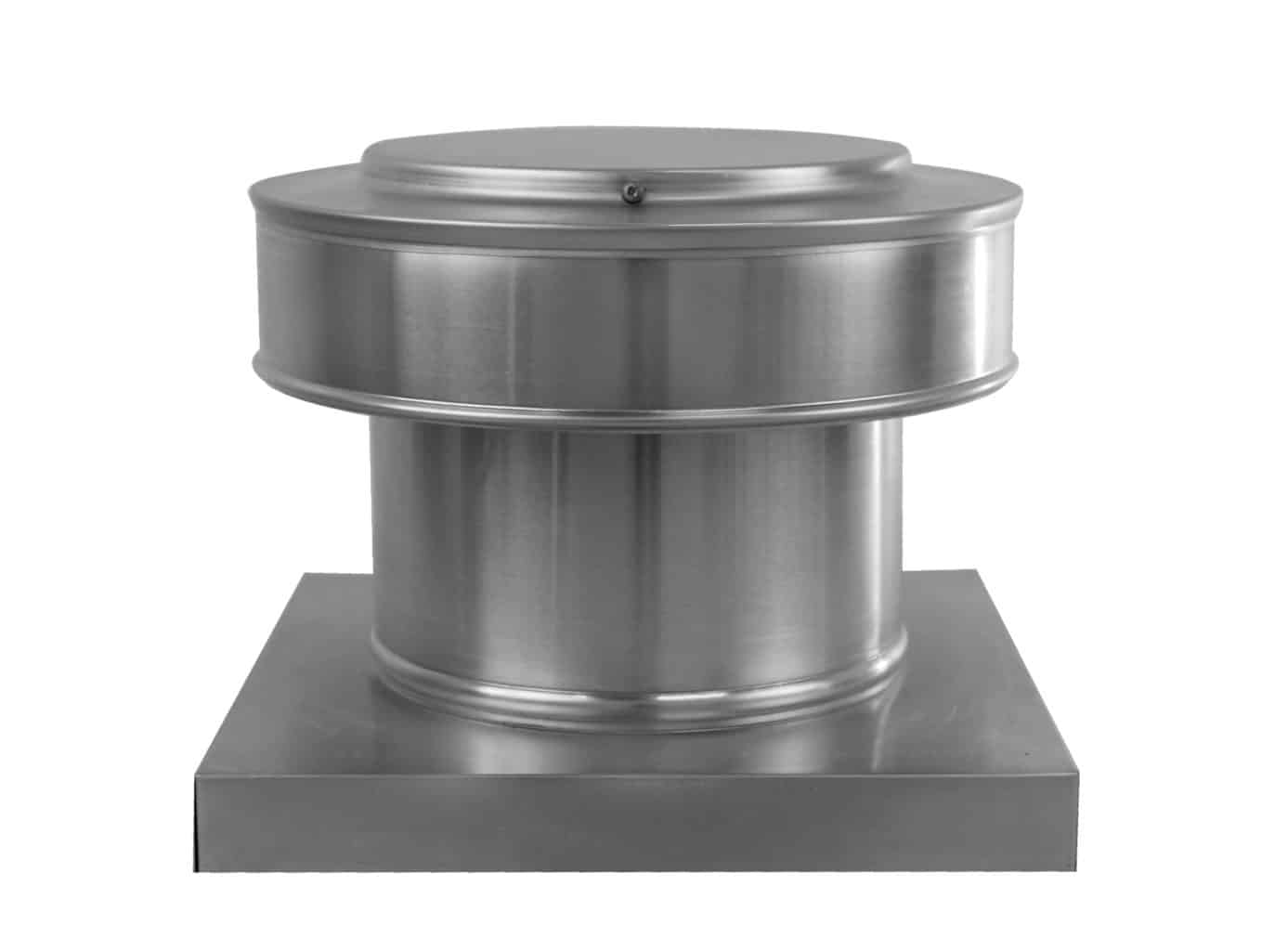

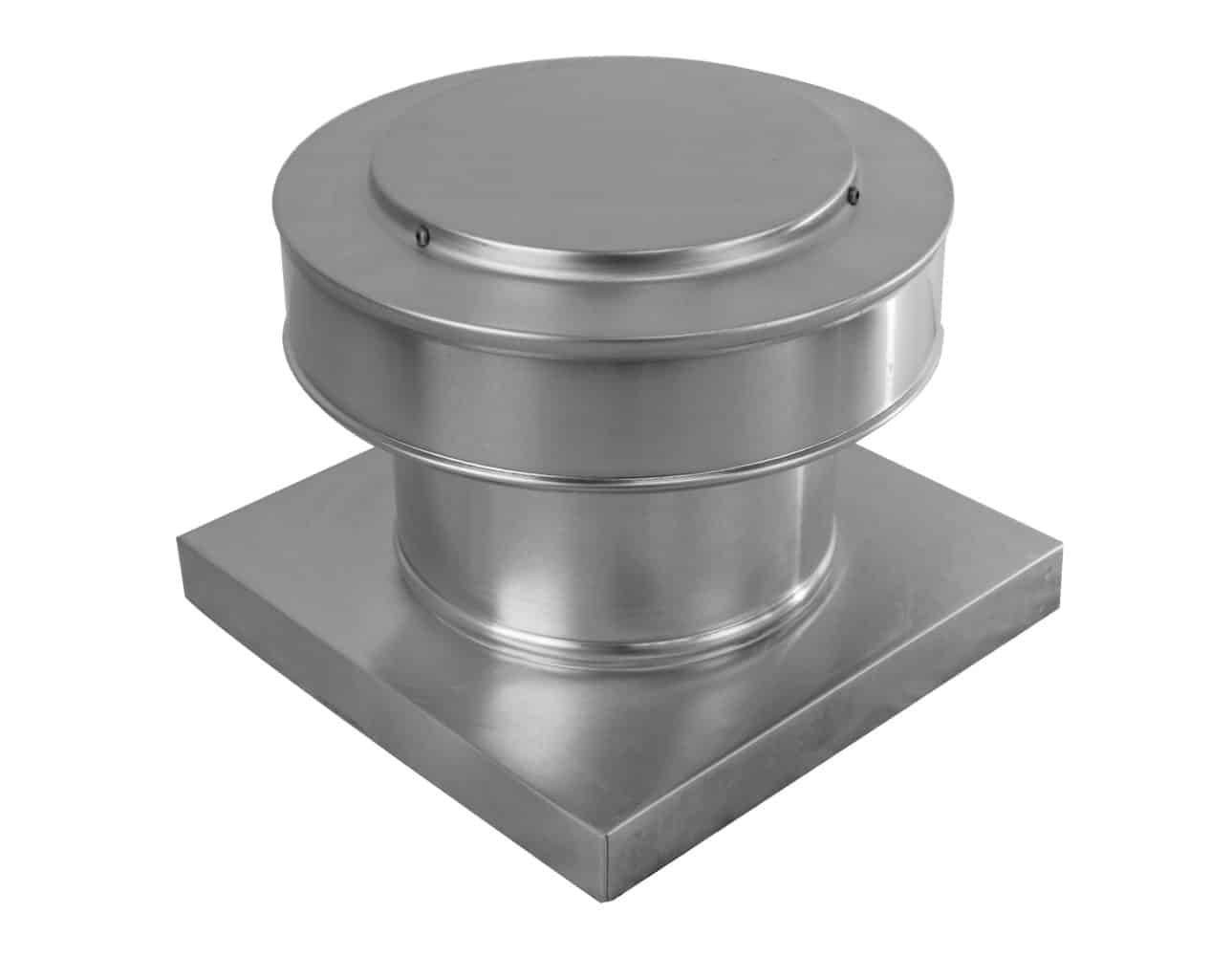

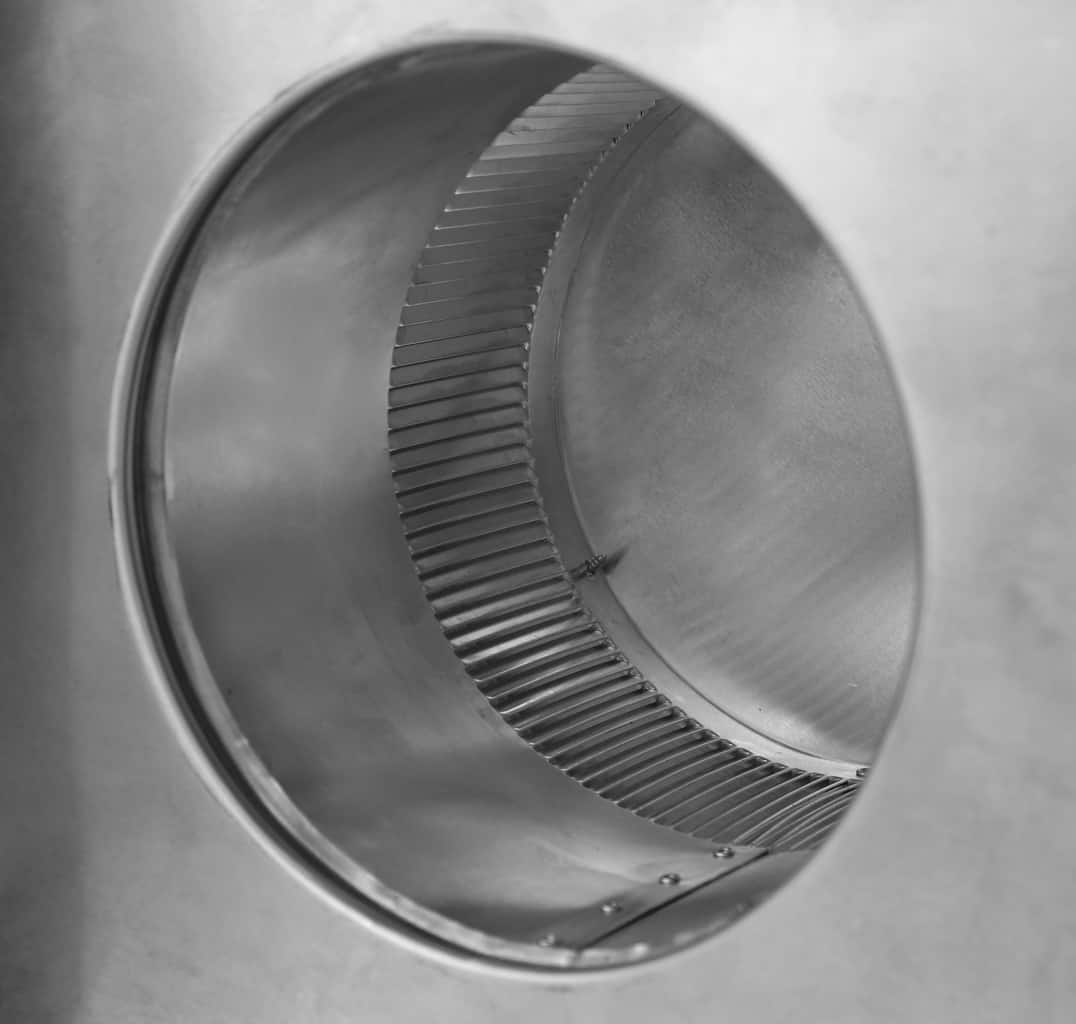

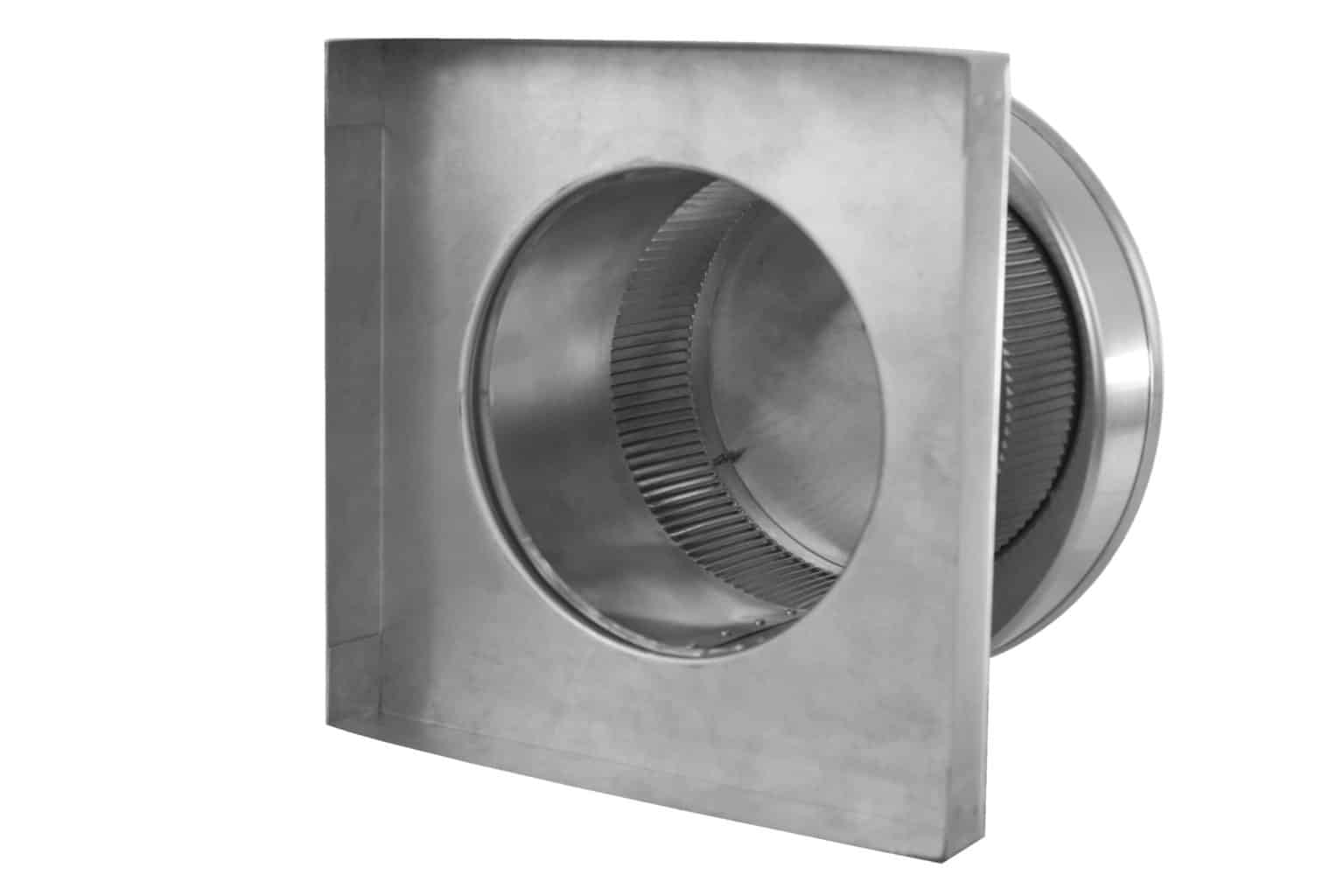

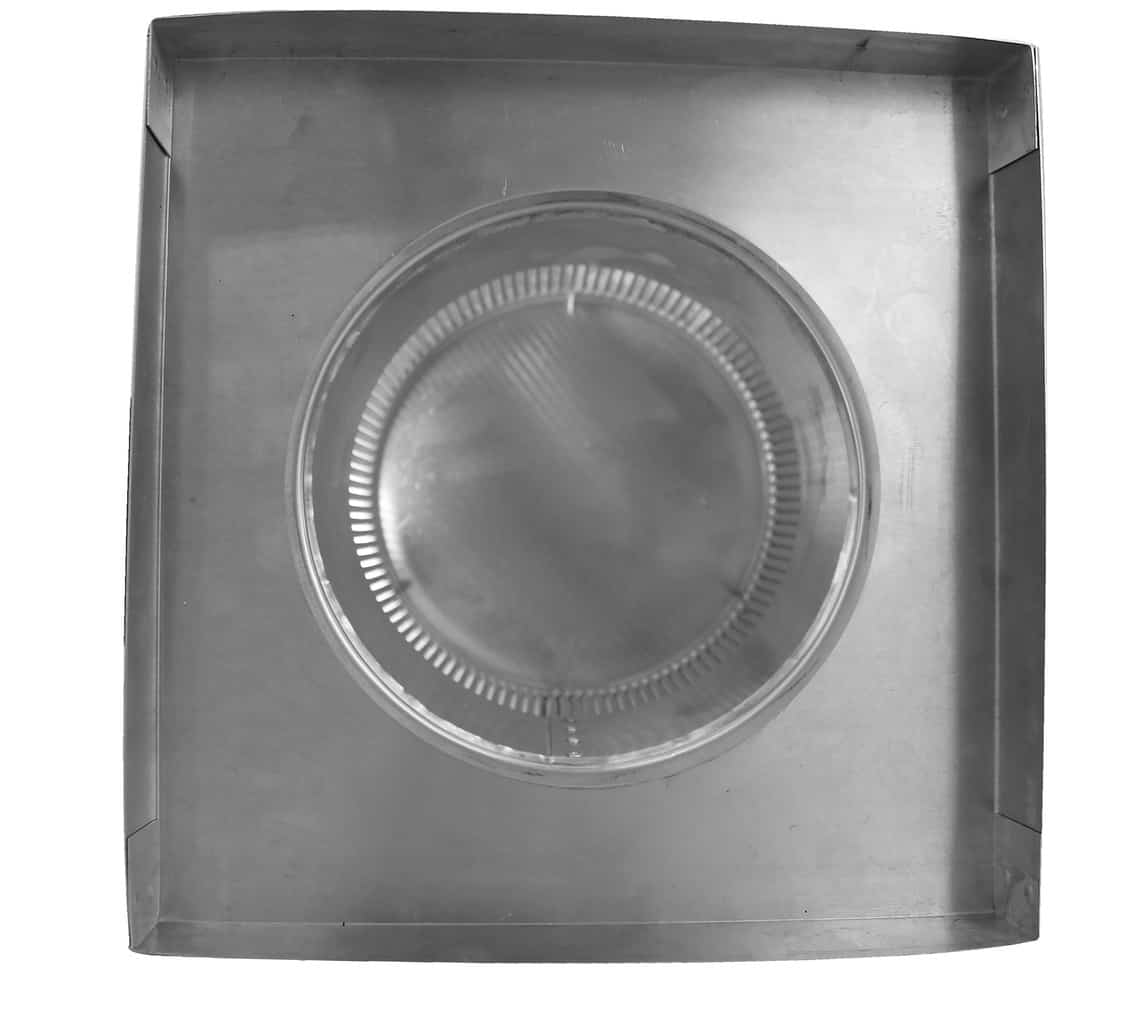

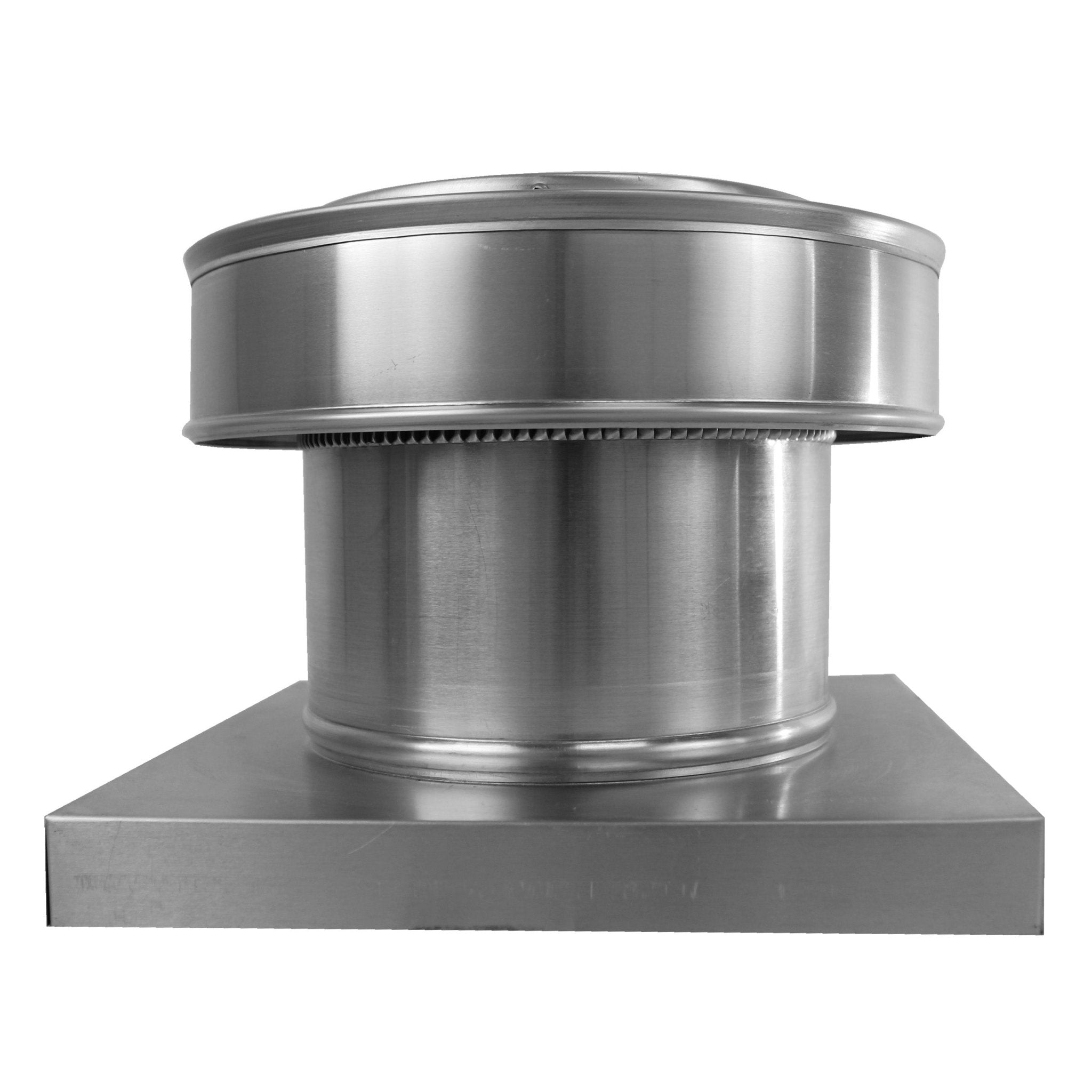

This 7-inch Round-Back Static Vent with Curb-Mount Flange is 7 inches in diameter with a 4-inch tall collar. In other words, this vent has 4 inches of clearance between the base and the inner louvers. The model RBV-7-C4-CMF has 38 inches of net-free area (NFA). All 7-inch static vents come with a standard 10.5 x 10.5-inch curb-mount flange.

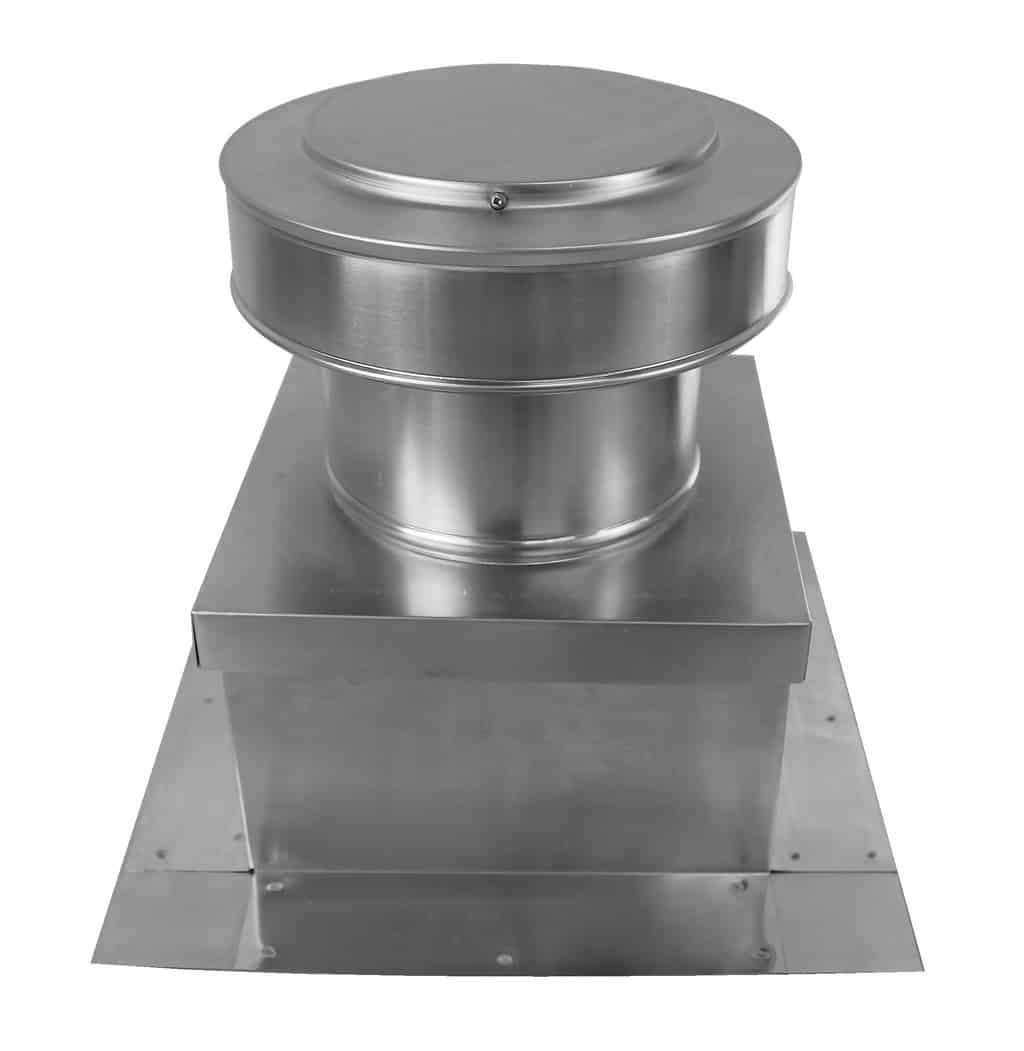

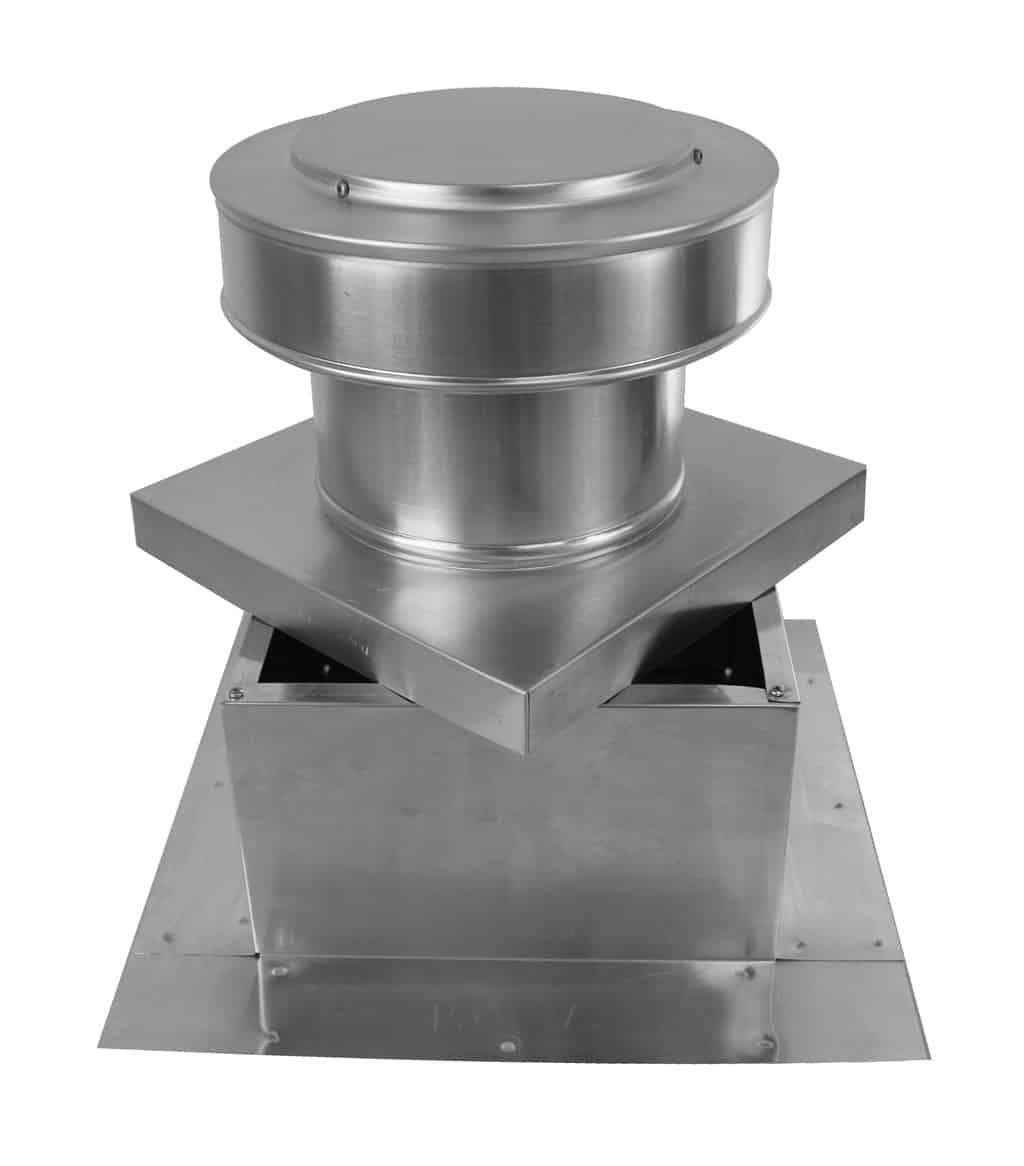

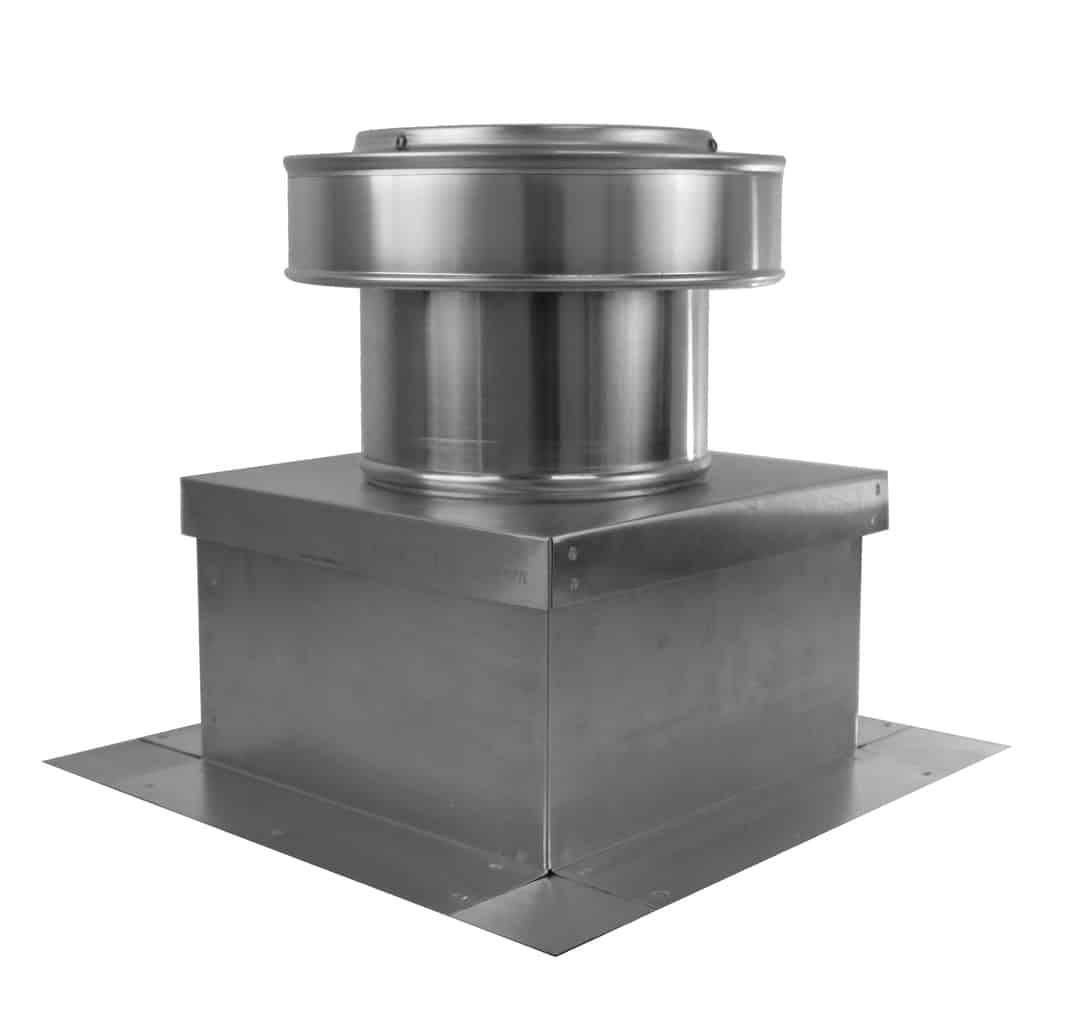

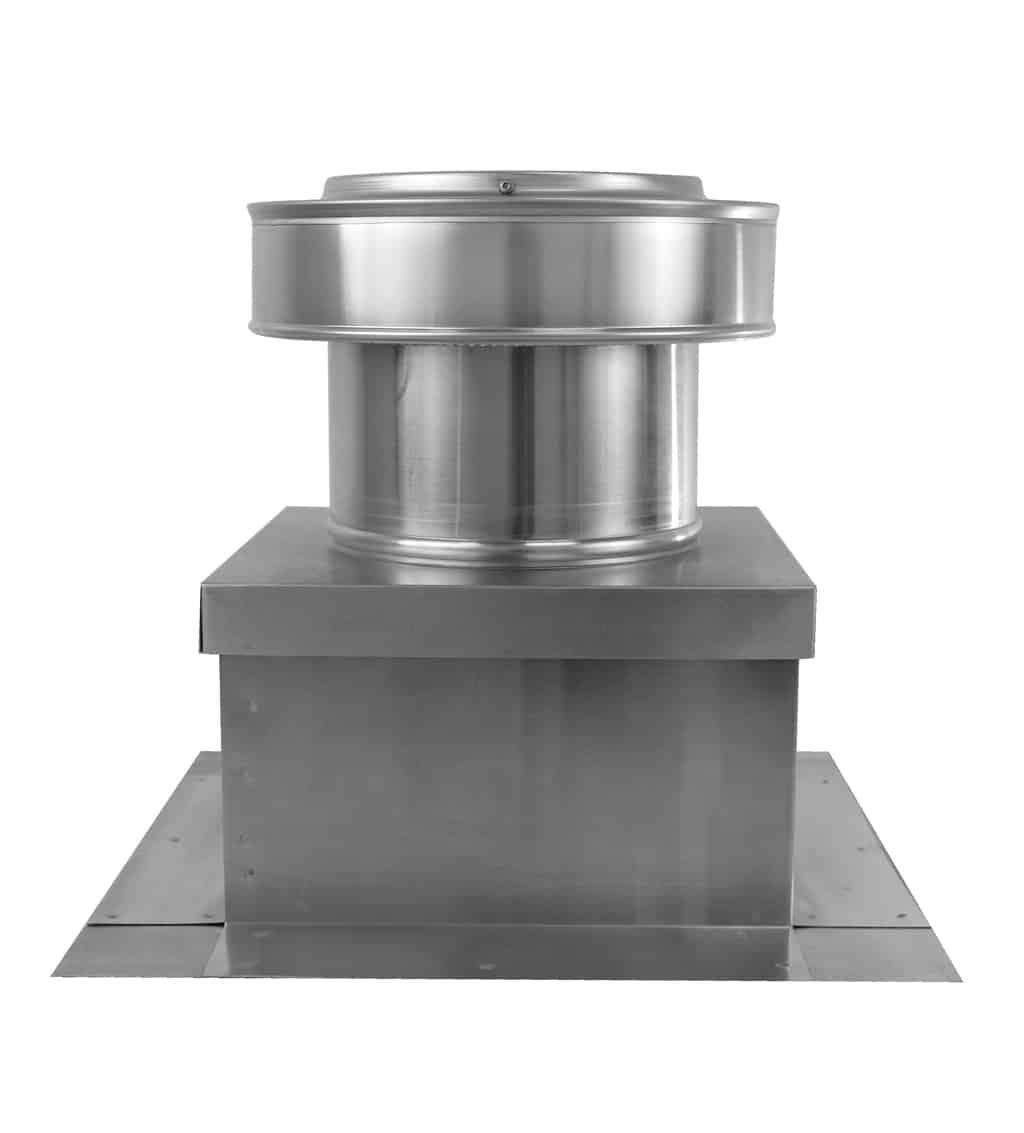

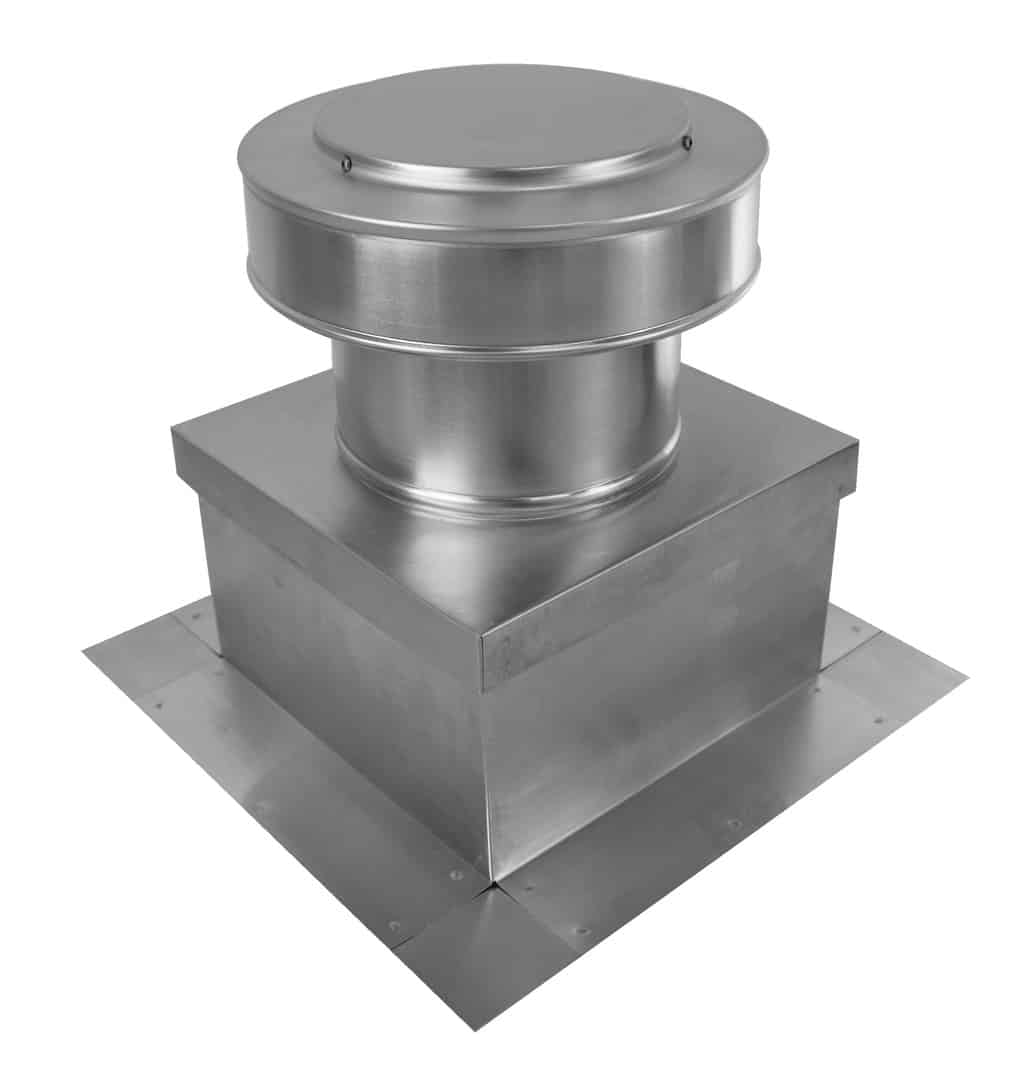

Installation: The Curb Mount Flange will only fit over a Roof Curb with a 10-inch outer diameter.
This Static Vent removes hot air from the attic in the summer and moisture in the winter for year-round ventilation. The flange will only fit over roof curbs or an existing base with a 10-inch diameter. This allows the roof vents to hatch the attic or duct below.

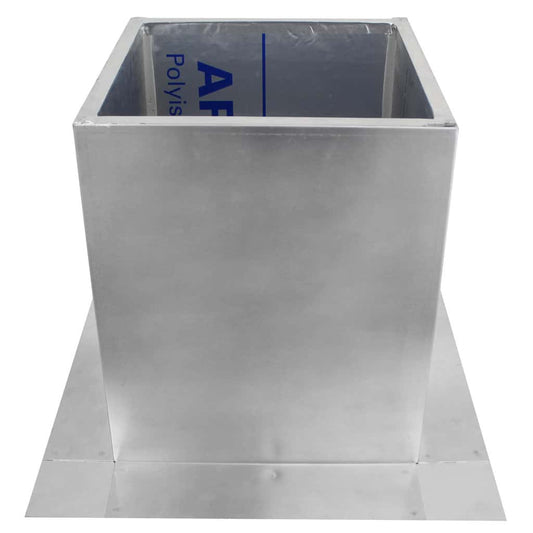

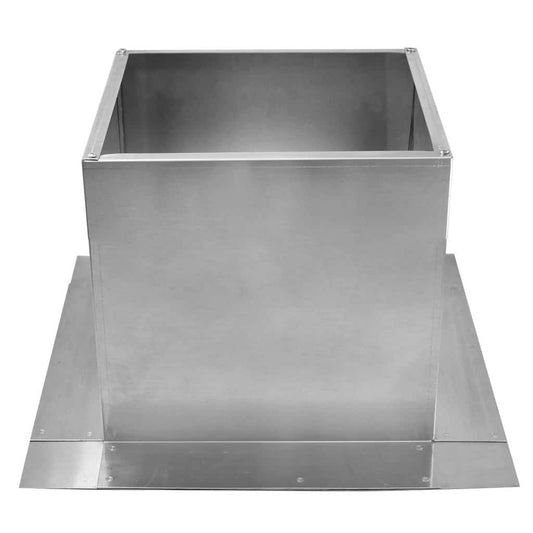

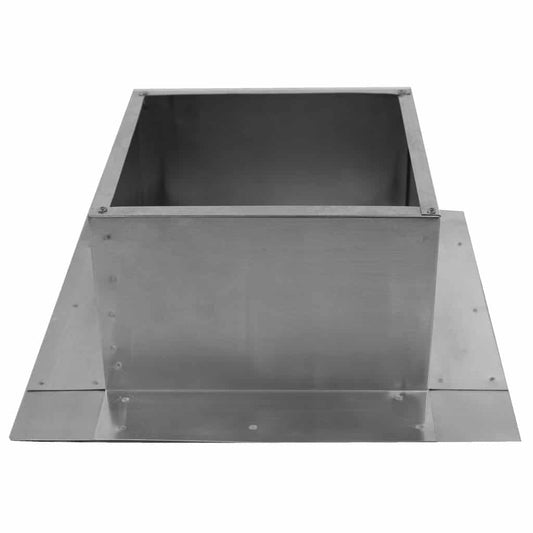

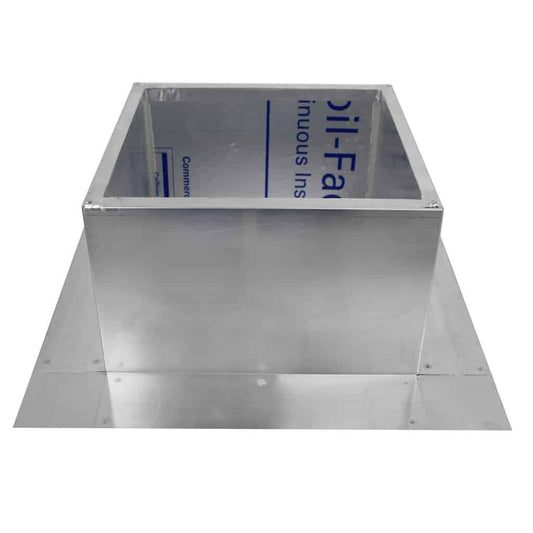

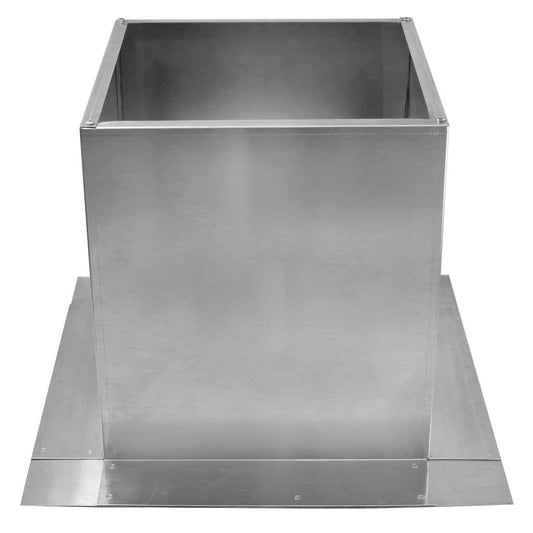

AVP's 7-inch static vents are compatible with the 6-inch and 12-inch tall roof curbs.
To determine the number of vents you may need, see our Vent Calculator.
How it works:
This static vent is ideal for venting out bathroom fans or range hoods. In addition, the round design is aerodynamic to withstand wind speeds up to 200 mph. The 7-inch Round Back Vent is great for residential roof applications because of its low profile. It can also be painted to match the color of the asphalt shingles.
AVP's Round Back Vents have the power to withstand hurricane-force winds. See some of our customer feedback. However, if you want to ventilate a duct, please see our Round Back Roof Jack for vents with a tailpipe adapter. On the other hand, AVP also offers Static Vents with flat flanges that are to be installed on asphalt shingle roofs with a pitch of 3/12 or greater.
For any questions, please see the frequently asked questions page. If you still have questions, email the sales team at sales@roofvents.com or call 845-565-7770
